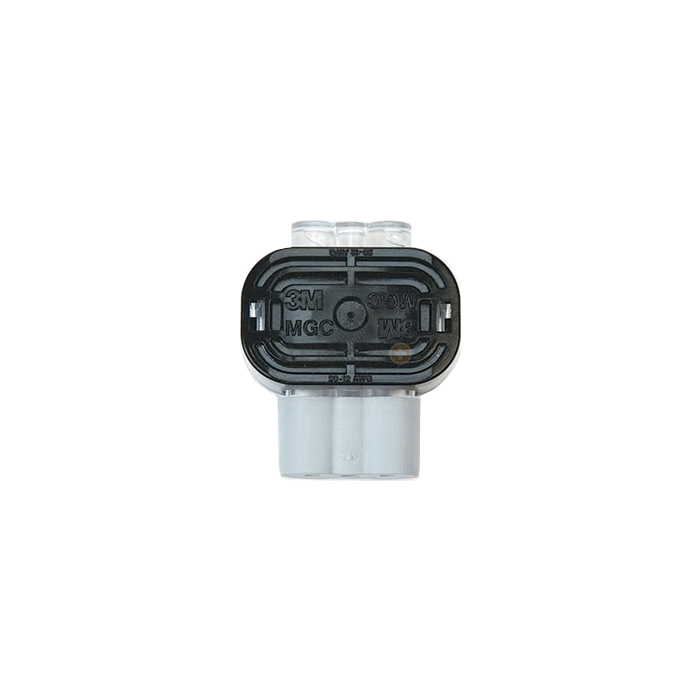

3M Scotchlok™ Moisture Guard Connector (MGC)

A moisture resistant connector that makes wire stripping a thing of the past.
  • Overview

    3M's Scotchlok™ Moisture Guard Connector (MGC) is a moisture-resistant connector that makes wire stripping a thing of the past. Simple and easy to use, it works with wires ranging from 20-12 awg. When installed, a metal element inside the MGC pushes through the wire insulation to making a secure, reliable connection. The grease inside the MGC protects the connection. The clear body of the connector is UV resistant for above ground applications.

    Ordering: Description Minimum Order
    MGC (25/bag) 3M Moisture Guard Connector, 25/Bag 250 pcs
    MGC (100/jug) 3M Moisture Guard Connector, 100/Jug 400 pcs

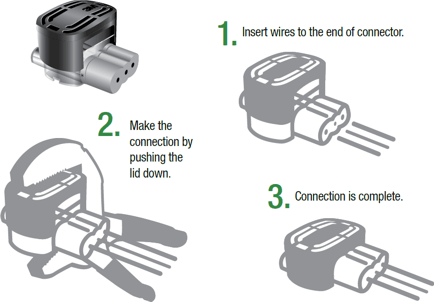

    Quick and Easy to Install

    Simply insert the wires, push the lid down on the connector using a standard set of slip joint pliers, and the connection is finished. Once the connection is complete, the grease inside makes it moisture resistant. No wire stripping is required.
