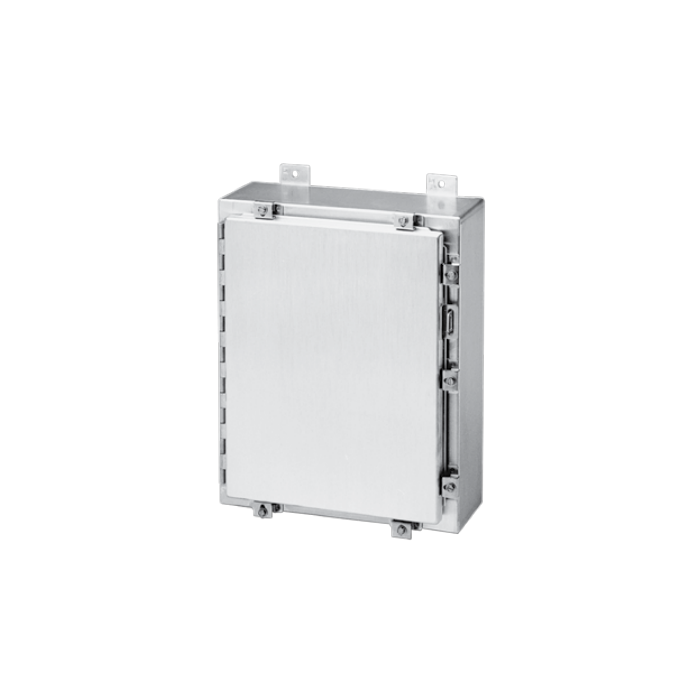

Aluminum Enclosures, NEMA 4X, for Cathodic Protection by Farwest Corrosion
Aluminum Enclosures, NEMA 4X, for Cathodic Protection by Farwest Corrosion
View larger image
chevron-left
chevron-right
search
Lightweight, Large Enclosure for Highly-corrosive Environments
Description
minus-circle
plus-circle
Lightweight aluminum enclosures protects components and controls in corrosive indoor or outdoor environments.
Specifications
Type 5052 H-32 aluminum Seams continuously welded and ground smooth Rolled lip around three sides of door and all sides of enclosure opening Stainless steel door clamp assemblies Door is easily removed by pulling stainless steel continuous hinge pin Data pocket is high-impact thermoplastic Hasp and staple for padlocking Panel screws are plated Tapped pads provided for mounting optional panels Oil-resistant gasket
Finish Enclosures are unpainted. Door fronts have smooth brushed finish. Accessories
Fast-Operating Clamp Assembly
Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
Rack Mounting Angle Kit - L Style
Junction Box and Wall-Mount Enclosure Swing-Out Panel Kit
Terminal Block Kit Assembly for Type 4, 12 and 13 Enclosures
Steel and Stainless Steel Window Kits
Drawings
minus-circle
plus-circle
Drawings
Catalog AxBxC Alum. Steel Cond. Panel Size DxE Numb. of F Numb. Data Pocket Size
A16H1206ALLP 16.00x12.00x6.00 406 x 305 x 152 A16P12AL A16P12 A16P12G 13.00x9.00 4 1.25 4 6.00 x 6.00
A20H1606ALLP 20.00 x 16.00 x 6.00 508 x 406 x 152 A20P16AL A20P16 A20P16G 17.00x13.00 4 3.00 4
6.00 x 6.00 152 x 152
A20H2006ALLP 20.00x20.00x6.00 508 x 508 x 152 A20P20AL A20P20 A20P20G 17.00x17.00 4 3.00 4 6.00 x 6.00
A24H2006ALLP 24.00x20.00x6.00 610 x 508 x 152 A24P20AL A24P20 A24P20G 21.00x17.00 4 3.00 5 6.00 x 6.00
A16H1608ALLP 16.00x16.00x8.00 406 x 406 x 203 A16P16AL A16P16 A16P16G 13.00x13.00 4 3.00 4 6.00 x 6.00
A24H2408ALLP 24.00x24.00x8.00 610 x 610 x 203 A24P24AL A24P24 A24P24G 21.00x21.00 4 3.00 5 6.00 x 6.00
A30H2408ALLP 30.00x24.00x8.00 762 x 610 x 203 A30P24AL A30P24 A30P24G 27.00x21.00 6 3.00 5 12.00 x 12.00
A36H2408ALLP 36.00x24.00x8.00 914 x 610 x 203 A36P24AL A36P24 A36P24G 33.00x21.00 838x533 6 3.00 5 12.00 x 12.00
A36H3008ALLP 36.00x30.00x8.00 914 x 762 x 203 A36P30AL A36P30 A36P30G 33.00x27.00 6 3.00 7 12.00 x 12.00
A48H3608ALLP 48.00x36.00x8.00 1219 x 914 x 203 A48P36AL A48P36 A48P36G 45.00x33.00 8 3.00 8 12.00 x 12.00
A20H1610ALLP 20.00x16.00x10.00 508 x 406 x 254 A20P16AL A20P16 A20P16G 17.00x13.00 4 3.00 4 12.00 x 12.00
A24H2010ALLP 24.00x20.00x10.00 610 x 508 x 254 A24P20AL A24P20 A24P20G 21.00x17.00 4 3.00 5 12.00 x 12.00
A30H2412ALLP 30.00x24.00x12.00 762 x 610 x 305 A30P24AL A30P24 A30P24G 27.00x21.00 6 3.00 5 12.00 x 12.00
A36H3012ALLP 36.00x30.00x12.00 914 x 762 x 305 A36P30AL A36P30 A36P30G 33.00x27.00 6 3.00 7 12.00 x 12.00
A60H3612ALLP 60.00x36.00x12.00 1524 x 914 x 305 A60P36AL A60P36 A60P36G 57.00x33.00 8 3.00 9 12.00 x 12.00
Purchase panels separately Purchase perforated panels separately
