For Seawater Application. Designed to Mount to Submerged Surfaces: Hulls, Piles, Piping & More
Description
Aluminum anodes have long been used in the fight against corrosion. Applications for aluminum anodes include ship hulls, tank interiors, offshore structures, submerged pipelines, piers, pilings, etc.

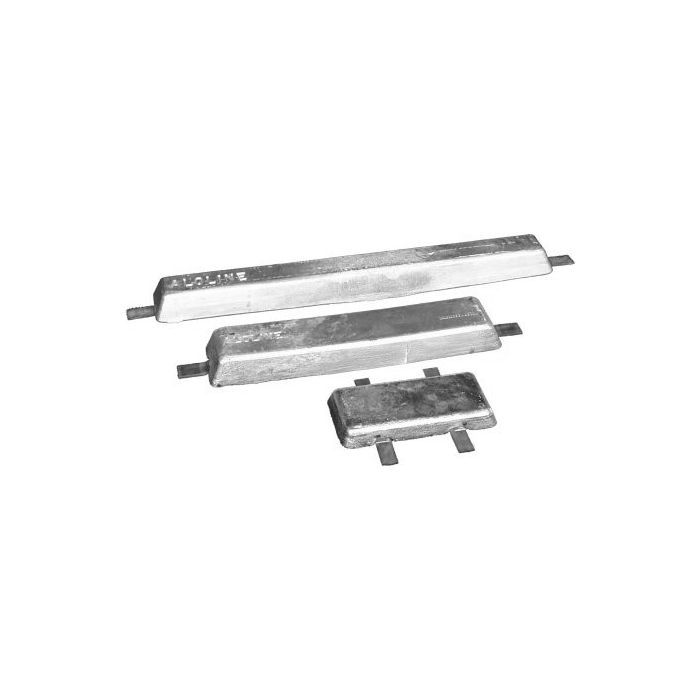

ALOLINE aluminum anodes are designed for optimum performance under a variety of environmental conditions and temperature ranges. Cast in different sizes and weights, ALOLINE anodes provide maximum performance in seawater and brackish environments.
Typical Chemical Composition
Element
Percentage
Indium (In) Zinc (Zn) Silicon (Si) Copper (Cu) Iron (Fe) Cadmium (Cd) Others, each Others, total Aluminum
0.016 to 0.02% 4.75 to 5.75% 0.08 to 0.12% 0.003% Maximum 0.12% Maximum 0.002% Maximum 0.02% Maximum 0.05% Maximum Remainder
1150 amp hours per pound (Minimum) 1.080 volts (Minimum) 7.6 pounds per amp year
Available Sizes All dimensions are approximate
Aluminum anodes are available in many different shapes, weights, and core configurations. While many of these configurations are listed in the following charts, many more anodes are available but not shown.
For assistance selecting the appropriate anode, contact a Farwest customer service representative for assistance.

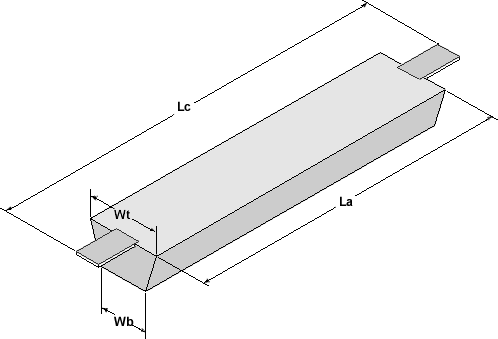

Anode Number
Weight (lbs)
Length (in)
Width (in)
Height
Core Dimensions (in)
Alum.
Core
La
Lc
Wb
Wt
H (in)
10FM
9
1
12
16
2½
3½
2½
3/16 x1¼
20FM
18
2
20
25
3
4½
2½
3/16 x1½
29FM
26
3
24
29
4½
5½
2½
3/16 x1½
37FM
34
3
36
41
3
5
2½
3/16 x1½
94FM
87
7
54½
62
4
4½
3¾
1/4" x 1½
110FM
101
9
77
84
4
4½
3 3/8
1/4" x 1½
144FM
135
9
72
84
7
8
3
1/4" x 1½
270FM
245
25
90
102
6¾
7¼
4
1/4" x 2½

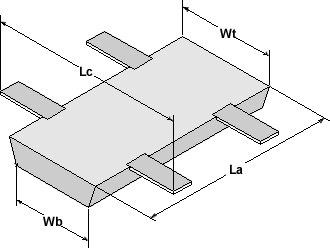

Anode Number
Weight (lbs)
Length (in)
Width (in)
Height
Core Dimensions (in)
Alum.
Core
La
Lc
Wb
Wt
H (in)
11FM
9
2
12
10
5
6
1½
3/16 x1¼
40FM
35
5
18
17
9
9
2¼
1/4 x 2
61FM
56
5
18
17
9
9
3 5/8
1/4 x 2
80FM
76
4
48
10
4
4
4
1/4" x 1½
95FM
91
4
72
13¾
7
7¾
2
1/4" x 1½
144FM
140
4
72
14
7
8
3
1/4" x 1½
284FM
280
4
72
14
7
8
6
1/4" x 2½

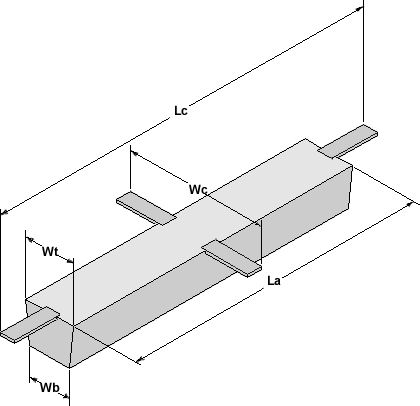

Anode Number
Weight (lbs)
Length (in)
Width (in)
Height
Core Dimensions (in)
Alum.
Core
La
Lc
Wb
Wt
Wc
H (in)
158FM
140
18
40
52
5¾
6¾
18¾
5½
3/8 x 2
237FM
212
25
60
68
5¾
6¾
12¾
6
1/2 x 2
Description
Aluminum anodes have long been used in the fight against corrosion. Applications for aluminum anodes include ship hulls, tank interiors, offshore structures, submerged pipelines, piers, pilings, etc.
ALOLINE aluminum anodes are designed for optimum performance under a variety of environmental conditions and temperature ranges. Cast in different sizes and weights, ALOLINE anodes provide maximum performance in seawater and brackish environments.
Typical Chemical Composition
Element
Percentage
Indium (In) Zinc (Zn) Silicon (Si) Copper (Cu) Iron (Fe) Cadmium (Cd) Others, each Others, total Aluminum
0.016 to 0.02% 4.75 to 5.75% 0.08 to 0.12% 0.003% Maximum 0.12% Maximum 0.002% Maximum 0.02% Maximum 0.05% Maximum Remainder
1150 amp hours per pound (Minimum) 1.080 volts (Minimum) 7.6 pounds per amp year
Available Sizes All dimensions are approximate
Aluminum anodes are available in many different shapes, weights, and core configurations. While many of these configurations are listed in the following charts, many more anodes are available but not shown.
For assistance selecting the appropriate anode, contact a Farwest customer service representative for assistance.
