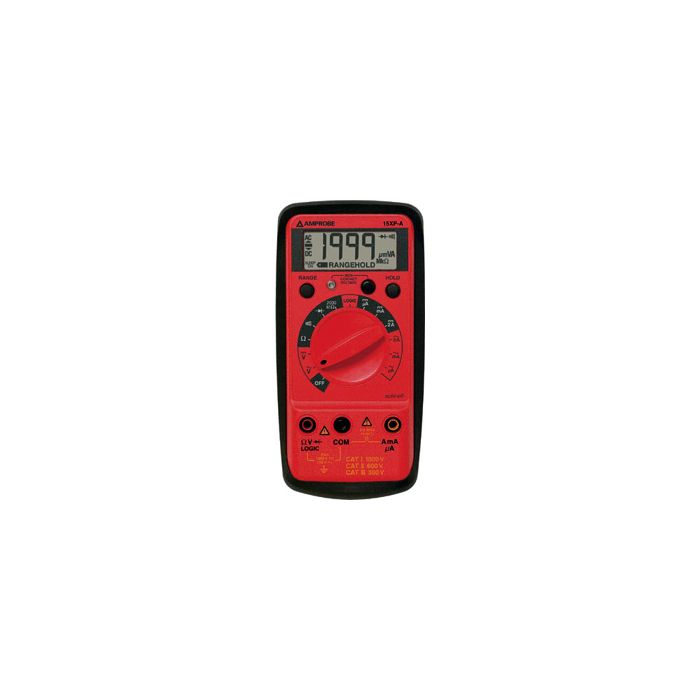

Amprobe 15XP-A Digital Multimeter

A compact digital multimeter for electronics & test applications. Rated for 750 VAC / 1000 VDC.

Description

Amprobe’s 15XP-A Digital Multimeter is compact and highly capable DMM for electronics and test applications. The 15XP-A is the right DMM choice for electronics engineers, technicians and field service.
Features
- 750 VAC / 1000 VDC - highest voltage ratings in this size digital multimeter.
- Special 2000 MΩ measurement range.
- 3-1/2 digit liquid crystal display (LCD) reading to 1999
- Autoranging display for faster measurements.
- Automatic polarity, positive implied, negative polarity indicated.
- TTL logic test for digital circuits.
- Diode test for component level troubleshooting.
- Data Hold freezes display to capture readings.
- Integrated tilt stand for easy bench use.
- Powered by single 9V battery.
- Wide choice of Amprobe multimeter accessories

Specifications

DC Voltage Ranges	200 mV, 2 V, 20 V, 200 V, 1000 V
DC Voltage Accuracy	± 1.0% rdg ± 1 digit
AC Voltage Ranges	200 mV, 2 V, 20 V, 200 V, 750 V (45-100 Hz)
AC Voltage Accuracy	± 1.5% rdg ± 5 digits
Voltage Resolution	100 µV
Voltage Input Impedance	400 mV: >100 MΩ; 4 V: 10 MΩ; 40 V to 1000 V: 9.1 MΩ
Voltage Overload Protection	1000 VDC or 750 VAC rms
DC Current Ranges	200 μA, 2000 μA, 20 mA, 200 mA, 2A
DC Current Accuracy	± 1.5% rdg ± 1 digit
AC Current Ranges	200 μA, 2000 μA, 20 mA, 200 mA, 2A
AC Current Accuracy	± 2.0% rdg ± 5 digits
Current Resolution	0.1 µA
Current Overload Protection	2A/1000 V fast blow ceramic fuse, 6.3 x 32 mm on A input.
Resistance Ranges	200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ, 2000 MΩ,
Resistance Resolution	100 mΩ
Continuity Test	Audible indication at < 25 Ω in 100 ms
Diode Test	1.2 mA, 3.0 Vdc
Logic Test	TTL levels to 20 MHz, 25 ns minimum pulse width
Non-Contact Voltage Indicator	Sense voltage 70 V to 600 Vac (50-60 Hz). Beeper chirps and red LED comes on. Works on all ranges.
Display	3-1/2 digit (1999 count) LCD display
Polarity	Automatic, positive implied, negative indicated.
Overrange	Overload displays (OL) or (-OL)
Zero	Automatic
Low Battery Indication	Battery symbol is displayed.
Auto Power Off	In approximately 10 minutes
Measurement Rate	2 times per second
Operating Temperature	0°C to 50°C (32°F to 122°F) at < 70% RH
Storage Temperature	-20°C to 60°C, < 80% RH (with battery removed)
Altitude	Operation below 2000 m. Indoor use.
Power Supply	Standard 9V battery, NEDA 1604, JIS 006P, IEC 6F22
Battery Life	200 hours typical with carbon-zinc
Dimensions	155 x 72 x 32 mm (6.1 x 2.8 x 1.3 in)
Weight	210 g (7.4 oz)
Warranty	1 year

Included Accessories

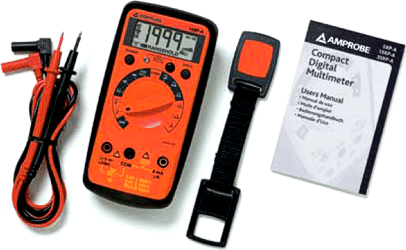

Pair of test leads (TL245A), fuse 2 A/1000 V (P/N FP200), 9 V battery (installed), Magne-Grip™ holster with magnetic hanging strap, users manual.

Other Accessories

VC30A

Carrying Case

DL243D

Test Lead Kit

Description

Amprobe’s 15XP-A Digital Multimeter is compact and highly capable DMM for electronics and test applications. The 15XP-A is the right DMM choice for electronics engineers, technicians and field service.

Features

750 VAC / 1000 VDC - highest voltage ratings in this size digital multimeter.
Special 2000 MΩ measurement range.
3-1/2 digit liquid crystal display (LCD) reading to 1999
Autoranging display for faster measurements.
Automatic polarity, positive implied, negative polarity indicated.
TTL logic test for digital circuits.
Diode test for component level troubleshooting.
Data Hold freezes display to capture readings.
Integrated tilt stand for easy bench use.
Powered by single 9V battery.
Wide choice of Amprobe multimeter accessories

Specifications

DC Voltage Ranges	200 mV, 2 V, 20 V, 200 V, 1000 V
DC Voltage Accuracy	± 1.0% rdg ± 1 digit
AC Voltage Ranges	200 mV, 2 V, 20 V, 200 V, 750 V (45-100 Hz)
AC Voltage Accuracy	± 1.5% rdg ± 5 digits
Voltage Resolution	100 µV
Voltage Input Impedance	400 mV: >100 MΩ; 4 V: 10 MΩ; 40 V to 1000 V: 9.1 MΩ
Voltage Overload Protection	1000 VDC or 750 VAC rms
DC Current Ranges	200 μA, 2000 μA, 20 mA, 200 mA, 2A
DC Current Accuracy	± 1.5% rdg ± 1 digit
AC Current Ranges	200 μA, 2000 μA, 20 mA, 200 mA, 2A
AC Current Accuracy	± 2.0% rdg ± 5 digits
Current Resolution	0.1 µA
Current Overload Protection	2A/1000 V fast blow ceramic fuse, 6.3 x 32 mm on A input.
Resistance Ranges	200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ, 2000 MΩ,
Resistance Resolution	100 mΩ
Continuity Test	Audible indication at < 25 Ω in 100 ms
Diode Test	1.2 mA, 3.0 Vdc
Logic Test	TTL levels to 20 MHz, 25 ns minimum pulse width
Non-Contact Voltage Indicator	Sense voltage 70 V to 600 Vac (50-60 Hz). Beeper chirps and red LED comes on. Works on all ranges.
Display	3-1/2 digit (1999 count) LCD display
Polarity	Automatic, positive implied, negative indicated.
Overrange	Overload displays (OL) or (-OL)
Zero	Automatic
Low Battery Indication	Battery symbol is displayed.
Auto Power Off	In approximately 10 minutes
Measurement Rate	2 times per second
Operating Temperature	0°C to 50°C (32°F to 122°F) at < 70% RH
Storage Temperature	-20°C to 60°C, < 80% RH (with battery removed)
Altitude	Operation below 2000 m. Indoor use.
Power Supply	Standard 9V battery, NEDA 1604, JIS 006P, IEC 6F22
Battery Life	200 hours typical with carbon-zinc
Dimensions	155 x 72 x 32 mm (6.1 x 2.8 x 1.3 in)
Weight	210 g (7.4 oz)
Warranty	1 year
