A manual ranging digital multimeter for AC & DC voltage to 600V, AC & DC current to 10A, plus non-contact voltage test capability.
Description

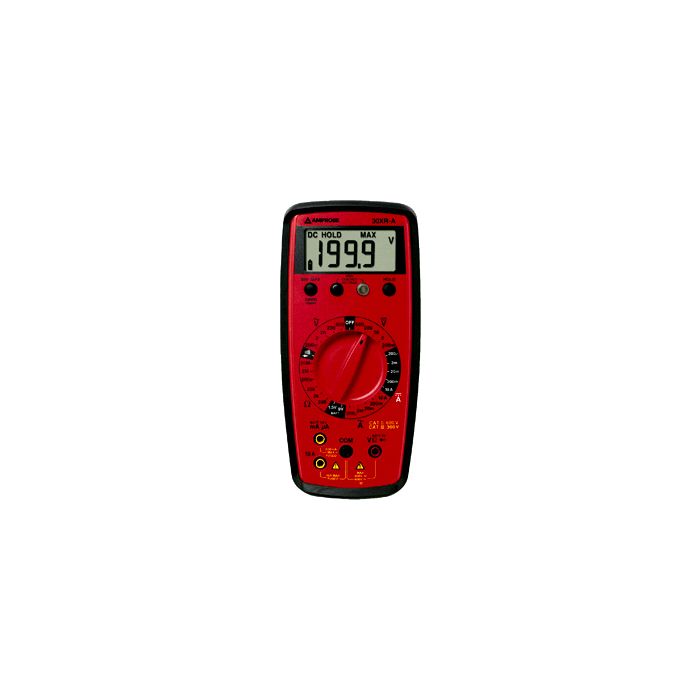

The Amprobe 30XR-A digital multimeter (DMM) features five AC & DC voltage ranges to 600V, five AC & DC current ranges to 10A, resistance ranges to 20 MΩ, diode test, continuity test, and test of 1.5V and 9V batteries under load. VolTect™ non-contact voltage (NVC) is an additional feature (as illustrated to the right).
Features
Non-contact voltage tester to 600 VAC
Magne-Grip™ Holster with magnetic hanging strap
600 V AC/DC
0 Amps AC/DC, fully safety fused
Resistance to 20 MΩ
Continuity beeper
1.5 V / 9 V battery test under load
Min/Max and Data Hold
Separate door for easy battery and fuse access
One-year warranty
Wide choice of Amprobe multimeter accessories
Specifications
DC Voltage Ranges
200 mV, 2 V, 20 V, 200 V, 600 V
DC Voltage Accuracy
± 1.0% rdg ± 1 digit
AC Voltage Ranges
200 mV, 2 V, 20 V, 200 V, 600 V (45-100 Hz)
AC Voltage Accuracy
± 1.5% rdg ± 4 digits
Voltage Resolution
100 µV
Voltage Input Impedance
10 MΩ
Voltage Overload Protection
600 V DC or 600 V AC RMS
DC Current Ranges
200 μA, 2000 μA, 20 mA, 200 mA, 10 A
DC Current Accuracy
± 2.0% rdg ± 3 digits
AC Current Ranges
200 μA, 2000 μA, 20 mA, 200 mA, 10 A
AC Current Accuracy
± 2.0% rdg ± 4 digits (45-500 Hz)
Current Resolution
0.1 µA
Current Overload Protection
Fast-blow ceramic fuse
Resistance Ranges
200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ, 20 MΩ
Resistance Resolution
100 mΩ
Continuity Test
Audible indication at < 75 Ω in 100 ms
Diode Test
1.0 mA, 3.0 Vdc
Battery Test
150 mA load current for 1.5V battery, 5 mA load current for 9V battery
Non-Contact Voltage Indicator
Sense voltage 70 V to 600 Vac (50-60 Hz). Beeper chirps and red LED comes on. Works on all ranges.
Display
3-1/2 digit (1999 count) LCD display
Measurement Rate
2.5 times per second
Operating Temperature
0°C to 45°C (32°F to 113°F) at < 70% RH
Storage Temperature
-20°C to 60°C, < 80% RH (with battery removed)
Power Supply
9V battery, NEDA 1604, JIS 006P, IEC 6F22
Battery Life
200 hours typical with carbon-zinc
Dimensions
196 x 92 x 60 mm (7.7 x 3.5 x 2.4 in)
Weight
426 g (0.94 lb)
Included Accessories
Test leads (TL36A), 9 V battery (installed), Magne-Grip™ Holster with magnetic hanging strap, spare fuse, users manual.
Optional Accessories
VC221B
Padded Vinyl Carrying Case
DL248D
Deluxe Test Lead Kit
DC207C
Heavy Duty Case
HV231-10A
High Voltage Probe
TC253A
Temperature Adapter
TP254A
High Temperature Probe
