Manual ranging digital multimeter for AC voltage to 750V, DC voltage to 1000V,
AC & DC current to 10A, plus resistance, capacitance, temperature & more.
Description

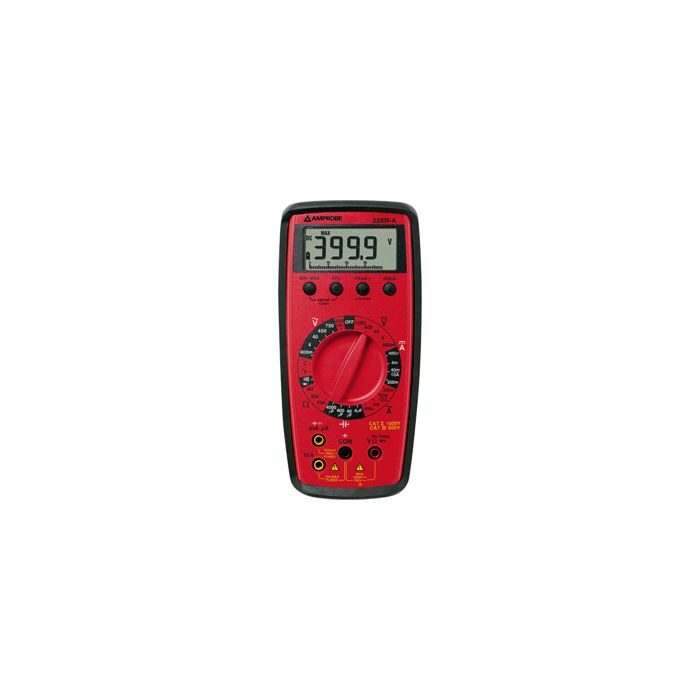

The Amprobe 33XR-A digital multimeter (DMM) features five AC voltage ranges to 750V, five DC voltage ranges to 1000V, five AC & DC current ranges to 10A, resistance ranges to 4 MΩ, diode test, frequency measurement to 40 MHz, temperature measurement to 1000°C (1832°F), and continuity test.
Features
1000 VDC / 750 VAC
10 Amps AC/DC, fully safety fused
Resistance to 4 MΩ
Frequency to 40 MHz
Temperature to 1000°C (1832°F)
Capacitance to 4000 μF
Diode test
Continuity test with beeper
Input warning tone when test leads are in wrong jack
Min/Max, Relative, Peak and Data Hold
41-segment bar graph
Separate door for easy battery and fuse access
Magne-Grip™ Holster with magnetic hanging strap
One-year warranty
Wide choice of Amprobe multimeter accessories
Specifications
DC Voltage Ranges
400 mV, 4 V, 40 V, 400 V, 1000 V
DC Voltage Accuracy
± 0.7% rdg ± 1 digit
AC Voltage Ranges
400 mV, 4 V, 40 V, 400 V, 750 V (45-500 Hz)
AC Voltage Accuracy
± 2.0% rdg ± 4 digits
Voltage Resolution
100 µV
Voltage Input Impedance
10 MΩ
Voltage Overload Protection
1000 V DC or 750 V AC RMS
DC Current Ranges
400 μA, 4 mA, 40 mA, 300 mA, 10 A
DC Current Accuracy
± 1.0% rdg ± 1 digit
AC Current Ranges
400 μA, 4 mA, 40 mA, 300 mA, 10 A
AC Current Accuracy
± 1.5% rdg ± 4 digits (45-500 Hz)
Current Resolution
0.1 µA
Current Overload Protection
Fast-blow ceramic fuse
Resistance Ranges
400 Ω, 40 kΩ, 40 MΩ
Resistance Resolution
100 mΩ
Continuity Test
Audible indication at < 35 Ω in 100 ms
Frequency Ranges
4 kHz, 40 kHz, 400 kHz, 4 MHz, 40 MHz
Capacitance Ranges
4 µF, 40 µF, 400 µF, 4000 µF
Diode Test
1.0 mA, 3.0 Vdc
Display
3-3/4 digit (3999 count) LCD display
Measurement Rate
2.5 times per second
Operating Temperature
0°C to 45°C (32°F to 113°F) at < 70% RH
Storage Temperature
-20°C to 60°C, < 80% RH (with battery removed)
Power Supply
9V battery, NEDA 1604, JIS 006P, IEC 6F22
Battery Life
300 hours typical with alkaline
Dimensions
196 x 92 x 60 mm (7.7 x 3.5 x 2.4 in)
Weight
400 g (0.9 lb) with battery
Included Accessories
Test leads with threaded alligator clips (TL36A), 9V battery (installed), Magne-Grip™ Holster with magnetic hanging strap, temperature adapter (TA-1), Type-K thermocouple probe (TP255A), spare fuse, users manual
Optional Accessories
VC221B
Padded Vinyl Carrying Case
DL248D
Deluxe Test Lead Kit
DC207C
Heavy Duty Case
HV231-10A
High Voltage Probe
TC253A
Temperature Adapter
TP254A
High Temperature Probe
