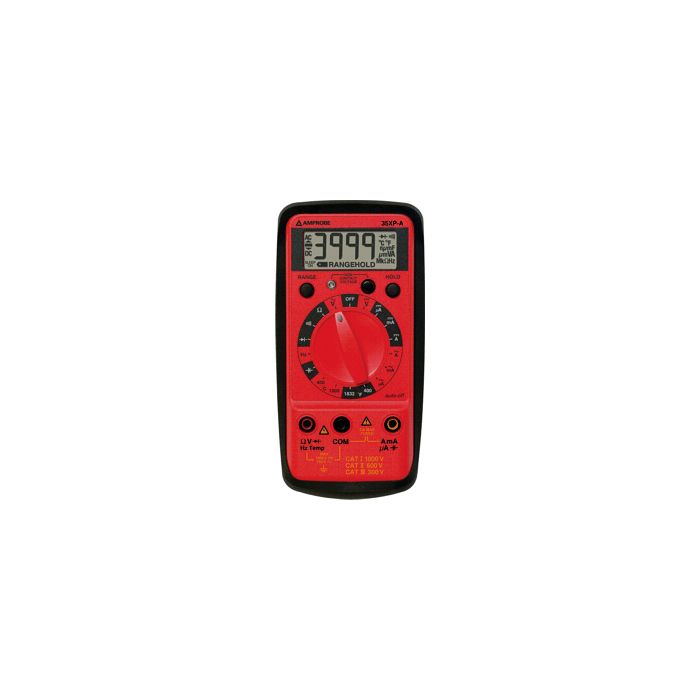

Amprobe 35XP-A Digital Multimeter

Compact, full-featured digital multimeter for plant maintenance, HVAC, electrical & electronic testing. AC voltage to 750V, DC voltage to 1000V, AC & DC current to 2A, plus resistance, capacitance, temperature & more.

Description

The Amprobe 35XP-A digital multimeter (DMM) is a full-featured handheld multimeter for most plant maintenance, HVAC, electrical and electronic applications. It features five AC voltage ranges to 750V, five DC voltage ranges to 1000V, five AC & DC current ranges to 2A, resistance ranges to 40 MΩ, frequency measurement to 1 MHz, temperature measurement to 1000°C (1832°F), diode test, continuity test, VolTect™ non-contact voltage measurement, more.
Features
- Temperature measurements to 1000°C (1832°F)
  (Type K thermocouple included)
- 750 VAC / 1000 V DC - highest voltage rating in this class of meter
- Capacitance measurement for motor run/start test
- 0.1 μA resolution for flame sensor testing
- Frequency measurement to 1 MHz
- Resistance measurement to 40 MΩ
- Data Hold freezes display
- Magne-Grip™ holster
- VolTect™ non-contact voltage detector
- Triple safety ratings
- Wide choice of Amprobe multimeter accessories

Specifications

DC Voltage Ranges	1000 mV, 10V, 100V, 1000V
DC Voltage Accuracy	± 0.25% rdg ± 5 digits
AC Voltage Ranges	1000 mV, 10V, 100V, 750V (45-2 kHz)
AC Voltage Accuracy	± 1.2% rdg ± 10 digits (except 750V) (45-500 Hz)
Voltage Resolution	100 µV
Voltage Input Impedance	400 mV: >100 MΩ, 4V: 10 MΩ, 40V to 1000V: 9.1 MΩ
Voltage Overload Protection	1000 VDC or 750 VAC RMS
DC Current Ranges	100 μA, 1000 μA, 10 mA, 100 mA, 400 mA, 10A
DC Current Accuracy	± 0.5% rdg ± 10 digits (± 1.5% rdg ± 10 digits for 10A range)
AC Current Ranges	100 μA, 1000 μA, 10 mA, 100 mA, 400 mA, 10A
AC Current Accuracy	± 2.0% rdg ± 10 digits (± 2.5% rdg ± 20 digits for 10A range)
Current Resolution	0.01 µA
Current Overload Protection	Fast-blow ceramic fuse
True RMS, AC Coupled	5% to 100% of range
Resistance Ranges	1000 Ω, 10 kΩ, 100 kΩ, 1000 kΩ, 10 MΩ, 40 MΩ
Capacitance Ranges	40 nF, 400 nF, 4 µF, 40 µF, 400 µF
Inductance Ranges	4 mH, 40 mH, 400 mH, 4 H, 40 H
Frequency Ranges	100 Hz, 1000 Hz, 10 kHz, 100 kHz, 1000 kHz, 10 MHz
Duty Cycle Measurement	0% to 90%, 5V logic, 40 Hz to 20 kHz
Temperature Measurement	-120 t0 1300°F (-4 t0 +2372°F)
Logic Test	TTL, CMOS, to 20 MHz
4-20 mA Current Loop Test	0-100% of span
dBm Measurement	-13 dBm to +50 dBm, 45 Hz to 20 kHz
Continuity Test	Audible indication at < 40 Ω in 100 ms
Diode Test	1.0 mA, 3.0 Vdc
Display	4-3/4 digit (10000 count) LCD display plus 41-segment bar graph
Measurement Rate	2 times per second
Operating Temperature	0°C to 45°C (32°F to 113°F) at < 70% RH
Storage Temperature	-20°C to 60°C, < 80% RH (with battery removed)
Power Supply	9V battery, NEDA 1604, JIS 006P, IEC 6F22
Battery Life	150 hours typical with alkaline
Dimensions	196 x 96 x 60 mm (7.8 x 3.55 x 2.4 in)
Weight	400 g (0.9 lb) with battery

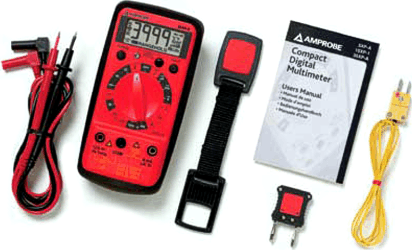

Included Accessories

Pair of test leads (TL245A), K-type thermocouple (TP255A), temperature adapter (XR-TA), fuse 2 A/ 1000 V (P/N FP200), 9 V battery (installed), Magne-Grip™ holster with magnetic hanging strap (H2-XR), and users manual.

Optional Accessories

VC30A

Carrying Case

DL243D

Test Lead Kit
