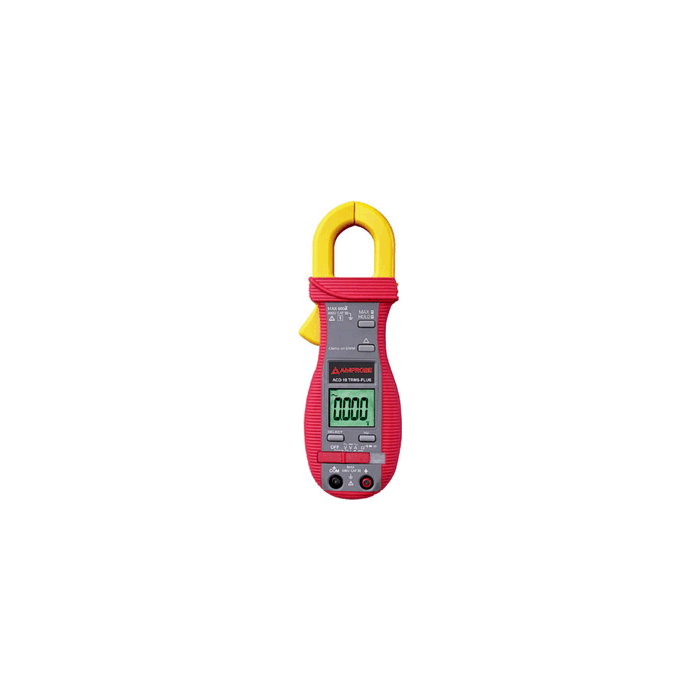

Amprobe ACD-10 TRMS-PLUS True RMS 600A Clamp-On Multimeter

True RMS clamp-on multimeter for AC & DC voltage to 600V, AC current to 600A, plus ohms, capacitance & frequency.

Description

Amprobe’s ACD-10 TRMS-PLUS meter offer thinner jaws over standard clamp meters, allowing access to tight measurement areas and still accommodating conductors up to 25 mm. Both meters also measure Capacitance and Frequency. Frequency is measured by either jaws or test leads. Very versatile clamp multimeters. True RMS version for noisy measurement environments for a more accurate reading.
Features
- True RMS (TRMS) voltage & current measurement
- AC & DC Voltage to 600V
- AC Current to 600A
- Thin Jaws only 10 mm (0.4”) thick
- Resistance to 40 MΩ
- Continuity Buzzer
- Capacitance to 3000 µF
- Frequency measurement
- Inrush current
- Hold & Maximum reading functions
- Accommodates conductors up to 26 mm (1.02”) in diameter
- Auto ranging
- Auto power off
- Rubber over-molded case
- Overload protected
- Included Accessories: Test leads, battery installed, soft carrying pouch, users manual
- Wide choice of Amprobe multimeter accessories

Specifications

DC Voltage Ranges	400.0 mV, 4.000, 40.00, 400.0 V, 600 V
DC Voltage Accuracy	± 0.5% rdg ± 3 digits (± 1.0% rdg ± 4 digits on 600V scale)
AC Voltage Ranges	4.000, 40.00, 400.0 V, 600 V
AC Voltage Accuracy	± 1.5% rdg ± 5 digits (± 2.0% rdg ± 5 digit on 600V scale)
AC Crest Factor	< 1.75 : 1 at full scale limited to fundamental and harmonics, that fall within the meter specified AC bandwidth for non-sinusoidal waveforms.
Input Impedance	10 MΩ
Transient Protection	6.5 kV (1.2 / 50 μs surge)
AC Current (clamp-on)	40.00, 400.0, 600 A
True RMS Sensing	10% to 200% of range
Overload Protection	600A rms continuous
Resistance Ranges	400.0 Ω, 4.000, 40.00, 400.0 kΩ, 4.000 MΩ, 40.00 MΩ
Frequency Ranges	0 Hz to 100 kHz (depending on signal type)
Capacitance Ranges	500.0 nF, 5.000 μF, 50.00 μF, 500.0 μF, 3000 μF
Diode Test	< 1.6 VDC @ 0.25 mA
Audible Continuity Test	Between 10 Ω and 120 Ω
Display	3-3/4 digit (4000 count) LCD display
Update Rate	3 per second
Polarity	Automatic
Operating Temperature	0°C to 40°C
Relative Humidity	< 80% RH up to 31°C decreasing to 50% RH at 40°C
Altitude	Operation below 2000 m. Indoor use.
Storage Temperature	-20°C to 60°C, < 80% RH (with battery removed)
Low Battery	Below approx. 2.4V
Power Supply	3V coin battery IEC-CR2
Power Consumption	2.8 mA typical, except 3.3 mA typical for ACA function
Auto Power Off	After being idle for 30 minutes
Max Conductor Diameter	26 mm (1 inch)
Special Features	30ms Max Hold; Data Hold; Relative Zero mode
Dimensions	190 x 63 x 32 mm (7.4 x 2.5 x 1.3 in)
Weight	139 gm
Safety	Meets EN61010-2-032, UL61010B-2-032, IEC61010-1 2nd Ed., EN61010-1 2nd Ed., UL61010-1 2nd Ed. CAT III-600 Volts ac & dc; Pollution degree : 2
Related Products	ACD-10 PLUS 600A Clamp-On Multimeter

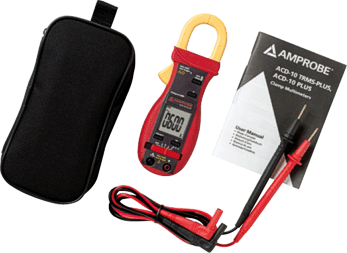

Included Accessories
