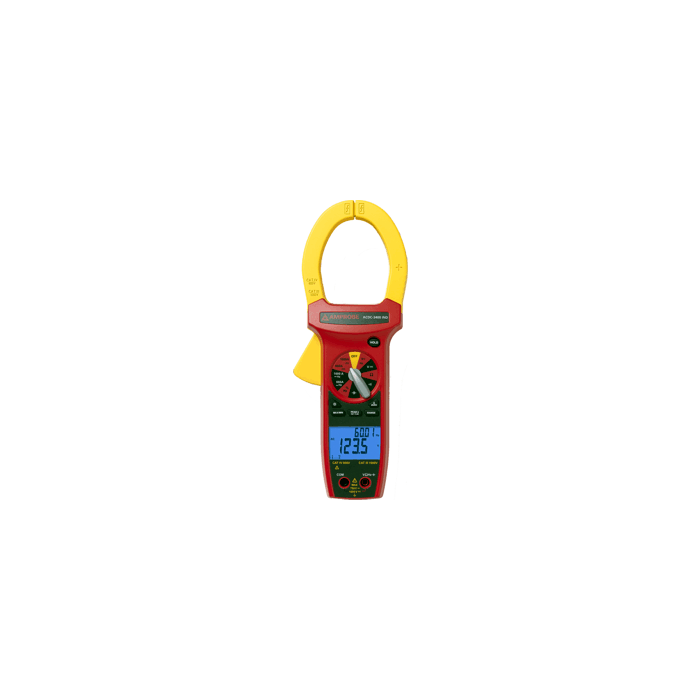

Amprobe ACDC-3400 IND CAT IV Industrial True RMS Clamp Meter
True RMS Clamp-on multimeter for voltage to 750 VAC, 1000 VDC, current to 1000 AAC, plus ohms, frequency, capacitance & duty cycle.
Description
Amprobe’s ACDC-3400 IND Digital Clamp-On Multimeter is CAT IV 600V / CAT III 1000V rated for industrial applications and utilities. CAT IV rating is required for any application where the electrical wiring is located outside of the building, connecting electrical system to the power transformer. Includes True RMS (TRMS) sensing for accuracy and dependability. Large jaw accommodates wires up to 2" in diameter.
Features
True RMS
Measures AC Current up to 1000 ACA, Voltage up to 750 VAC / 1000 VDC, Frequency, Resistance, Capacitance and Duty Cycle.
Peak Hold
1000A DC current
Relative zero
Audible continuity
Auto and manual ranging
Auto power off
Data hold
Backlight
Diode Test
Duty Cycle
Bar-graph
Accommodates conductors up to 2.00” (51 mm) in diameter
Safety CAT IV 600 V, CAT III 1000 V
Test leads, battery (installed), Type-K thermocouple, users manual and carrying case included with product.
Wide choice of Amprobe multimeter accessories
Specifications
DC Voltage Ranges
660.0 mV, 6.600, 66.00, 660.0, 1000 V
DC Voltage Accuracy
± 0.5% rdg ± 2 digits
AC TRMS Voltage Ranges
660.0 mV, 6.600, 66.00, 660.0, 750 V (50-500 Hz)
AC TRMS Voltage Accuracy
± 1.5% rdg ± 8 digits
AC TRMS Input Impedance
660 mV: >100 MΩ; 6.6 V:10 MΩ; 66 V to 1000 V: 9.1 MΩ
Overload Protection
1000 VDC or 750 VAC rms, 1000 AAC
DC Current Ranges
660.0A, 1000A
DC Current Accuracy
± 2.0% rdg ± 5 digits on 660A scale, ± 5.0% rdg ± 5 digits on 1000A scale
AC TRMS Current Ranges
660.0A, 1000A
AC TRMS Current Accuracy
± 2.0% rdg ± 10 digits on 660A scale, ± 5.0% rdg ± 10 digits on 100A scale, 50/60 Hz.
3-3/4 digit (6600 count) LCD display plus 66-segment analog bargraph
Measurement Rate
2.8 times per second
Bargraph Rate Rate
28 times per second
Polarity
Automatic
Operating Temperature
0°C to 50°C (32°F to 122°F at < 70% RH
Relative Humidity
< 80% RH up to 31°C decreasing to 50% RH at 40°C
Altitude
Operation below 2000 m. Indoor use.
Storage Temperature
-20°C to 60°C, < 80% RH (with battery removed)
Power Supply
Standard 9V battery, NEDA 1604, JIS 006P, IEC 6F22
Battery Life
Typically 75 hrs with carbon-zinc, 150 hrs with alkaline
Max Conductor Diameter
51 mm (2.00 in)
Dimensions
283 x 105 x 50 mm (11.1 x 4 x 2.1 in)
Weight
559 gm (1.23 lb)
Maximum Conductor
50 mm (2.00 in) diameter
Safety
Meets EN61010-1:2001 and EN61010-2-032:2002, CAT III 1000V, CAT IV 600V, class II and pollution degree 2
Related Products
Amprobe ACDC-100 AC/DC Clamp-On Multimeter
Included Accessories

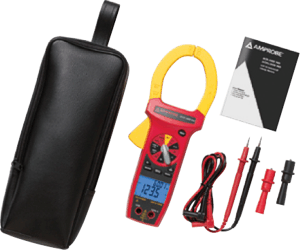

Carrying case, instrument, test leads, Type-K thermocouple, user's manual.
Parts & Accessories
Optional Accessories
TL1500
Cat IV 1000 V (1500V Max) Test Leads with Alligator Clips
Replacement Parts
CC-ACDC
Carrying Case
