Anode Junction Box for Cathodic Protection by Farwest Corrosion

Standard, Inexpensive Construction for C.P. Needs

Anode Junction Box for Cathodic Protection

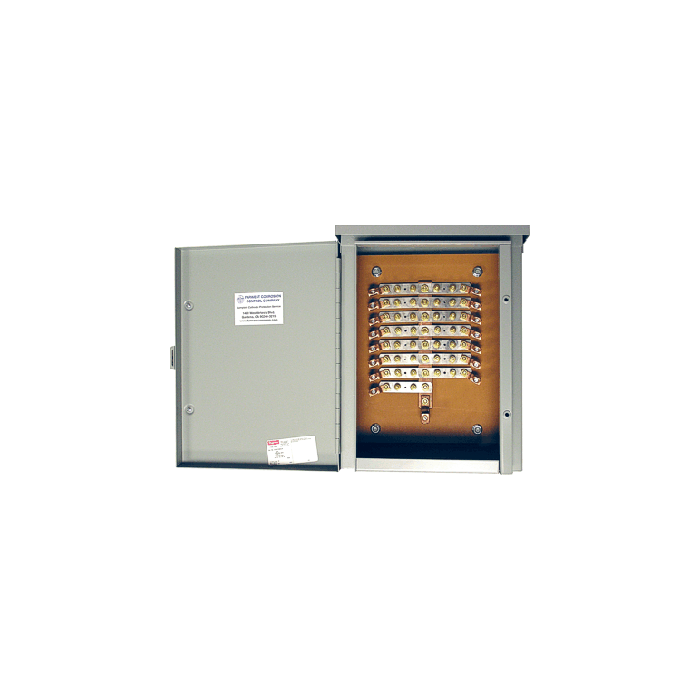

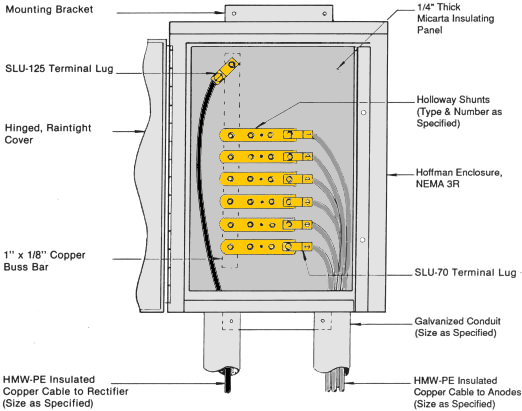

Farwest standard anode junction boxes provide a low-cost solution to consolidate multiple impressed current anode cables and a means for monitoring individual anode currents. Build to last, these junction boxes include a Hoffman powder coated steel enclosure, a Micarta insulating panel, copper buss bar, shunts (customer selected), and mechanical terminal lugs for cable attachment.
Enclosure Construction
- 16-gauge galvanized steel with top drip shield and seam-free sides, front and back.
- 16-gauge galvanized steel continuous hinge with stainless steel hinge pin.
- Cover fastened securely with captive plated steel screws.
- Hasp provided for padlocking.
- No gaskets or knockout provided.
- NEMA 3R rated
Enclosure Finish
- ANSI 61 grey polyester powder finish inside and out over galvanized steel.
Standard Enclosure Sizes
- Farwest Size A: 10" H x 8" W x 6" D, 5 shunts maximum
- Farwest Size B: 16" H x 12" W x 6" D, 18 shunts maximum
- Farwest Size C: 20" H x 16" W x 6" D, 30 shunts maximum
Ordering Information
- Indicate enclosure size required (Size A, B or C).
- Indicated number and type of shunts required.
- If necessary, indicate any custom requirements for the junction box, such as conduit knockouts.
Notes

Other non-standard enclosure materials are available upon request, including aluminum,

stainless steel, polycarbonate or fiberglass. Custom junction boxes can be fabricated to meetany field requirement. Please contact Farwest for assistance.
