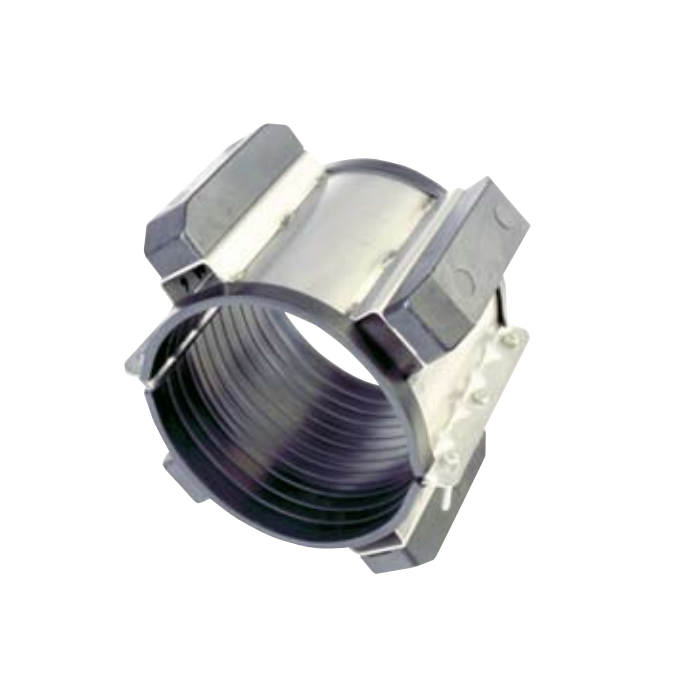

Stainless Steel Band Casing Spacers, Model SSI, by APS

Description

Heavy duty two-piece stainless steel bands serve practically every piping application and should be utilized inside casing that is 2 or 3 sizes larger than the carrier pipe.APS stainless steel band casing spacers are available in two models: the SSI8 model, which is 8” in width and recommended for carrier pipe 4” to 24”; and the SSI12 model, which is 12” in width and is recommended for pipe 26” to 120” and larger. Stainless steel band spacers are recommended for every 6 to 8 feet of pipeline.

For larger diameter pipelines and bell and spigot applications, APS Spacers are available with runner/risers to provide an extra margin of safety.  The bands are constructed of 14 gauge stainless steel with a 0.090” EPDM liner.  Stainless steel spacers are available in grade 304.

Specifications

Band and Risers
Band - 14 Gauge, T-304 Stainless SteelWidth: 8” & 12”Riser - 10 Gauge T-304 Stainless Steel

Liner
PVCDielectric Strength - 60,000 VPMThickness - .090”+/- .010Hardness - 80 Duro +/- 5EPDM3,000 VPMThickness - .090" (2.29mm) min.Hardness - Durometer "A" 85-90Dielectric Strength - {1/8" (3.18 mm) thick} 50,000VPMWater Absorption - 1% max.Overlaps Edges

Bolts, Nuts and Washers
Up to nominal OD of 16” – T-304 Stainless Steel – ¼” – 20UNC x 2” long bolts           ¼” hex nuts             ¼” washers SAE 2330Above nominal OD of 16” – T-304 Stainless Steel – 5/16” – 18UNC x 2” long bolts               5/16” hex nuts              5/16” washers SAE 2330

Runner/risers
1" or 2" wide glass filled polymer plastic

Sizes of Runner/risers available
Length - 7" & 11" (17.8, 27.9 cm)Effective Heights for 7" Length - 1", 11/2", 2", 21/2", 3, 31/2",4", 41/2", 5, 51/2" and 6"Effective Heights for 11" Length - 1", 11/2"

Material Specifications
Rockwell Hardness (M) - (ASTM D785) - 101Tensile Strength - (STM D638) - 27,000 psiFlexural Strength - (ASTM D790) - 40,000 psiDeflection Temp. @ 264 psi - (ASTM D648) - 478˚ F (248˚ C)Deformation Under Load @ 72˚ F (22˚ C) - 3500 lb. Load, - (ASTM D648) - 1%

Welding
All risers are welded to the band by MIG welding. Stainless steel welds are fully passivated.
