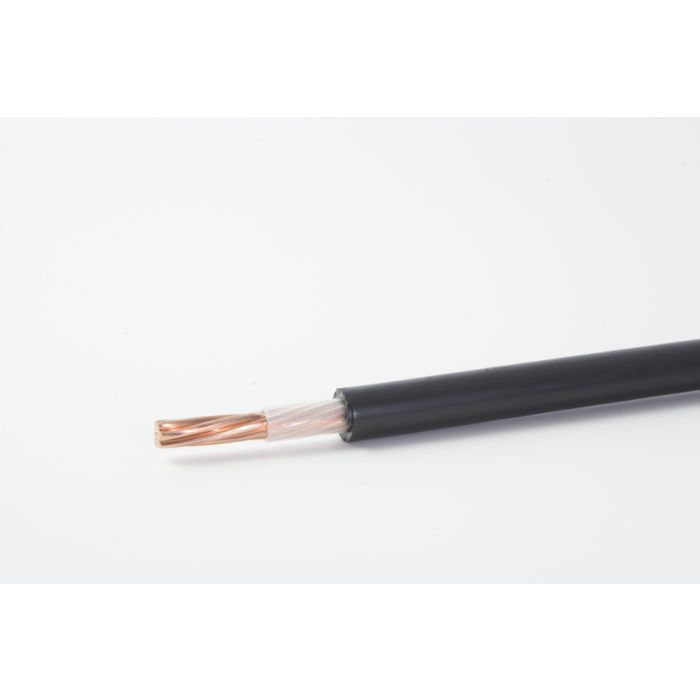

Cable, Kynar/HMWPE Insulation for Cathodic Protection by Farwest Corrosion
Primary Kynar Insulation, Secondary HMWPE Insulation for C.P. Systems
Application
A direct earth burial, DC lead, cathodic protection cable for use in deep anode groundbed installations, designed to withstand corrosive gases.
Standards
Conductor Stranded bare copper conductor conforms to ASTM Specification B-8.
Insulation A homogeneous wall of natural PVDF fluoropolymer (Kynar) shall be extruded over the conductor.
Jacket Insulation is high molecular weight polyethylene conforming to ASTM-D-1248, Type 1, Class A, Category 5, Grades E4 and E5. Tensile Strengths Jl, J3. Available with high density polyethylene (Types II, III, IV) Class B and C (all colors). Surface printed. Custom printing available.
Size
No. of Strands
Circular Mils
AWG Diameter Inches
Kynar Thickness Inches
HMWPE Thickness Inches
Nominal Diameter Inches
Weight Lbs per 1000 ft
DC Ohms per Mft at 20oC
#8
7
16,510
.146
.020
.065
.316
83
.653
#6
7
26,240
.184
.020
.065
.354
120
.411
#4
7
41,740
.232
.020
.065
.402
177
.258
#2
7
66,360
.283
.020
.065
.462
260
.162
