Model MARK V Cable/Short Locator by Tinker & Rasor- Discontinued
SKU#: MARK V Ranger Cable/Short Locator by Tinker and Rasor
Dual Frequency for Location of Pipes, Cables & Electrical Shorts

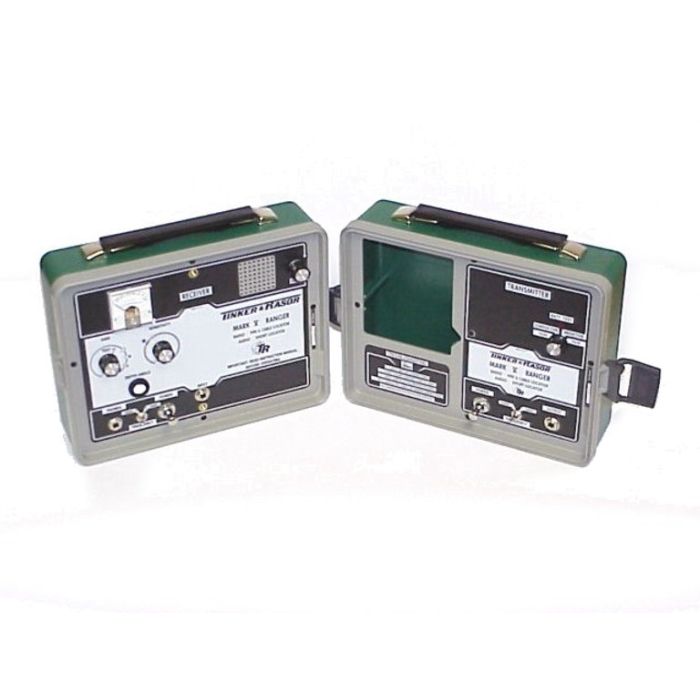

The all new Tinker & Rasor MARK V RANGER is a combination radio frequency pipe and cable locator and audio frequency short
locator. Unsurpassed in depth penetration, tracing distances and sensitivity. The MARK V was designed to expand the capabilities of the field technician by combining two instruments in one.
The quartz crystal controlled signal provides outstanding single frequency output that eliminates high noise interference while being extremely sensitive even at the low range setting. Circuit boards are rigidly mounted to injection molded panels and treated to prevent corrosion and mildew without troublesome potting compounds.
Built with the finest components and materials available, the MARK V delivers the greatest reliability and performance ever offered. Tough ABS thermoplastic panels, housing and compartmented carrying case assure years of trouble-free service in rugged field operations. As with all Tinker & Rasor products, the MARK V comes with batteries, ready for use, and is available for immediate delivery.

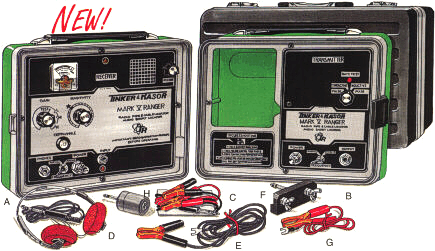

Main System
A. Receiver w/ batteries (6 "C" cells) B. Transmitter w/ batteries (6 "C" cells) C. Ground plate, direct connect cable D. Headphones, stereo E. Ground cable, 30' F. terminal board, pipe & ground G. Cable, transmitter to pipe, 6' H. 45/90 adapter I. Carrying case X. Instruction manual (not shown)
Optional Holiday Detecting Package
J. Shoe cleats (set of 4) K. Terminal board, single L. Terminal board, double M. Cleat cables (set of 4) N. Connecting cable, 30'
The all new Tinker & Rasor MARK V RANGER is a combination radio frequency pipe and cable locator and audio frequency short
locator. Unsurpassed in depth penetration, tracing distances and sensitivity. The MARK V was designed to expand the capabilities of the field technician by combining two instruments in one.
The quartz crystal controlled signal provides outstanding single frequency output that eliminates high noise interference while being extremely sensitive even at the low range setting. Circuit boards are rigidly mounted to injection molded panels and treated to prevent corrosion and mildew without troublesome potting compounds.
Built with the finest components and materials available, the MARK V delivers the greatest reliability and performance ever offered. Tough ABS thermoplastic panels, housing and compartmented carrying case assure years of trouble-free service in rugged field operations. As with all Tinker & Rasor products, the MARK V comes with batteries, ready for use, and is available for immediate delivery.
Main System
A. Receiver w/ batteries (6 "C" cells) B. Transmitter w/ batteries (6 "C" cells) C. Ground plate, direct connect cable D. Headphones, stereo E. Ground cable, 30' F. terminal board, pipe & ground G. Cable, transmitter to pipe, 6' H. 45/90 adapter I. Carrying case X. Instruction manual (not shown)
Optional Holiday Detecting Package
J. Shoe cleats (set of 4) K. Terminal board, single L. Terminal board, double M. Cleat cables (set of 4) N. Connecting cable, 30'
