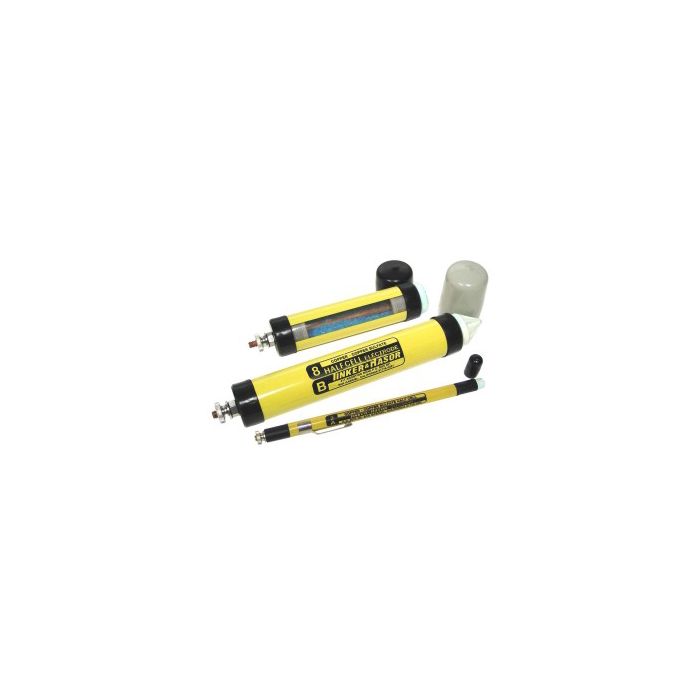

Copper-Copper Sulfate Half-Cell for Cathodic Protection Testing
Description
Tinker & Rasor offers a complete line of Copper - Copper Sulfate Half Cell Reference Electrodes.
Made of the most DURABLE PLASTICS, the Half Cells will withstand severe abuse without damage.
The pre-saturated ceramic plugs are of a special design for LOWER EARTH RESISTANCE contact and also allow for easy probing in hard earth. These ceramic plugs provide a larger surface area than ever before.
Features
Special grooved ceramic plugs
Copper sulfate pre-saturated ceramic plugs
Bright yellow, indestructible plastic body
Thick threaded end plugs with "O" ring seals
Shipped with copper-sulfate crystals
Temperature stable
Indefinite shelf life
Fits all popular cathodic protection meters
Snug-fitting, thick plastic ceramic plug covers
Economically priced
Satisfaction guaranteed
Optional Accessories
Waterproof adapter
Extension Handles to 3 feet
Specifications
Copper stud - 3/4" - 1/4-20 thread
Highest purity copper sulfate
Instructions
Custom made lengths up to 6' (1.83 m) for any Half Cell Models

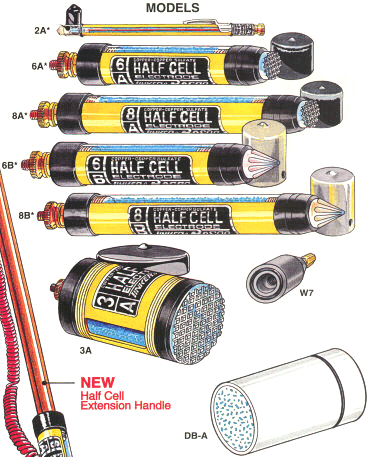

Standard Models
2A
3/8" dia x 5 3/4", 1 oz 10 x 146 mm, 28 g
6A
1-1/4" dia x 6", 6 oz 32 x 152 mm , 168 g
6B
1-1/4" x 7", 6 oz 32 x 178 mm, 168 g
8A
1-1/4" dia x 8", 8 oz 32 x 203 mm, 224 g
8B
1-1/4" dia x 9", 8 oz 32 x 229 mm, 224 g
3A
3" dia x 5", 16 oz 76 x 127mm - 448 g
DB-A
2 1/2" dia x 6 3/4" 32 oz 64 x 171 mm, 896 g
W7
Waterproof adapter for Models 6A, 6B, 8A, 8B. 1-1/4" x 2-1/4", 2 oz 32 x 57 mm, 56 g
049-011
Cu CuSO4 Crystals, 1 lb, 3 oz
049-012
Anti-freeze solution, 32 oz
Description
Tinker & Rasor offers a complete line of Copper - Copper Sulfate Half Cell Reference Electrodes.
Made of the most DURABLE PLASTICS, the Half Cells will withstand severe abuse without damage.
The pre-saturated ceramic plugs are of a special design for LOWER EARTH RESISTANCE contact and also allow for easy probing in hard earth. These ceramic plugs provide a larger surface area than ever before.
Features
Special grooved ceramic plugs
Copper sulfate pre-saturated ceramic plugs
Bright yellow, indestructible plastic body
Thick threaded end plugs with "O" ring seals
Shipped with copper-sulfate crystals
Temperature stable
Indefinite shelf life
Fits all popular cathodic protection meters
Snug-fitting, thick plastic ceramic plug covers
Economically priced
Satisfaction guaranteed
Optional Accessories
Waterproof adapter
Extension Handles to 3 feet
Specifications
Copper stud - 3/4" - 1/4-20 thread
Highest purity copper sulfate
Instructions
Custom made lengths up to 6' (1.83 m) for any Half Cell Models
Standard Models
2A
3/8" dia x 5 3/4", 1 oz 10 x 146 mm, 28 g
6A
1-1/4" dia x 6", 6 oz 32 x 152 mm , 168 g
6B
1-1/4" x 7", 6 oz 32 x 178 mm, 168 g
8A
1-1/4" dia x 8", 8 oz 32 x 203 mm, 224 g
8B
1-1/4" dia x 9", 8 oz 32 x 229 mm, 224 g
3A
3" dia x 5", 16 oz 76 x 127mm - 448 g
DB-A
2 1/2" dia x 6 3/4" 32 oz 64 x 171 mm, 896 g
W7
Waterproof adapter for Models 6A, 6B, 8A, 8B. 1-1/4" x 2-1/4", 2 oz 32 x 57 mm, 56 g
049-011
Cu CuSO4 Crystals, 1 lb, 3 oz
049-012
Anti-freeze solution, 32 oz
