8" Coil. Locates Buried or Paved-over valves, Boxes, Vaults or Other Metal Objects
$595.00
Description

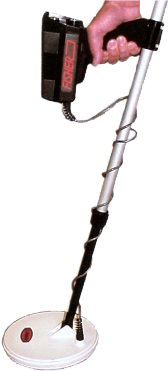

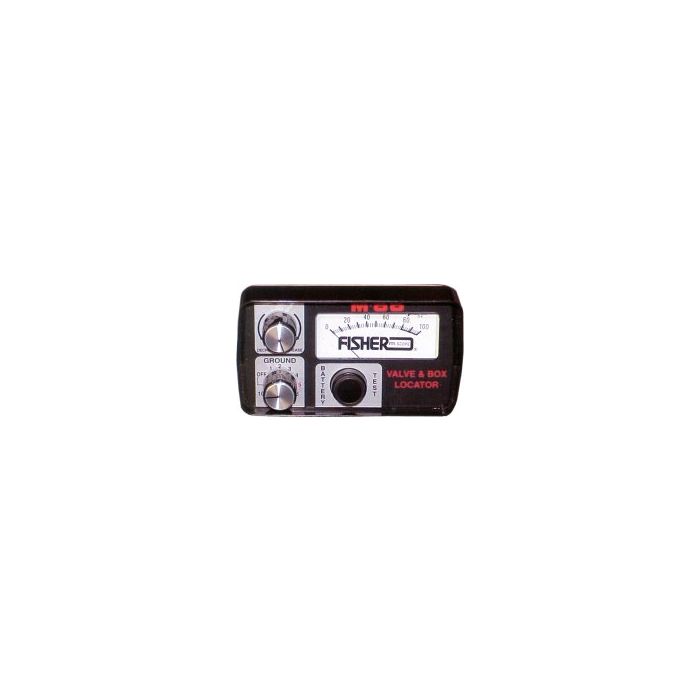

Fisher's M-66 Valve and Box Locator is designed specially for finding buried or paved over valves, boxes or vaults. In addition, the M-66 locates survey markers, water or gas meters, conduit, manholes and any other concealed metallic objects. The M-66 detects all metals including aluminum, brass, copper, iron, nickel, steel or tin.
Combining sensitivity and accuracy with maximum ground penetration, the M-66 eliminates any guesswork when pinpointing hidden metallic objects. The electronic balance of the M-66 is easily and quickly tuned for detection within seconds, while also allowing for maximum audio and visual indications.
In the Fisher tradition, the M-66 is affordable, tough, and simple to use while providing maximum performance. A two-year limited warranty comes standard with the unit.
Features
Simple operation - only 2 knobs.
UItra-sensitivity and maximum penetration through soil, asphalt or concrete.
Fisher warrants the M-66 to be free of defects in material and workmanship when it is shipped from the factory. The terms of this warranty are fully explained in a warranty registration card that accompanies the instrument. Complete factory and field service facilities support the warranty. Warranty may vary outside the U.S. Please see Corrosion Control Products Company for details.
M-66 Specifications
Search Loop Configuration: Double D (direct wired)
Power Consumption: (-9V): 17 mA (+9V): 4 mA min, 6 mA sound threshold, 125 mA max sound
Weight: 4.25 lbs with 8" coil
Operating Temperature: -4°F to +158°F (-20°C to +70°C) Search loop immersible in water
Dimensions: Length 28" to 48" (71 cm to 122 cm), adjustable
Shipping Weight: 7 lbs
Shipping Dimensions: 34.75” x 12.75" x 5.25" (88.3 x 32.4 x 13.3cm)
Description
Fisher's M-66 Valve and Box Locator is designed specially for finding buried or paved over valves, boxes or vaults. In addition, the M-66 locates survey markers, water or gas meters, conduit, manholes and any other concealed metallic objects. The M-66 detects all metals including aluminum, brass, copper, iron, nickel, steel or tin.
Combining sensitivity and accuracy with maximum ground penetration, the M-66 eliminates any guesswork when pinpointing hidden metallic objects. The electronic balance of the M-66 is easily and quickly tuned for detection within seconds, while also allowing for maximum audio and visual indications.
In the Fisher tradition, the M-66 is affordable, tough, and simple to use while providing maximum performance. A two-year limited warranty comes standard with the unit.
Features
Simple operation - only 2 knobs.
UItra-sensitivity and maximum penetration through soil, asphalt or concrete.
Fisher warrants the M-66 to be free of defects in material and workmanship when it is shipped from the factory. The terms of this warranty are fully explained in a warranty registration card that accompanies the instrument. Complete factory and field service facilities support the warranty. Warranty may vary outside the U.S. Please see Corrosion Control Products Company for details.
M-66 Specifications
Search Loop Configuration: Double D (direct wired)
