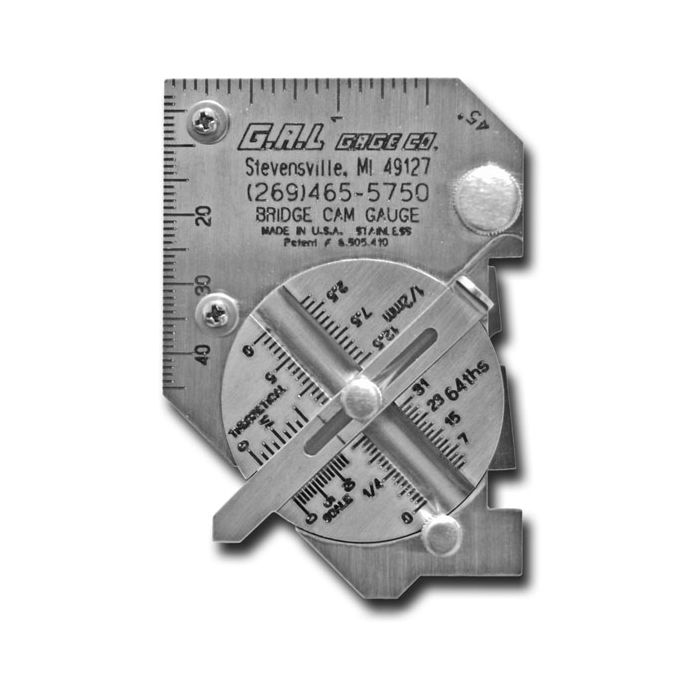

G.A.L. Gage, Cat #4A, Pocket Bridge Cam Gauge

G.A.L. Gage, Cat #4A, Pocket Bridge Cam Gauge

SKU#: 120-16201
Pocket Bridge Cam Gauge

Description
Angle of Preparation, 0o to 60o

Excess Weld Metal (capping size)

Depth of Undercut By 1/32”

Depth of Pitting By 1/32”

Fillet Weld Throat Size (1/64” or .5 mm, Theoretical & Actual)

Fillet Weld Leg Length

Misalignment (High-Low)

Description

Angle of Preparation, 0o to 60o
Excess Weld Metal (capping size)
Depth of Undercut By 1/32”
Depth of Pitting By 1/32”
Fillet Weld Throat Size (1/64” or .5 mm, Theoretical & Actual)
Fillet Weld Leg Length
Misalignment (High-Low)
