Hemi-10 Dual, 10 cm2 Dual Steel Coupon by Farwest Corrosion

Unique Dual Hemispherical Coupon Design for Cathodic Protection Testing

Cathodic protection coupons are a simple, size-specific piece of metal with one or more wires attached and are used for evaluating corrosion control or cathodic protection systems protecting a structure, typically a steel pipeline. These measurements include:
- Native or unprotected structure-to-soil potentials
- Structure-to-soil potentials with the CP system energized
- Structure-to-soil potentials with the CP system interrupted
- To emulate an “Off” structure-to-soil potential without interrupting CP current, typically referred to as a “Coupon Interrupt” reading
- For magnitude measurements of AC current density on a structure with known induced AC issues
Hemi-10 Dual Coupon Details

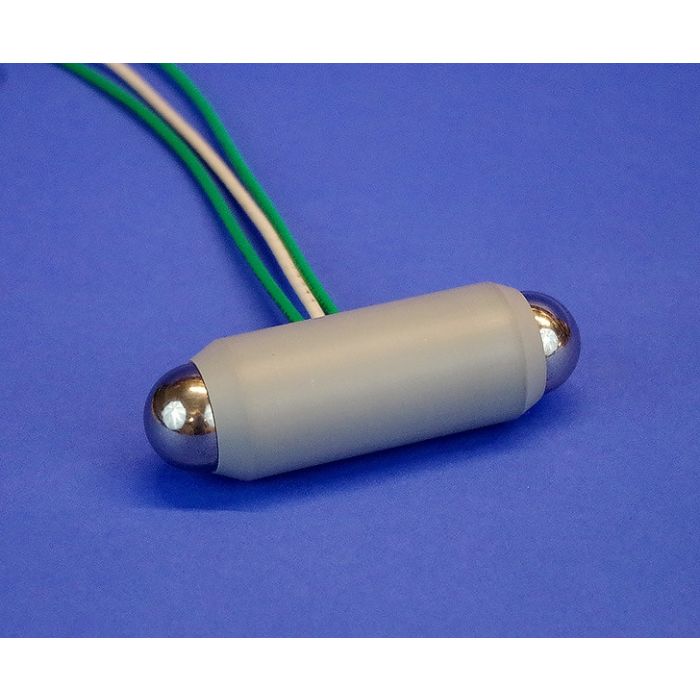

A new design, the "Hemi-10" dual steel C.P. coupon is comprised of 2/each, 10 cm² half-round coupons designed for maximum contact to earth, which is critically important for AC current density measurements.

The dual 10 cm² coupon allows excellent contact to native earth as compared to the smaller 1 cm² coupons. For AC current density measurements, the 10 cm² surface area allows a direct conversion from mA to A/m² without having to use any mathematical conversions.

The coupons are mounted inside a durable PVC housing and the Hemi-10 Dual is provided with a three or four lengths of #12 AWG stranded copper cable with RHH/RHW direct burial insulation.
Coupon Ordering Information
- Specify the Hemi-10 Dual steel coupon
- Select the number of cable lead wires, 3 or 4, for the coupon
- Choose a cable length of 25, 50, 75 or 100 feet.
- Select a cable insulation color as required (such as white, blue, orange, etc.)

Cathodic protection coupons are a simple, size-specific piece of metal with one or more wires attached and are used for evaluating corrosion control or cathodic protection systems protecting a structure, typically a steel pipeline. These measurements include:

Native or unprotected structure-to-soil potentials
Structure-to-soil potentials with the CP system energized
Structure-to-soil potentials with the CP system interrupted
To emulate an “Off” structure-to-soil potential without interrupting CP current, typically referred to as a “Coupon Interrupt” reading
For magnitude measurements of AC current density on a structure with known induced AC issues

Hemi-10 Dual Coupon Details

A new design, the "Hemi-10" dual steel C.P. coupon is comprised of 2/each, 10 cm² half-round coupons designed for maximum contact to earth, which is critically important for AC current density measurements.

The dual 10 cm² coupon allows excellent contact to native earth as compared to the smaller 1 cm² coupons. For AC current density measurements, the 10 cm² surface area allows a direct conversion from mA to A/m² without having to use any mathematical conversions.

The coupons are mounted inside a durable PVC housing and the Hemi-10 Dual is provided with a three or four lengths of #12 AWG stranded copper cable with RHH/RHW direct burial insulation.

Coupon Ordering Information
