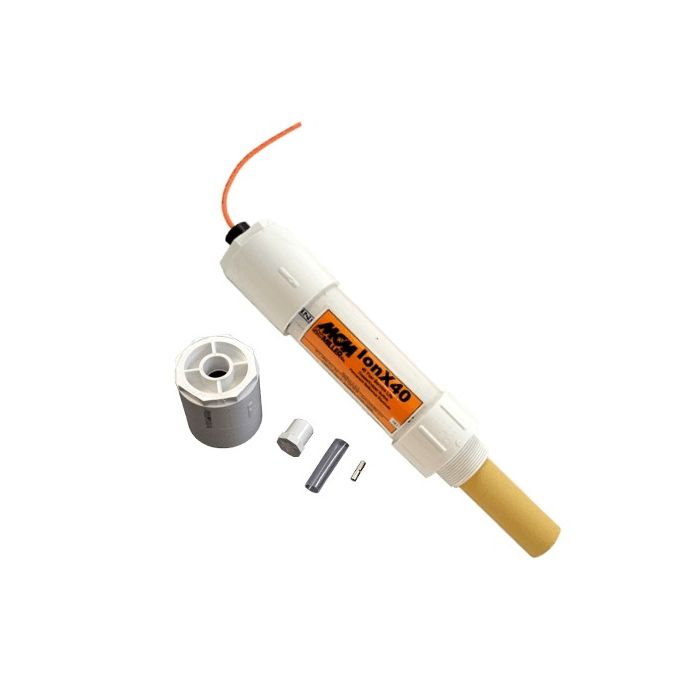

IonX40 Copper/Copper Sulfate Permanent Electrode (Splice-able)
- SKU#: 14350
- Includes Hardware for Onsite Cable Splice
$229.50
-
IonX40 Copper/Copper Sulfate Permanent Reference Electrode (Splice-able)
All new M.C.Miller IonX permanent electrodes include a (batch) Calibration Certificate.
Features & Benefits- All hardware components included for onsite cable splicing (silicone sealant & PVC cement to be supplied by customer)
- Any customer-supplied cable can be used having a maximum outside diameter of 0.4 in (10 mm)and a maximum wire size of # 8 AWG (10 mm²)
- Zero leakage of half-cell filling solution - electrode does not leak any corrosive elements into the soil
- Zero contamination of electrode by electrolyte - electrode half-cell potential is not affected by electrolyte elements, such as chloride ions
- Copper/copper sulfate electrode potentials are in the range 316 mV ±10 mV @ 77°F (25°C) versus the Standard Hydrogen Electrode (SHE)
Additional Information- These products must be installed according to the installation instructions provided.
- These products are not guaranteed to maintain their calibration in all soil environments and it is incumbent on the customer to test their soil for the presence of any potential chemical contaminants prior to installation of these products. The M. C. Miller Company has not tested these products with regard to the effects of specific (potential) chemical contaminants on their calibration.
- These products are not designed for submersion applications.
-
- Design Lifetime: 40 years
- Electrical Contact Area (with soil):approx. 16.5 inches² (106.5 cm²)
- Overall length: 16.0 inches (40.64 cm)
- Max. Diameter: 3.0 inches (7.62 cm)
- Weight (not including wire): 2.7 pounds (1.23 kg)
- Wire Gauge: #12 AWG stranded copper wire with XLPE insulation.
