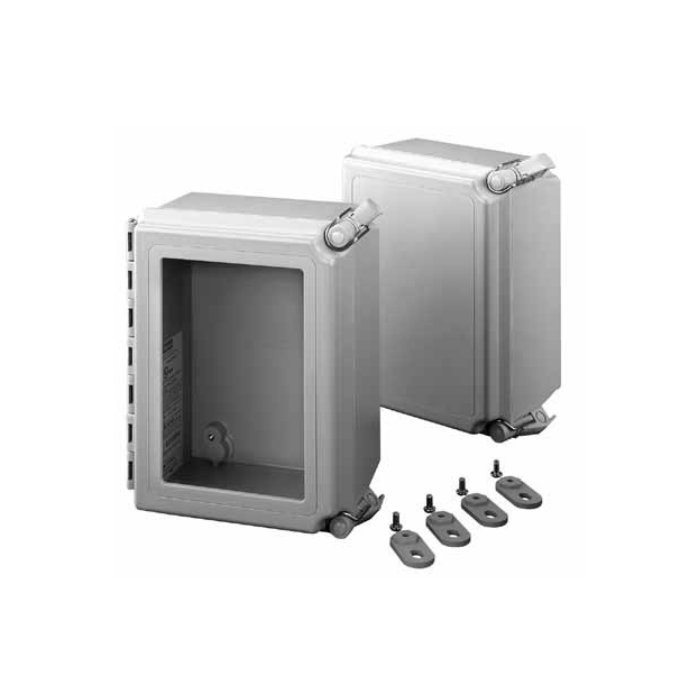

Fiberglass Enclosures, Medium, NEMA 4X, for Cathodic Protection by Farwest Corrosion
Durable in Corrosive Environments
Description
Application The efficient design and simple construction of these enclosures make them durable in corrosive environments, yet aesthetically pleasing. Corner latches provide unobstructed access. The continuous hinge provides a secure seal, and double latching creates added security
Specifications
Compression-molded fiberglass has outstanding chemicaland temperature-resistance qualities and exhibits excellent weatherability and physical properties
Fiberglass is easily punched, drilled, filed or sawed
Gasket assures water-tight and dust-tight seal
Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure
Scratch-resistant polycarbonate windows are permanently bonded in place
Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits
Removable hinged cover attached to body with Type 316 stainless steel hinge pin
Screw-cover enclosures are secured with two captivated Type 316 stainless steel slotted cover screws
Enclosures with quick-release latches have corrosion-resistant polyester latches located in corners that provide unobstructed access to enclosure
Hinge pin and bail are corrosion-resistant Type 316 stainless steel
Padlock provisions included in each latch
Finish
Fiberglass material is light-gray inside and out. Optional steel panels are painted white. Optional stainless steel, aluminum, conductive and composite panels are unpainted.
Hoffman excels at modifying and customizing products to your specifications. Contact your local Hoffman sales office or distributor for complete information.
Drawings
Standard Product Solid Cover
Catalog Number
AxBxC in./mm
Type
Steel Panel
Alum. Panel
Panel Size DxE in./mm
Mounting GxH in./mm
A664CHSCFG
6.00 x 6.00 x 4.00 152 x 152 x 102
Screw Cover
A6P6
A6P6AL
4.88 x 4.88 124 x 124
6.94 x 4.00 176 x 102
A664CHQRFG
6.00 x 6.00 x 4.00 152 x 152 x 102
Quick Release
A6P6
A6P6AL
4.88 x 4.88 124 x 124
6.94 x 4.00 176 x 102
A864CHSCFG
8.00 x 6.00 x 4.00 203 x 152 x 102
Screw Cover
A8P6
A8P6AL
6.75 x 4.88 171 x 124
8.94 x 4.00 227 x 102
A864CHQRFG
8.00 x 6.00 x 4.00 203 x 152 x 102
Quick Release
A8P6
A8P6AL
6.75 x 4.88 171 x 124
8.94 x 4.00 227 x 102
A1086CHSCFG
10.00 x 8.00 x 6.00 254 x 203 x 152
Screw Cover
A10P8
A10P8AL
8.75 x 6.88 222 x 175
10.94 x 6.00 278 x 152
A1086CHQRFG
10.00 x 8.00 x 6.00 254 x 203 x 152
Quick Release
A10P8
A10P8AL
8.75 x 6.88 222 x 175
10.94 x 6.00 278 x 152
A12106CHSCFG
12.00 x 10.00 x 6.00 305 x 254 x 152
Screw Cover
A12P10
A12P10AL
10.75 x 8.88 273 x 226
12.94 x 8.00 329 x 203
A12106CHQRFG
12.00 x 10.00 x 6.00 305 x 254 x 152
Quick Release
A12P10
A12P10AL
10.75 x 8.88 273 x 226
12.94 x 8.00 329 x 203
A14128CHSCFG
14.00 x 12.00 x 8.00 356 x 305 x 203
Screw Cover
A14P12
A14P12AL
12.75 x 10.88 324 x 276
14.94 x 10.00 379 x 254
A14128CHQRFG
14.00 x 12.00 x 8.00 356 x 305 x 203
Quick Release
A14P12
A14P12AL
12.75 x 10.88 324 x 276
14.94 x 10.00 379 x 254
A16148CHSCFG
16.00 x 14.00 x 8.00 406 x 356 x 203
Screw Cover
A16P14
A16P14AL
14.75 x 12.88 375 x 327
16.94 x 12.00 430 x 305
A16148CHQRFG
16.00 x 14.00 x 8.00 406 x 356 x 203
Quick Release
A16P14
A16P14AL
14.75 x 12.88 375 x 327
16.94 x 12.00 430 x 305
A181610CHSCFG
18.00 x 16.00 x 10.00 457 x 406 x 254
Screw Cover
A18P16
A18P16AL
16.75 x 14.88 425 x 378
18.94 x 14.00 481 x 356
A181610CHQRFG
18.00 x 16.00 x 10.00 457 x 406 x 254
Quick Release
A18P16
A18P16AL
16.75 x 14.88 425 x 378
18.94 x 14.00 481 x 356
Catalog Number
Overall LxW in./mm
F in./mm
J in./mml
K in./mm
O in./mm
P in./mm
Q in./mm
T in./mm
U in./mm
A664CHSCFG
6.50 x 6.50 165 x 165
3.45 88
3.25 83
1.00 25
4.25 108
4.25 108
5.64 143
0.12 3
5.64 143
A664CHQRFG
6.50 x 6.50 165 x 165
3.45 88
3.25 83
1.00 25
4.25 108
4.25 108
5.64 143
0.12 3
5.64 143
A864CHSCFG
8.50 x 6.50 216 x 165
3.45 88
3.25 83
1.00 25
4.25 108
6.25 159
7.64 194
0.12 3
5.64 143
A864CHQRFG
8.50 x 6.50 216 x 165
3.45 88
3.25 83
1.00 25
4.25 108
6.25 159
7.64 194
0.12 3
5.64 143
A1086CHSCFG
10.50 x 8.50 267 x 216
5.45 138
4.94 125
1.31 33
6.25 159
8.25 210
9.61 244
0.12 3
7.61 193
A1086CHQRFG
10.50 x 8.50 267 x 216
5.45 138
4.94 125
1.31 33
6.25 159
8.25 210
9.61 244
0.12 3
7.61 193
A12106CHSCFG
12.50 x 10.50 318 x 267
5.45 138
4.69 119
1.56 40
8.25 210
10.25 260
11.58 294
0.12 3
9.58 243
A12106CHQRFG
12.50 x 10.50 318 x 267
5.45 138
4.69 119
1.56 40
8.25 210
10.25 260
11.58 294
0.12 3
9.58 243
A14128CHSCFG
14.55 x 12.55 370 x 319
7.45 189
6.50 165
1.81 46
10.25 260
12.25 311
13.59 345
0.15 4
11.59 294
A14128CHQRFG
14.55 x 12.55 370 x 319
7.45 189
6.50 165
1.81 46
10.25 260
12.25 311
13.59 345
0.15 4
11.59 294
A16148CHSCFG
16.55 x 14.55 420 x 370
7.45 189
6.23 158
2.08 53
12.25 311
14.25 362
15.56 395
0.15 4
13.56 344
A16148CHQRFG
16.55 x 14.55 420 x 370
7.45 189
6.23 158
2.08 53
12.25 311
14.25 362
15.56 395
0.15 4
13.56 344
A181610CHSCFG
18.58 x 16.58 472 x 421
9.45 240
7.66 195
2.66 68
14.25 362
16.25 413
17.53 445
0.16 4
15.53 394
A181610CHQRFG
18.58 x 16.58 472 x 421
9.45 240
7.66 195
2.66 68
14.25 362
16.25 413
17.53 445
0.16 4
15.53 394
Purchase panels separately. Optional stainless steel, aluminum, conductive and composite material panels available for most sizes.
Standard Product Window Cover
Catalog Number
AxBxC in./mm
Type
Steel Panel
Alum. Panel
Panel Size DxE in./mm
Mounting GxH in./mm
A664CHSCFGW
6.00 x 6.00 x 4.00 152 x 152 x 102
Screw Cover
A6P6
A6P6AL
4.88 x 4.88 124 x 124
6.94 x 4.00 176 x 102
A664CHQRFGW
6.00 x 6.00 x 4.00 152 x 152 x 102
Quick Release
A6P6
A6P6AL
4.88 x 4.88 124 x 124
6.94 x 4.00 176 x 102
A864CHSCFGW
8.00 x 6.00 x 4.00 203 x 152 x 102
Screw Cover
A8P6
A8P6AL
6.75 x 4.88 171 x 124
8.94 x 4.00 227 x 102
A864CHQRFGW
8.00 x 6.00 x 4.00 203 x 152 x 102
Quick Release
A8P6
A8P6AL
6.75 x 4.88 171 x 124
8.94 x 4.00 227 x 102
A1086CHSCFGW
10.00 x 8.00 x 6.00 254 x 203 x 152
Screw Cover
A10P8
A10P8AL
8.75 x 6.88 222 x 175
10.94 x 6.00 278 x 152
A1086CHQRFGW
10.00 x 8.00 x 6.00 254 x 203 x 152
Quick Release
A10P8
A10P8AL
8.75 x 6.88 222 x 175
10.94 x 6.00 278 x 152
A12106CHSCFGW
12.00 x 10.00 x 6.00 305 x 254 x 152
Screw Cover
A12P10
A12P10AL
10.75 x 8.88 273 x 226
12.94 x 8.00 329 x 203
A12106CHQRFGW
12.00 x 10.00 x 6.00 305 x 254 x 152
Quick Release
A12P10
A12P10AL
10.75 x 8.88 273 x 226
12.94 x 8.00 329 x 203
A14128CHSCFGW
14.00 x 12.00 x 8.00 356 x 305 x 203
Screw Cover
A14P12
A14P12AL
12.75 x 10.88 324 x 276
14.94 x 10.00 379 x 254
A14128CHQRFGW
14.00 x 12.00 x 8.00 356 x 305 x 203
Quick Release
A14P12
A14P12AL
12.75 x 10.88 324 x 276
14.94 x 10.00 379 x 254
A16148CHSCFGW
16.00 x 14.00 x 8.00 406 x 356 x 203
Screw Cover
A16P14
A16P14AL
14.75 x 12.88 375 x 327
16.94 x 12.00 430 x 305
A16148CHQRFGW
16.00 x 14.00 x 8.00 406 x 356 x 203
Quick Release
A16P14
A16P14AL
14.75 x 12.88 375 x 327
16.94 x 12.00 430 x 305
A181610CHSCFGW
18.00 x 16.00 x 10.00 457 x 406 x 254
Screw Cover
A18P16
A18P16AL
16.75 x 14.88 425 x 378
18.94 x 14.00 481 x 356
A181610CHQRFGW
18.00 x 16.00 x 10.00 457 x 406 x 254
Quick Release
A18P16
A18P16AL
16.75 x 14.88 425 x 378
18.94 x 14.00 481 x 356
Catalog Number
Overall LxW in./mm
F in./mm
J in./mml
K in./mm
O in./mm
P in./mm
Q in./mm
T in./mm
U in./mm
A664CHSCFGW
6.50 x 6.50 165 x 165
3.45 88
3.25 83
1.00 25
4.25 108
4.25 108
5.64 143
0.12 3
5.64 143
A664CHQRFGW
6.50 x 6.50 165 x 165
3.45 88
3.25 83
1.00 25
4.25 108
4.25 108
5.64 143
0.12 3
5.64 143
A864CHSCFGW
8.50 x 6.50 216 x 165
3.45 88
3.25 83
1.00 25
4.25 108
6.25 159
7.64 194
0.12 3
5.64 143
A864CHQRFGW
8.50 x 6.50 216 x 165
3.45 88
3.25 83
1.00 25
4.25 108
6.25 159
7.64 194
0.12 3
5.64 143
A1086CHSCFGW
10.50 x 8.50 267 x 216
5.45 138
4.94 125
1.31 33
6.25 159
8.25 210
9.61 244
0.12 3
7.61 193
A1086CHQRFGW
10.50 x 8.50 267 x 216
5.45 138
4.94 125
1.31 33
6.25 159
8.25 210
9.61 244
0.12 3
7.61 193
A12106CHSCFGW
12.50 x 10.50 318 x 267
5.45 138
4.94 125
1.56 40
8.25 210
10.25 260
11.58 294
0.12 3
9.58 243
A12106CHQRFGW
12.50 x 10.50 318 x 267
5.45 138
4.94 125
1.56 40
8.25 210
10.25 260
11.58 294
0.12 3
9.58 243
A14128CHSCFGW
14.55 x 12.55 370 x 319
7.45 189
6.50 165
1.81 46
10.25 260
12.25 311
13.59 345
0.15 4
11.59 294
A14128CHQRFGW
14.55 x 12.55 370 x 319
7.45 189
6.50 165
1.81 46
10.25 260
12.25 311
13.59 345
0.15 4
11.59 294
A16148CHSCFGW
16.55 x 14.55 420 x 370
7.45 189
6.23 158
2.08 53
12.25 311
14.25 362
15.56 395
0.15 4
13.56 344
A16148CHQRFGW
16.55 x 14.55 420 x 370
7.45 189
6.23 158
2.08 53
12.25 311
14.25 362
15.56 395
0.15 4
13.56 344
A181610CHSCFGW
18.58 x 16.58 472 x 421
9.45 240
7.66 195
2.66 68
14.25 362
16.25 413
17.53 445
0.16 4
15.53 394
A181610CHQRFGW
18.58 x 16.58 472 x 421
9.45 240
7.66 195
2.66 68
14.25 362
16.25 413
17.53 445
0.16 4
15.53 394
Purchase panels separately. Optional stainless steel, aluminum, conductive and composite material panels available for most sizes.
Two fiberglass-reinforced gray polyester latches with 316L stainless steel bail and screw-hole plugs are included in each package. Supplied with Continuous Hinge, Type 4X enclosures and available for Fiberglass Hinged Cover WiFi Cabinet, Type 4X. Kit converts screw-cover enclosures to quick-release without modification. No tools needed to install. Padlocking provision is included.
Catalog Number
Description
Kit Qty.
AL48
Quick-Release Latch Kit
2
The Swing-Out Panel Kit provides an attractive, cost-effective solution for installing front-mounted panels in Continuous Hinge, Type 4X, and Overlapping Cover, Type 4X enclosures. No drilling required.
Catalog Number
Fits Enclosure AxB(in)
Fits Enclosure AxB (mm)
A6SPK6C
6.00 x 6.00
152 x 152
A8SPK6C
8.00 x 6.00
203 x 152
A10SPK8C
10.00 x 8.00
254 x 203
A12SPK10C
12.00 x 10.00
305 x 254
A16SPK14C
16.00 x 14.00
406 x 356
A18SPK16C
18.00 x 16.00
457 x 406
A14SPK12C
14.00 x 12.00
356 x 305
Description
Application The efficient design and simple construction of these enclosures make them durable in corrosive environments, yet aesthetically pleasing. Corner latches provide unobstructed access. The continuous hinge provides a secure seal, and double latching creates added security
Specifications
Compression-molded fiberglass has outstanding chemicaland temperature-resistance qualities and exhibits excellent weatherability and physical properties
Fiberglass is easily punched, drilled, filed or sawed
Gasket assures water-tight and dust-tight seal
Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure
Scratch-resistant polycarbonate windows are permanently bonded in place
Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits
Removable hinged cover attached to body with Type 316 stainless steel hinge pin
Screw-cover enclosures are secured with two captivated Type 316 stainless steel slotted cover screws
Enclosures with quick-release latches have corrosion-resistant polyester latches located in corners that provide unobstructed access to enclosure
Hinge pin and bail are corrosion-resistant Type 316 stainless steel
Padlock provisions included in each latch
Finish
Fiberglass material is light-gray inside and out. Optional steel panels are painted white. Optional stainless steel, aluminum, conductive and composite panels are unpainted.
Hoffman excels at modifying and customizing products to your specifications. Contact your local Hoffman sales office or distributor for complete information.
Drawings
Standard Product Solid Cover
Catalog Number
AxBxC in./mm
Type
Steel Panel
Alum. Panel
Panel Size DxE in./mm
Mounting GxH in./mm
A664CHSCFG
6.00 x 6.00 x 4.00 152 x 152 x 102
Screw Cover
A6P6
A6P6AL
4.88 x 4.88 124 x 124
6.94 x 4.00 176 x 102
A664CHQRFG
6.00 x 6.00 x 4.00 152 x 152 x 102
Quick Release
A6P6
A6P6AL
4.88 x 4.88 124 x 124
6.94 x 4.00 176 x 102
A864CHSCFG
8.00 x 6.00 x 4.00 203 x 152 x 102
Screw Cover
A8P6
A8P6AL
6.75 x 4.88 171 x 124
8.94 x 4.00 227 x 102
A864CHQRFG
8.00 x 6.00 x 4.00 203 x 152 x 102
Quick Release
A8P6
A8P6AL
6.75 x 4.88 171 x 124
8.94 x 4.00 227 x 102
A1086CHSCFG
10.00 x 8.00 x 6.00 254 x 203 x 152
Screw Cover
A10P8
A10P8AL
8.75 x 6.88 222 x 175
10.94 x 6.00 278 x 152
A1086CHQRFG
10.00 x 8.00 x 6.00 254 x 203 x 152
Quick Release
A10P8
A10P8AL
8.75 x 6.88 222 x 175
10.94 x 6.00 278 x 152
A12106CHSCFG
12.00 x 10.00 x 6.00 305 x 254 x 152
Screw Cover
A12P10
A12P10AL
10.75 x 8.88 273 x 226
12.94 x 8.00 329 x 203
A12106CHQRFG
12.00 x 10.00 x 6.00 305 x 254 x 152
Quick Release
A12P10
A12P10AL
10.75 x 8.88 273 x 226
12.94 x 8.00 329 x 203
A14128CHSCFG
14.00 x 12.00 x 8.00 356 x 305 x 203
Screw Cover
A14P12
A14P12AL
12.75 x 10.88 324 x 276
14.94 x 10.00 379 x 254
A14128CHQRFG
14.00 x 12.00 x 8.00 356 x 305 x 203
Quick Release
A14P12
A14P12AL
12.75 x 10.88 324 x 276
14.94 x 10.00 379 x 254
A16148CHSCFG
16.00 x 14.00 x 8.00 406 x 356 x 203
Screw Cover
A16P14
A16P14AL
14.75 x 12.88 375 x 327
16.94 x 12.00 430 x 305
A16148CHQRFG
16.00 x 14.00 x 8.00 406 x 356 x 203
Quick Release
A16P14
A16P14AL
14.75 x 12.88 375 x 327
16.94 x 12.00 430 x 305
A181610CHSCFG
18.00 x 16.00 x 10.00 457 x 406 x 254
Screw Cover
A18P16
A18P16AL
16.75 x 14.88 425 x 378
18.94 x 14.00 481 x 356
A181610CHQRFG
18.00 x 16.00 x 10.00 457 x 406 x 254
Quick Release
A18P16
A18P16AL
16.75 x 14.88 425 x 378
18.94 x 14.00 481 x 356
Catalog Number
Overall LxW in./mm
F in./mm
J in./mml
K in./mm
O in./mm
P in./mm
Q in./mm
T in./mm
U in./mm
A664CHSCFG
6.50 x 6.50 165 x 165
3.45 88
3.25 83
1.00 25
4.25 108
4.25 108
5.64 143
0.12 3
5.64 143
A664CHQRFG
6.50 x 6.50 165 x 165
3.45 88
3.25 83
1.00 25
4.25 108
4.25 108
5.64 143
0.12 3
5.64 143
A864CHSCFG
8.50 x 6.50 216 x 165
3.45 88
3.25 83
1.00 25
4.25 108
6.25 159
7.64 194
0.12 3
5.64 143
A864CHQRFG
8.50 x 6.50 216 x 165
3.45 88
3.25 83
1.00 25
4.25 108
6.25 159
7.64 194
0.12 3
5.64 143
A1086CHSCFG
10.50 x 8.50 267 x 216
5.45 138
4.94 125
1.31 33
6.25 159
8.25 210
9.61 244
0.12 3
7.61 193
A1086CHQRFG
10.50 x 8.50 267 x 216
5.45 138
4.94 125
1.31 33
6.25 159
8.25 210
9.61 244
0.12 3
7.61 193
A12106CHSCFG
12.50 x 10.50 318 x 267
5.45 138
4.69 119
1.56 40
8.25 210
10.25 260
11.58 294
0.12 3
9.58 243
A12106CHQRFG
12.50 x 10.50 318 x 267
5.45 138
4.69 119
1.56 40
8.25 210
10.25 260
11.58 294
0.12 3
9.58 243
A14128CHSCFG
14.55 x 12.55 370 x 319
7.45 189
6.50 165
1.81 46
10.25 260
12.25 311
13.59 345
0.15 4
11.59 294
A14128CHQRFG
14.55 x 12.55 370 x 319
7.45 189
6.50 165
1.81 46
10.25 260
12.25 311
13.59 345
0.15 4
11.59 294
A16148CHSCFG
16.55 x 14.55 420 x 370
7.45 189
6.23 158
2.08 53
12.25 311
14.25 362
15.56 395
0.15 4
13.56 344
A16148CHQRFG
16.55 x 14.55 420 x 370
7.45 189
6.23 158
2.08 53
12.25 311
14.25 362
15.56 395
0.15 4
13.56 344
A181610CHSCFG
18.58 x 16.58 472 x 421
9.45 240
7.66 195
2.66 68
14.25 362
16.25 413
17.53 445
0.16 4
15.53 394
A181610CHQRFG
18.58 x 16.58 472 x 421
9.45 240
7.66 195
2.66 68
14.25 362
16.25 413
17.53 445
0.16 4
15.53 394
Purchase panels separately. Optional stainless steel, aluminum, conductive and composite material panels available for most sizes.
Standard Product Window Cover
Catalog Number
AxBxC in./mm
Type
Steel Panel
Alum. Panel
Panel Size DxE in./mm
Mounting GxH in./mm
A664CHSCFGW
6.00 x 6.00 x 4.00 152 x 152 x 102
Screw Cover
A6P6
A6P6AL
4.88 x 4.88 124 x 124
6.94 x 4.00 176 x 102
A664CHQRFGW
6.00 x 6.00 x 4.00 152 x 152 x 102
Quick Release
A6P6
A6P6AL
4.88 x 4.88 124 x 124
6.94 x 4.00 176 x 102
A864CHSCFGW
8.00 x 6.00 x 4.00 203 x 152 x 102
Screw Cover
A8P6
A8P6AL
6.75 x 4.88 171 x 124
8.94 x 4.00 227 x 102
A864CHQRFGW
8.00 x 6.00 x 4.00 203 x 152 x 102
Quick Release
A8P6
A8P6AL
6.75 x 4.88 171 x 124
8.94 x 4.00 227 x 102
A1086CHSCFGW
10.00 x 8.00 x 6.00 254 x 203 x 152
Screw Cover
A10P8
A10P8AL
8.75 x 6.88 222 x 175
10.94 x 6.00 278 x 152
A1086CHQRFGW
10.00 x 8.00 x 6.00 254 x 203 x 152
Quick Release
A10P8
A10P8AL
8.75 x 6.88 222 x 175
10.94 x 6.00 278 x 152
A12106CHSCFGW
12.00 x 10.00 x 6.00 305 x 254 x 152
Screw Cover
A12P10
A12P10AL
10.75 x 8.88 273 x 226
12.94 x 8.00 329 x 203
A12106CHQRFGW
12.00 x 10.00 x 6.00 305 x 254 x 152
Quick Release
A12P10
A12P10AL
10.75 x 8.88 273 x 226
12.94 x 8.00 329 x 203
A14128CHSCFGW
14.00 x 12.00 x 8.00 356 x 305 x 203
Screw Cover
A14P12
A14P12AL
12.75 x 10.88 324 x 276
14.94 x 10.00 379 x 254
A14128CHQRFGW
14.00 x 12.00 x 8.00 356 x 305 x 203
Quick Release
A14P12
A14P12AL
12.75 x 10.88 324 x 276
14.94 x 10.00 379 x 254
A16148CHSCFGW
16.00 x 14.00 x 8.00 406 x 356 x 203
Screw Cover
A16P14
A16P14AL
14.75 x 12.88 375 x 327
16.94 x 12.00 430 x 305
A16148CHQRFGW
16.00 x 14.00 x 8.00 406 x 356 x 203
Quick Release
A16P14
A16P14AL
14.75 x 12.88 375 x 327
16.94 x 12.00 430 x 305
A181610CHSCFGW
18.00 x 16.00 x 10.00 457 x 406 x 254
Screw Cover
A18P16
A18P16AL
16.75 x 14.88 425 x 378
18.94 x 14.00 481 x 356
A181610CHQRFGW
18.00 x 16.00 x 10.00 457 x 406 x 254
Quick Release
A18P16
A18P16AL
16.75 x 14.88 425 x 378
18.94 x 14.00 481 x 356
Catalog Number
Overall LxW in./mm
F in./mm
J in./mml
K in./mm
O in./mm
P in./mm
Q in./mm
T in./mm
U in./mm
A664CHSCFGW
6.50 x 6.50 165 x 165
3.45 88
3.25 83
1.00 25
4.25 108
4.25 108
5.64 143
0.12 3
5.64 143
A664CHQRFGW
6.50 x 6.50 165 x 165
3.45 88
3.25 83
1.00 25
4.25 108
4.25 108
5.64 143
0.12 3
5.64 143
A864CHSCFGW
8.50 x 6.50 216 x 165
3.45 88
3.25 83
1.00 25
4.25 108
6.25 159
7.64 194
0.12 3
5.64 143
A864CHQRFGW
8.50 x 6.50 216 x 165
3.45 88
3.25 83
1.00 25
4.25 108
6.25 159
7.64 194
0.12 3
5.64 143
A1086CHSCFGW
10.50 x 8.50 267 x 216
5.45 138
4.94 125
1.31 33
6.25 159
8.25 210
9.61 244
0.12 3
7.61 193
A1086CHQRFGW
10.50 x 8.50 267 x 216
5.45 138
4.94 125
1.31 33
6.25 159
8.25 210
9.61 244
0.12 3
7.61 193
A12106CHSCFGW
12.50 x 10.50 318 x 267
5.45 138
4.94 125
1.56 40
8.25 210
10.25 260
11.58 294
0.12 3
9.58 243
A12106CHQRFGW
12.50 x 10.50 318 x 267
5.45 138
4.94 125
1.56 40
8.25 210
10.25 260
11.58 294
0.12 3
9.58 243
A14128CHSCFGW
14.55 x 12.55 370 x 319
7.45 189
6.50 165
1.81 46
10.25 260
12.25 311
13.59 345
0.15 4
11.59 294
A14128CHQRFGW
14.55 x 12.55 370 x 319
7.45 189
6.50 165
1.81 46
10.25 260
12.25 311
13.59 345
0.15 4
11.59 294
A16148CHSCFGW
16.55 x 14.55 420 x 370
7.45 189
6.23 158
2.08 53
12.25 311
14.25 362
15.56 395
0.15 4
13.56 344
A16148CHQRFGW
16.55 x 14.55 420 x 370
7.45 189
6.23 158
2.08 53
12.25 311
14.25 362
15.56 395
0.15 4
13.56 344
A181610CHSCFGW
18.58 x 16.58 472 x 421
9.45 240
7.66 195
2.66 68
14.25 362
16.25 413
17.53 445
0.16 4
15.53 394
A181610CHQRFGW
18.58 x 16.58 472 x 421
9.45 240
7.66 195
2.66 68
14.25 362
16.25 413
17.53 445
0.16 4
15.53 394
Purchase panels separately. Optional stainless steel, aluminum, conductive and composite material panels available for most sizes.
Two fiberglass-reinforced gray polyester latches with 316L stainless steel bail and screw-hole plugs are included in each package. Supplied with Continuous Hinge, Type 4X enclosures and available for Fiberglass Hinged Cover WiFi Cabinet, Type 4X. Kit converts screw-cover enclosures to quick-release without modification. No tools needed to install. Padlocking provision is included.
Catalog Number
Description
Kit Qty.
AL48
Quick-Release Latch Kit
2
The Swing-Out Panel Kit provides an attractive, cost-effective solution for installing front-mounted panels in Continuous Hinge, Type 4X, and Overlapping Cover, Type 4X enclosures. No drilling required.
Catalog Number
Fits Enclosure AxB(in)
Fits Enclosure AxB (mm)
A6SPK6C
6.00 x 6.00
152 x 152
A8SPK6C
8.00 x 6.00
203 x 152
A10SPK8C
10.00 x 8.00
254 x 203
A12SPK10C
12.00 x 10.00
305 x 254
A16SPK14C
16.00 x 14.00
406 x 356
A18SPK16C
18.00 x 16.00
457 x 406
A14SPK12C
14.00 x 12.00
356 x 305
Customers Who Viewed This Also Viewed
Are you sure you would like to remove this item from the shopping cart?
This item is a part of the approved quote. Removing it will remove all quote items from the cart.
