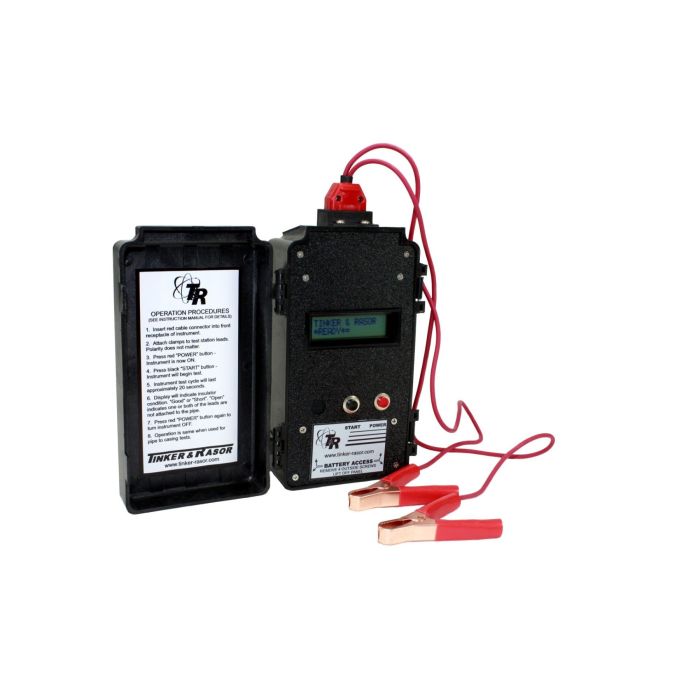

Model CE/IT Buried Insulator Tester by Tinker & Rasor
- SKU#: 04-19810
- The Model CE-IT Insulator Tester is fully automatic and highly sensitive electronic instrument designed to test the effectiveness of buried pipeline insulators. The CE-IT can also be used to determine isolation condition of pipelines in road crossing casings.
$775.00
Attachments
-
FEATURES:
• Gives test results via digital display
• Results given
• Effectiveness of Buried Pipe Insulators
• Isolation condition of pipelines in road crossing casings
• Good to indicate broken wire
• Automatic off to ensure long battery lifeCF-IT FEATURES:
- Gives test results via digital display
- Results given
- Effectiveness of Buried Pipe Insulators
- Isolation condition of pipelines in
road crossing casings
- Effectiveness of Buried Pipe Insulators
- Good to indicate broken wire
- Automatic off to ensure long battery life
CE-IT CAPABILITIES:
- Senses & Replicates:External polarity, External Voltage
- Analogues,Internal Voltage Reference with External Voltage
- Measures flowing current throughout the testing cycle
- Gives result of test considering the above tested parameters
- Battery life exceeds 50 hours
-
APPLICATIONS:
- Below Ground Insulators
- Use successfully as a casing short investigative tool
- Use Regardless of CP or other current/voltage present or structure
SPECIFICATIONS:
- Battery Operated
- (6) Alkaline “AA” batteries (replaceable)
- Cables and probes included
DIMENSIONS:
8” length x 4” width x 3” depth
Operating Weight: 2 lbs.
Shipping Weight: 3 lbs
