Model I.A. Analog Potential Meter by M.C. Miller

SKU#: 04-15015
For Cathodic Protection Potential Testing
$446.50

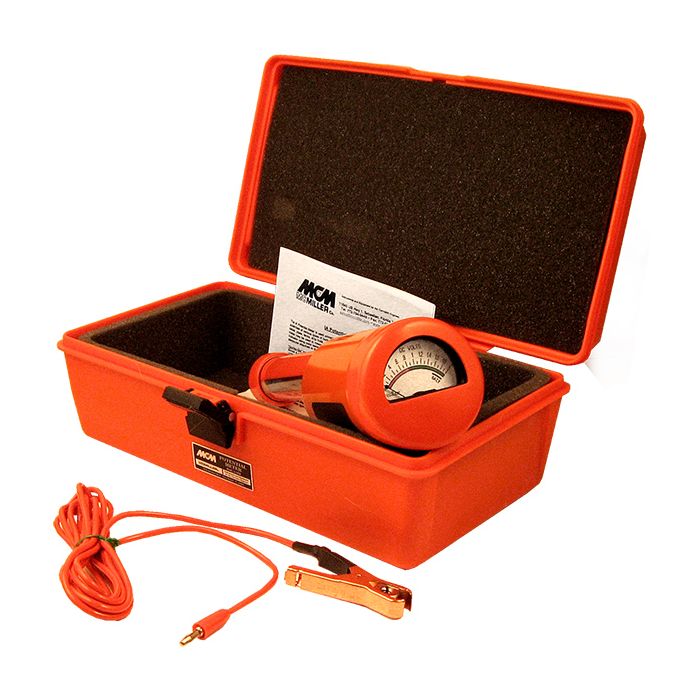

  • The Model IA voltmeter (Analog Potential Meter) is designed for ease of use by meter readers and corrosion technicians alike and the voltmeter includes an integrated RE-5 reference electrode attached for "metallic structure-to-soil" potential difference readings.  The kit also includes a test lead for electrical connection to a metallic structure.

    The voltmeter offers a 0 - 2 VDC range with a 10 MΩ input impedance and the analog display presents a color divided scale for convenient indication as to whether or not a carbon-steel structure is receiving a suitable level of cathodic protection, with respect to the accepted 0.85 V (850 mV) threshold value.

    Note: Only positive voltage values are displayed

    Includes:
    • RE-5 reference electrode
    • 8 ft black test lead with 46-C clip

    An optionally available electrode extension can be used to eliminate having to bend over to have the reference electrode placed in contact with soil.

  • Analog Voltmeter:
    • 2½" taut-band rugged instrument
    • Weatherproofed neoprene gasket
    • 10 MΩ input resistance
    • Solid-state impedance amplifier
    • Operates on one small 9V transistor battery, low drain - long shelf life push switch to check battery condition, battery easily replaced and readily available.
    • Push switch to read potentials, current drain only while taking readings.
    • Scale marked 0VDC to 2VDC, color band: Red to 0.85VDC, Green to 2VDC.
    • Filter eliminates errors caused by AC, Up to 50 volts 50/60 Hz
    • Operating temperature: 0°F to 150°F (-18°C to 66°C)
    • Molded PVC housing
    • Plastic carrying case with resilient padding
    • Modular construction
    • Weight: 3.0 pounds (1.36 kg)
    • Size: 2.5 inches (6.35 cm) deep x 10.0 (25.4 cm) inches long (including the reference electrode).
