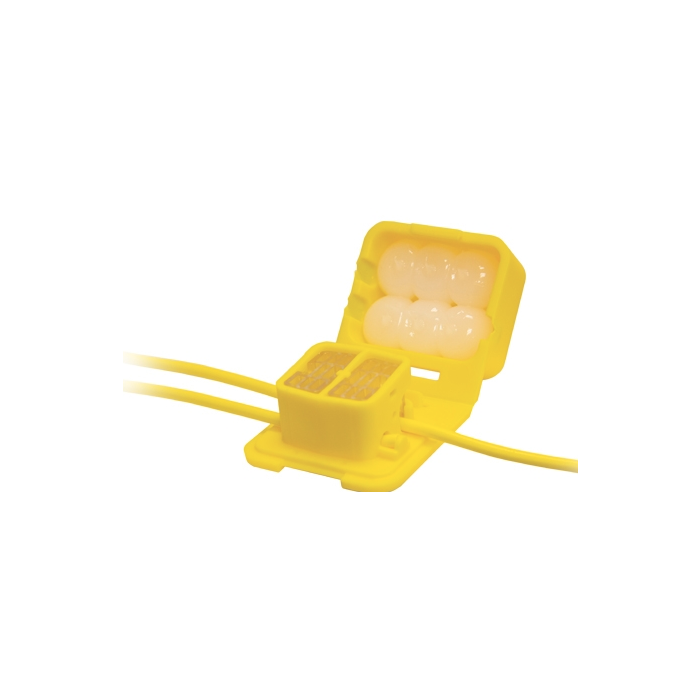

Model IDC DryConn Yellow Connector by King Innovations

Features & Benefits

• Self Stripping- No Need to Strip Wires!

• Waterproof and corrosion proof

• No need to strip conductor

• Install service line without cutting the main line

• Installs with hand tools

• One piece for easy installation

• Installs in one minute or less

• Designed for use with solid/stranded copper and steel core tracer wire with .030” and .045” thick insulation
• Wire range from #14-12 Solid/Stranded Copper
                             #14-12 Steel Core Tracer Wire/CCS

• High impact housing with user friendly design to prevent cuts or handling discomfort

• Use with low voltage tracer lines under 50 volts

• Pre-filled with silicone

• Approved for direct bury

Product Specifications & Measurements

Max. Voltage: 50V
Connector Size: .96” x 1.73” x 1.78”
Wire Range: #14 - 12 Solid/Stranded Copper
                     #14 - 12 Steel Core Tracer Wire/CCS
Conductor O.D. Range: .121” - .166”
Silicone Sealant Temperature Rating: -45°F to 400°F

Construction
Electrical Contacts: Tin plated high conductivity brass Housing: High impact polypropylene Sealant: Non-hardening viscous dielectric silicone.

Measurements

A - .96”      B - 1.73”      C - 1.78”
A - 24.4mm      B - 43.9mm      C - 45.2mm

Procust SKU's Available

98305 - Yellow, 5pc. Bag
