Model PM-125 Pavement Insert for C.P. Testing by Pro-Mark

Designed to be Embedded. Permits Access for Pipe-to-Soil Potential Readings.

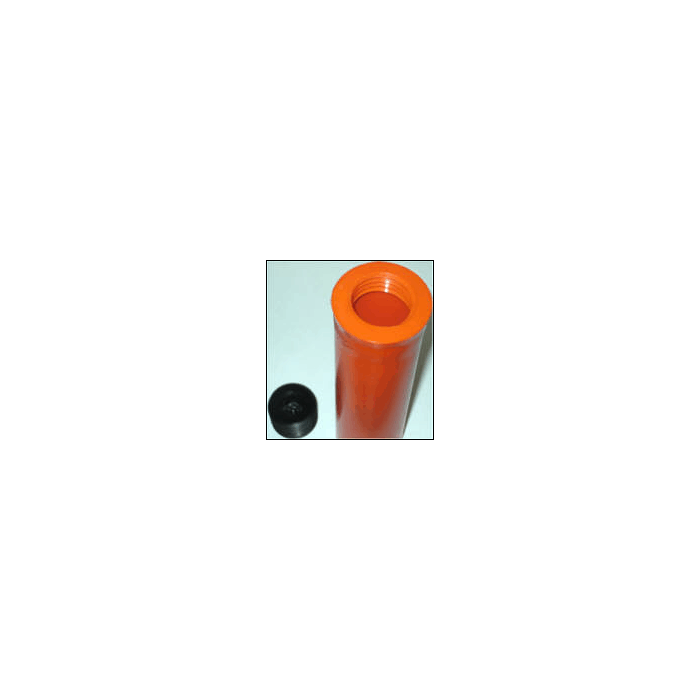

The Pro-Mark PM-125PI Pavement Insert is ideal for manual leak detection surveys or for native soil access for cathodic protection potential measurement. It accepts a reference electrode with a diameter of 1" or less.

Designed to be embedded in streets or sidewalks in urban and/or high vehicular traffic areas.

Permits access to soil for taking pipe-to-soil potential reading over existing underground piping systems.

Maintenance-free, non-metallic, flush-type test location.

Bright orange color allows crews to identify and easily locate the Pavement Insert.

Height of 5-3/4”

1-3/4” OD with 1” opening on top allows an electrode to contact the electrolyte beneath the pavement surface.

Easy to install: drill a 1-3/4” hole through the pavement and drive the Pavement Insert flush with a mallet.

Inexpensive.

Ordering Information: Farwest P/N 07-60075
