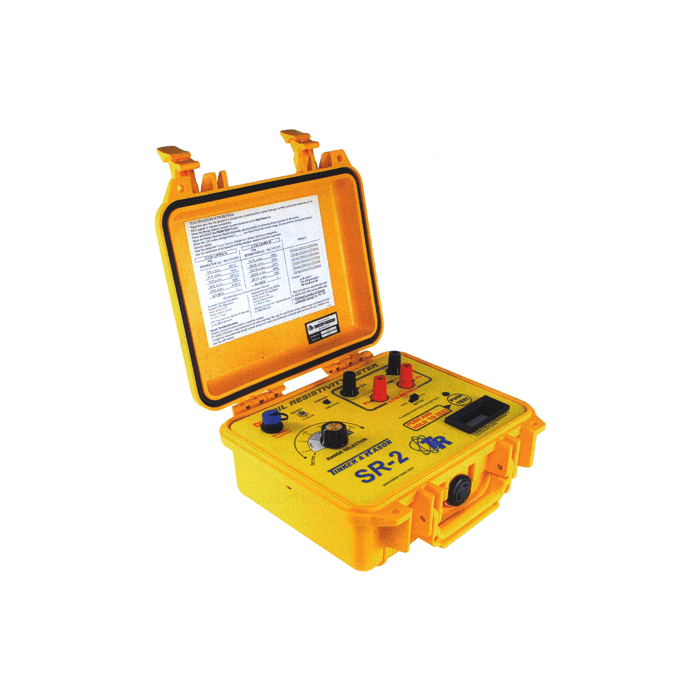

Model SR-2 Soil Resistance Meter by Tinker & Rasor
- SKU#: 04-19310
- Accurate and Easy-to-Use with 4-pin Wenner or 3-pin Fall Potential Methods
-
DescriptionThe Tinker & Rasor SR-2 Soil Resistivity Meter is a highly accurate and easy-to-use soil resistivity instrument for use with the 2-pin and 4-pin (Wenner) methods of soil resistance measurement. A pin selector switch allows choosing between 2-pin and 4-pin tests without removing cables.
The SR-2 provides easy resistance readings with a digital 4-1/2 digit display, push-button operation, and an easily adjusted Ohm to MOhm range selector. The display will show in the correct range. Multiply reading with pin spacing multiplier for Ohm-cm.
Use the SR-2 to find soil resistivity for a variety of cathodic protections applications, including pipelines, tanks, wells, etc. Also use for geological and archeological studies.

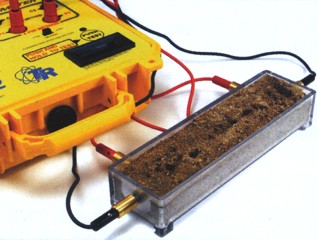

Model SB-1 Soil BoxUse the SR-2 in the field or lab with the optional Tinker & Rasor Model SB-1 Soilbox, which has an easy to figure form factor 10. Model SB-1 is made of strong plastic resins, allowing for rugged field use. The wall material is clear for easy visual inspection and cleaning.
-
Features
- 4.5-digit display.
- 0.01 Ohm to 3.3 MOhm ranges.
- Simple push-button operation.
- Weather / impact resistant Pelican case
- Internal rechargeable 12V battery.
- Low battery indicator.
- AC adapter.
- Quick Instructions in lid of instrument.
- Up to 50-foot pin separations
- 4-Pin "Wenner" method"
- 3-Pin "Fall of Potential" method
- 2-Pin method
- 1-Pin "Single Rod" method
- Data logger connection
(DL-1 data logger sold separately) - Tinker & Rasor SB-1 Soil Box (sold separately).
-
Specifications
- Resistivity Ranges: 0.01 Ohm to 3.3 MOhm.
- Accuracy: ±10%.
- Operating Temperature: 0-50ºC (32-122ºF).
- Case: Pelican® long-life case with weather-sealed lid.
- Dimensions: 10.75" x 10.75" x 6.5" (273 x 273 x 165 mm)
- Operating Weight: 6 lbs.
- Shipping Weight: 7 lbs.
