Model T-1 Above Ground Test Station by Tinker & Rasor
- Three-Terminal Cathodic Protection Test Station for 1-1/2" Riser Pipe.
-

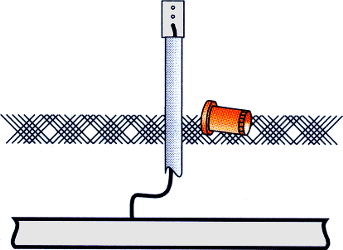

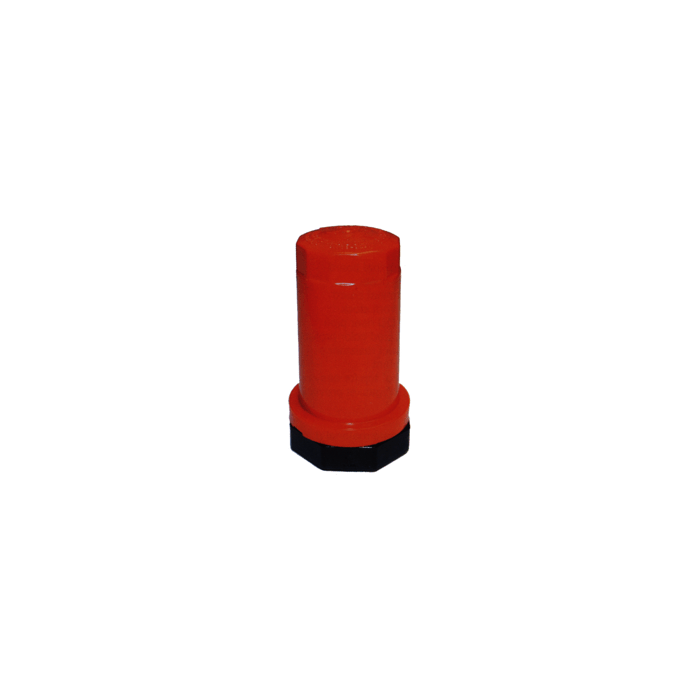

OverviewTinker & Rasor Model T-1 is a three-terminal Cathodic Protection Test Station available from stock. It is made of UV-stabilized, fire-resistant and-impact resistant Lexan® polycarbonate material for long outdoor life. It fits a 1.6" OD riser pipe and is available in seven colors. Reducing adapters are available for smaller O.D.'s. A clear terminal board has three terminal holes at 1" centers. Steel screws and nuts are made of stainless steel for corrosion resistance.
-
Features
- 7 colors from stock.
- UV-stabilized color protection3-hole clear terminal board.
- 3 rapid-connect binding posts.
- 3 terminal positions with 2 terminals (standard).
- Fire resistant.
- Impact resistant.
- Fits 1.6" OD riser pipe.
- Easy Grip" top for easy opening with gloves.
- "Anti-Spin" gasket prevents twisting.
- Shunts and accessories available (see below).
Riser pipe reducer:
1.6" to 1"Bonding straps Shunts:
0.001Ω, 0.01Ω, 0.1Ω -
Specifications
Construction
Lexan® polycarbonate.
Stainless steel screws and nuts.Environmental
-76°C to 122°C (-105°FT to 252°F)
Dimensions, terminal board
1.89" x 3.75" (48 x 95.25 mm)
Dimensions, cover
2.3" x 3.3" (58 x 83.8 mm)
Shipping weight
0.5 lbs (0.227 kg)
Shipping dimensions
6" x 6" x 4" (152 x 152 x 102 mm)
