Model T-2 & T-4 Condulet Test Stations by Tinker & Rasor
Use with 3/4" or 1" Threaded Pipe. Exposed Test Terminal Design.
Overview

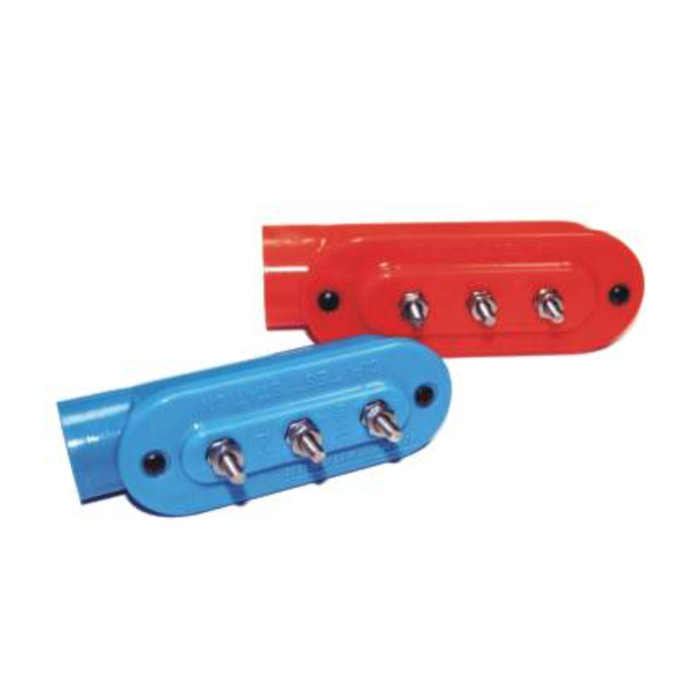

Tinker & Rasor Models T-2 and T-4 CP are "Condulet" style Cathodic Protection Test Stations. Model T-2 fits existing NPT threaded 3/4" OD riser pipe. Model T-4 fits existing NPT threaded 1" OD riser pipe. The test stations include three (3) external binding posts, which are set on one-inch centers to accommodate accessories such as bonding Z straps and shunts. Models T-2 and T-4 may also be customized to include more binding posts or banana plugs. Seven colors are available from stock.
Both models are made of UV-stabilized, fire-resistant and-impact resistant Lexan® polycarbonate material for long outdoor life. Binding posts are steel for corrosion resistance.

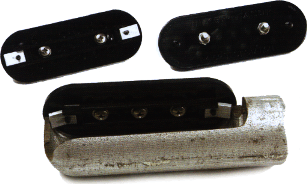

New terminal cover design available that allows multiple terminal layouts and retrofit of terminal cover to metal cases.
The attachment clips lie in a channel, so that the clips do not spin while attaching the terminal board.
Features
3+ hole terminal board.
3 stainless steel binding posts.
External terminals.
7 colors available from stock.
UV-stabilized color protection.
Fits 3/4" or 1" OD riser pipe (Model T-2 or T-4).
High impact resistance.
Fire resistance.
Gasket seal to protect insides.
Specifications
Construction
Lexan® polycarbonate. Zinc plated binding posts.
Environmental
-76°C to 122°C (-105°F to 252°F)
Dimensions, terminal board
5.3" x 3.52" (134.6 x 89.4 mm)
Dimensions, cover
5.1" x 4.4" (129.5 x 111.75 mm)
Shipping weight
1 lb (0.45 kg)
Shipping dimensions
6" x 6" x 4" (152 x 152 x 102 mm)
