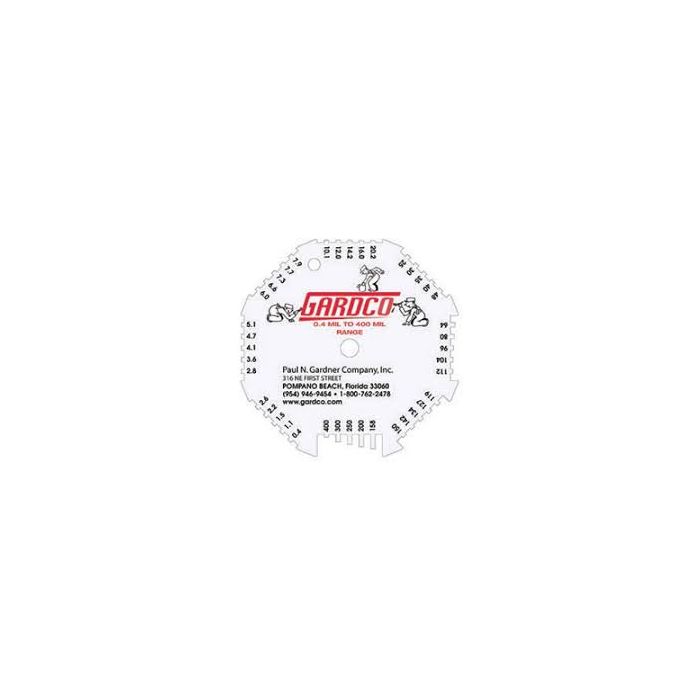

Octagon Wet Film Thickness Gauge (0.4 - 400 Mil) by Gardco

SKU#: 120-04005
All-Aluminum - Dual-Sided - Double-Scale Gage in Mils & Microns.

Description

All-purpose range from 0.4 to 400 mils. Uses of the gage range from measuring wet film thickness of fiberglass lay-ups to food glazes and wet paint or coatings that are sprayed, dipped or brushed onto a smooth surface. Can be custom made with your logo in up to five colors.

Specifications

   Scales
   Dimensions
   Range
   Fiberglass lay-up range
   Material
   Specifications

   Mil - Micron
   4-1/2" x 4-1/2” x 0.32"
   0.4 to 400 mils / 10 to 10,000 µm
   25 to 158 mils
   Hard aluminum
   Exceeds ASTM D 4414

40 Scale Divisions

Mil Scale - Side 1
0.4 1.1 1.5 2.2 2.6	2.8 3.6 4.1 4.7 5.1	6.0 6.6 7.3 7.7 7.9	10.1 12.0 14.2 16.0 20.2
25 30 35 40 48	64 80 96 104 112	119 127 134 142 150	158 200 250 300 400
Micron Scale - Side 2
10 28 38 56 66	71 91 104 119 129	152 168 185 `96 201	256 305 361 406 513
635 762 889 1016 1219	1526 2032 2438 2642 2845	3023 3226 3404 3607 3810	4013 5080 6350 7620 10160
