PosiPen by DeFelsko

Description

PosiPen has a very small, unique magnet which can be placed with pin-point accuracy on extremely small parts, and on peaks and valleys. Ideal for measuring non-magnetic coatings such as paint, enamel, plating, hot-dip galvanizing on steel.

Used for:

• Small, hot or hard-to-reach surfaces
• Spot Checks - conveniently fits in a shirt pocket
• Hot Sprayed Coatings


 Ideal for:

• Refineries, petrochemical plants
• Platers - electroplating, chrome, zinc, galvanizing
• Powder coaters

  Simple

• Easy-to-Use
• Lightweight - easy to carry, just like a ball point pen


Durable

• No batteries / electronics
• Rugged - not affected by mechanical shock, acid, oil, water and dust

Accurate

• No user adjustment required
• Certificate of Calibration traceable to NIST included
• Highly wear resistant probe tip for long life and continuous accuracy

Operation

Step 1. Place the tip of the PosiPen on the coated surface and allow the magnet to contact.

Step 2. Pull the PosiPen straight back from the object to be measured while keeping close watch on the appropriate indicator.

Note the reading when the magnet releases.

Hover over image for demonstration

Triple Indicator: compensates for gravity

The PosiPen compensates for gravity when measuring in different positions.

1. Use the red/silver joining line when the Gage is horizontal (walls).
2. Use the green line when the Gage is pointing straight down (green/ground).
3. Use the blue line when the Gage is pointing straight up (blue/sky).

Technical Data

Each PosiPen has two scales mils (inch) and microns (metric)

Conforms to National and International Standards including ASTM D7091/B499, ISO 2808 and others

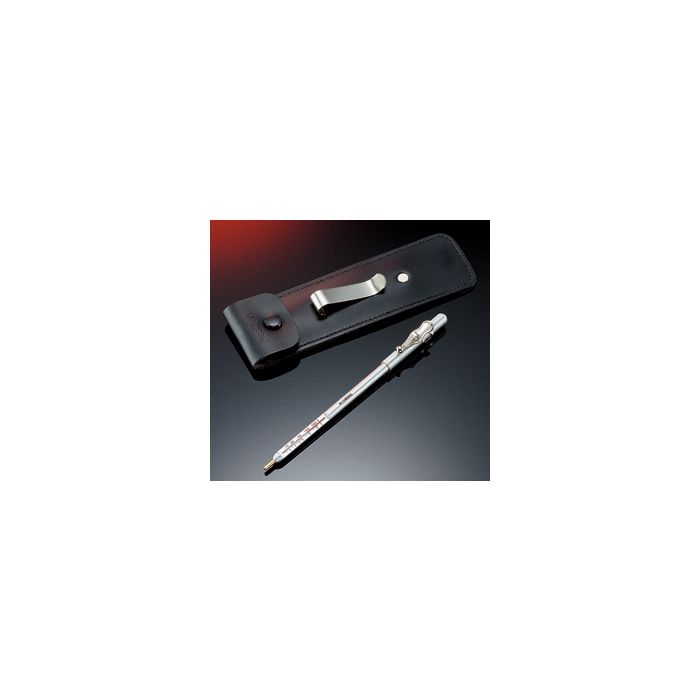

Gage comes complete with:

• leather pouch
• instructions
• Certificate of Calibration traceable to NIST
• two (2) year warranty.
