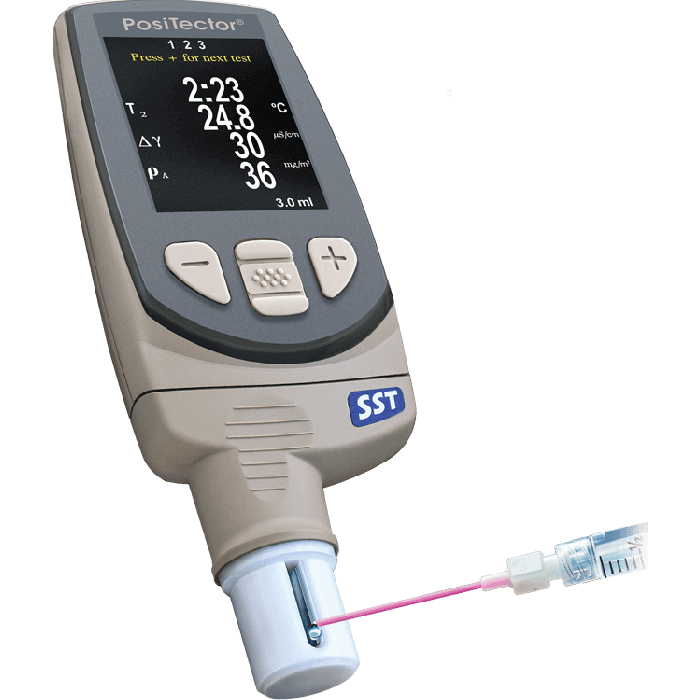

Positest SST

Soluble Salt Tester for measuring the concentration of soluble salts on metal surfaces
Measures the concentration of soluble salts (salt contamination) on metal surfaces in accordance with ISO 8502-6, 8502-9.
- Conductivity probe specifically designed for ISO 8502-6, 9
- Displays test duration, sample temperature, conductivity (µS/cm) and surface density (mg/m2 or µg/cm2)
- Easy 1-2-3 gage interface guides users through the Bresle test method
- Automatic storage of a background (blank) measurement — handy when performing multiple tests
- PosiTector interchangeable platform – attach any PosiTector probe to a single gage body
- USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
- Certificate of Calibration showing traceability to NIST included (Long Form)
Conforms to ISO 8502-6/8502-9, US Navy NSI 009-32, US Navy PPI 63101-000, Navy NAVSEA 009-32, AS 3894.6, IMO MSC.215(82), IMO MSC.244(83), SSPC Guide 15, ISO 11127-6, ASTM D4940
Simple

Conductivity probe specifically designed for ISO 8502-6,9

Displays test duration, sample temperature, conductivity (µS/cm) and surface density (mg/m2 or µg/cm2)

Easy 1-2-3 gage interface guides users through the Bresle test method

Automatic storage of a background (blank) measurement — handy when performing multiple tests
Durable

Solvent, acid, oil, water and dust resistant - weatherproof

Shock-absorbing, protective rubber holster with belt clip

Two year warranty on gage body AND probe
Accurate

Certificate of Calibration showing traceability to NIST (Long Form)

Includes certified conductivity standard (calibration solution) to verify probe accuracy. Certificate included.

Automatic temperature normalization and sample temperature reporting

Conforms to ISO 8502-6/8502-9, US Navy NSI 009-32, US Navy PPI 63101-000, AS 3894.6, IMO MSC.215(82), IMO MSC.244(83), SSPC Guide 15, ISO 11127-6, ASTM D4940
Versatile

Ideal for determination of water-soluble contaminants in non-metallic blast media

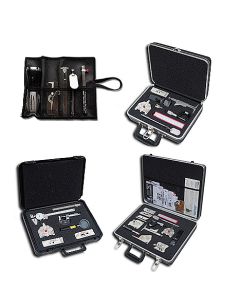

A selection of kits include everything needed to retrieve and analyze soluble salts on surfaces

Adjustable for various patch volumes

Selectable display languages

High contrast backlit display for bright or dark environments

Flip display enables right-side-up viewing

Uses alkaline or rechargeable batteries (built-in charger)
Powerful

Tracks test duration in accordance with ISO 8502-6

Sealed USB port for fast, simple connection to a PC and to supply continuous power. USB cable included

Software Updates via web keep your gage current

Screen Capture – record and save image into USB flash memory for record keeping and review

Software Solutions for viewing, analyzing & reporting data

Every stored measurement is date and time stamped
Specifications

Range

0 – 1500 μS/cm
0 – 6000 mg/m2
0.0 – 600.0 μg/cm2

Resolution*

1 μS/cm, 1mg/m2, 0.1 μg/cm2

Accuracy

± 2 μS/cm (0 – 200 μS/cm)
± 10 μS/cm (>200 – 600 μS/cm)
± 20 μS/cm (>600 – 1500 μS/cm)

Temperature Range

0 – 50° C (32 – 122° F)

Normalization Temperature

25° C (77° F)

Test Cell Volume

1 ml

Size

165 x 61 x 28 mm (6.5" x 2.4" x 1.1")

Weight

140 g (4.9 oz.) without batteries

* Hi Res Mode 0.1 μS/cm (0 - 200 μS/cm)
PosiTector SST Full Instruction Manual

PDF Document

PosiTector SST Literature

PDF Document

PosiTector SST Quick Guide

PDF Document
