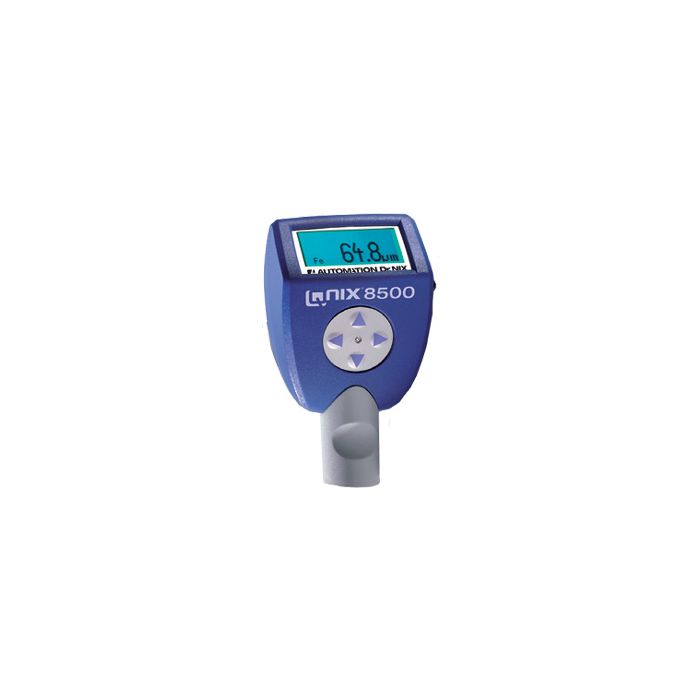

Qnix 8500, Basic, Ferrous & Non-Ferrous, Digital Dual Probe, 0-80 mils, by TestCoat
- SKU#: 120-01027
- A modular system with interchangeable probes
$1,800.00
-
Description
The QNix 8500 allows you to accurately measure coating thickness on iron and steel substrates as well as non-magnetic metal substrates, such as aluminum, zinc, copper, brass and stainless steel. The gauge features a modular system with interchangeable probes.
In addition, you will benefit from bi-directional wireless communication with your PC, multiple calibration options and a configurable language setting. Whether implementing a quality control management program, inspecting an outdoor structure, or using them on a liquid or powder line, this gauge will improve your job performance.
Display
- Clear graphic display with high resolution
- All languages can be downloaded with QNix Software
Keypad - State of the art keypad with illuminated keys
- Elegant modern design for One-Hand-Operation
- Modular system with exchangeable digital probes
- Durable chasis for on-site operations
- Basic and Premium version available
- Backlit display
- Flip option by 180 degrees
- Two color LED display to read measurement process, data transfer and monitoring of limits
-
Technical Data
Technical Data Fe-Probe: Measurements on iron and steel substrates NFe-Probe: Measurements on non-magnetic metal substrates, such as aluminum, zinc, copper, brass, stainless steel Range: See specification of probes. With exchangeable probes - up to 5 mm measuring range Resolution: 0.1 μm 0 to 99.9 μm
1 μm 100 to 999 μm
0.01 mm ±1.00 mm0.01 mil 0 to 9.99 mil
0.1 mil 10 to 100 mil
1 mil > 100 milAccuracy (* of reading): ±(1 μm + 2%*)
±(0.04 mil + 2%)
±3.5%*0 to 2000 μm
0 to 80 mil
> 2000 μm (80 mil)(factory calibration on zero reference plates supplied with the gauge)
With the one-point or two-point calibration the accuracy can still be improved using the optionally available test shims.Minimum Area: Fe-Probe: 20 x 20 mm2 (0.8” x 0.8”) NFe-Probe: 20 x 20 mm2 (0.8” x 0.8”) Min Curvature: Convex: 5 mm (0.2”) Concave: 30 mm (1.2”) Min Substrate Thickness: Fe-Probe: 0.2 mm (8 mil) NFe-Probe: 0.05 mm (2 mil) Interface: wireless 2.4 GHz, range max. 10 m (30 ft.) in undisturbed environment Temp. Range: Storage: 32°F to 122°F (0°C to 50°C) Operation: 14°F to 140°F (-10°C to 60°C) Power Supply: 2 x AA batteries 1.5V Alkali, or 2 x AA rechargeable batteries 1.2V Dimensions: 124 mm x 67mm x 33 mm (4.9” x 2.6” x 1.3”) Weight: ca. 120 g (4.3 oz) gauge with batteries and probe Wireless Probes must remain plugged into Gage for approx. 5 hours to fully charge.
