Resin Splice Kits for Non-Shielded Cable by 3M

Scotchcast™ Wye Resin Splicing Kit:
82-B1, Voltage Rating up to 5 kV non-shielded

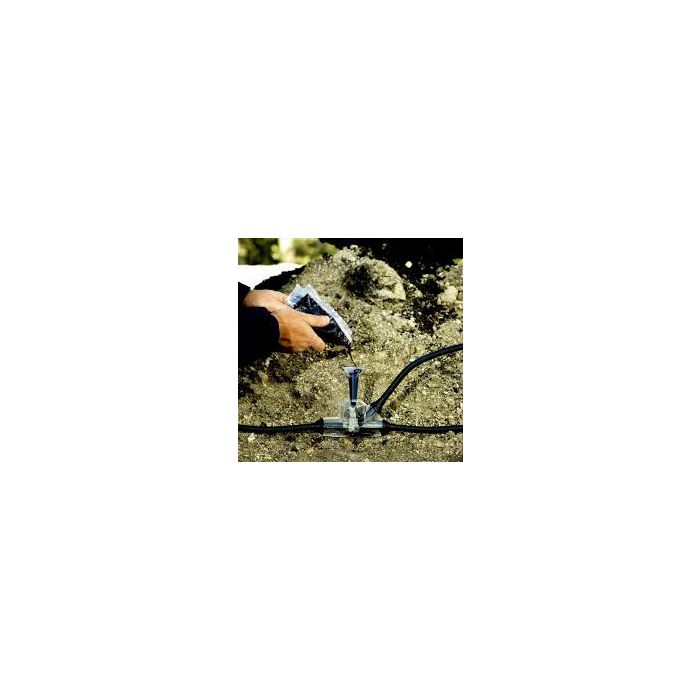

The 82-B1 kit insulates and moisture seals wye splices on non-shielded cable through 5 kV and on multi-conductor cables through 1000V. Its rigid two-part transparent molds snap around splices for a tailor-made field splice. Within 30 minutes after the resin is poured, the splice is ready for a long, reliable life. The kit contains Scotchcast 4 electrical insulating resin. This kit may be used for above ground or direct buried applications.

 Ordering Information

Product UPC	Voltage Rating	Connector split bolt (max)	Connector crimped (max)	Max Cable O.D.
82-B1 25057	5 kV single con. 1000V multiple cond.	4 AWG	2 AWG (19 mm)	.250" - .625" (6 -16 mm)

Scotchcast™ Wye Resin Splicing Kit:
90-B1, Voltage Rating up to 1000V

The 90-B1 insulates and moisture-seals wye splices made with the split-bolt type connectors on cable rated through 1000V. Each kit contains a snap-together mold body which fits around the splice, two funnels, tape for sealing mold ends and Scotchcast 4 epoxy electrical insulating resin in a Unipak container for clean and easy handling. These kits may be used for above ground or direct buried applications.

Product UPC	Voltage Rating	Connector split bolt (max)	Connector crimped (max)	Max Cable O.D.
90-B1 25115	1000V	1/0 AWG	2/0 AWG (19 mm)	run .50" - .812" (13 - 21 mm) tap max .375" (10 mm)

Scotchcast™ Flexible Power Cable Splicing Kit:
82-B, Voltage Rating up to 1000V

Ordering Information

Product UPC	Voltage Rating	Conductor Size Range	No. of Conductors
82-BF1 08309	1000V	Up to 1/0 AWG (50 mm)	1
	1000V	-	Multi

Scotchcast™ Multi-Mold Resin Splicing Kit for Non-Shielded Cable:  85 Series, Voltage Rating up to 1000V

Ordering Information

Product UPC	Voltage Rating	Connector Type	Max Conductor Size
85-10 11846	1000V	Split bolt compression H or C tap	8 AWG str. 4 AWG str.
85-12 11847	1000V	Split bolt compression H or C tap	1 AWG str. 2/0 AWG str.
85-14 11848	1000V	Split bolt compression H or C tap	2/0 AWG str. 4/0 AWG str.
85-16 02403	1000V	Inline compression split bolt	750 kcmil str. 250 kcmil (run); 2/0 AWG str. (tap)
		Compression H or C tap	500 kcmil (run) 4/0 AWGH str. (tap)

Scotchcast Re-Enterable Signal and Control Splicing Kits:
78-R Series, Voltage Rating up to 1000V

The 78-R series is for use on shielded or non-shielded plastic or rubber jacketed signal and control cable. A specially formulated compound allows inline or tap splices to be re-opened for splice re-work and the mold body reused. Only normal hand tools are required.

The Scotchcast 2114 re-enterable compound is mixed in and poured from the Unipak™ container for clean, easy handling and fast curing.

The series provides an excellent Moisture seal, allowing the splice to be direct buried. PVC mold body and end caps resist acids, detergents, chemicals and other harmful elements.

Ordering Information

Product UPC	Cable O.D Range		Kit Size I.D. x L
	Run	Tap
78-R1 02411	.25" - 1.00" (6 - 25 mm)	.25" - 1.00" (6 - 25 mm)	2" x 12"
78-R2 02412	.25" - 1.00" (6 - 25 mm)	.25" - 1.00" (6 - 25 mm)	2" x 24"
78-R3 02413	.50" - 1.50" (13 - 38 mm)	.50" - 1.00" (13 - 25 mm)	3" x 24"
78-R4 02414	.50" - 2.00" (13 - 51 mm)	.50" - 1.75" (13 - 44 mm)	4" x 24"
78-R5 02417	1.00" - 2.50" (25 - 64 mm)	1.00" - 2.50" (25 - 64 mm)	5" x 26"

Scotchcast™ In-Line Resin Splicing Kits:
82A Series, Voltage Rating up to 5 kV non-shielded,
UL 486D listed, File #El 02356

Ordering Information

Product UPC	Voltage Rating	Conductor size	Max cable O.D.	Max Conn O.D. sleeve type
82-A 25016	5 kV	10 - 2 AWG (6 - 30 mm)	.750" (19 mm)	.406" (10 mm)
82-A1 25024	5 kV	Up to 2 AWG (30 mm)	.625" (16 mm)	.406" (10 mm)
82-A2 25032	5 kV	2 3/0 AWG (35 - 80 mm)	1.0" (25 mm)	.625" (16 mm)
82-A3 25040	5 kV	3/0 AWG - 400 kcmil (90 - 200 mm)	1.438" (40 mm)	1.0" (25 mm)

3M Brand Three-Conductor Inline Splicing Kits for Non-Shielded Cable:
5750 Series, Voltage Rating of 5 kV or Less

The 5750 series is designed for splicing non-shielded armored or non-armored cables with aluminum or copper conductors. The kits are designed for use in cable trays, direct immersion, underground or above ground applications.

Scotchcast compound 2130 in the Unipak container is provided for clean and easy handling, and is used to replace the cable armor or jacket.

 Ordering Information

Product UPC	Conductor size, 1000V or less, copper/aluminum	Conductor size, 5 kV copper/aluminum
5751 08310	6 - 1 AWG (14 - 38 mm)	6 - 4 AWG (14 - 16 mm)
5752 08311	1/0 - 4/0 AWG (60 - 100 mm)	2 - 4/0 AWG (3 - 100 mm)
5753 08312	250 - 750 kcmil (125 - 325 mm)	250 -500 kcmil (125 - 250 mm) 250 -750 kcmil copper only (125 - 325 mm)

Scotchcast Signal and Control Cable Inline Splicing Kits:
72-N Series, Voltage Rating up to 1000V

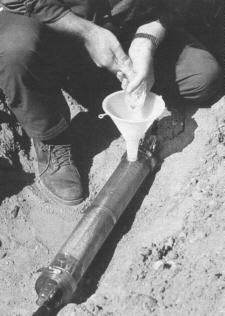

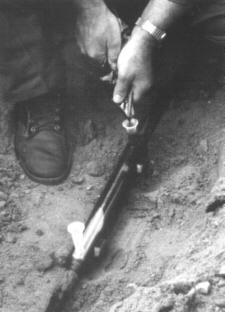

The 72-N series is for use on shielded or non-shielded plastic or rubber jacketed signal and control cable. The 72-N series makes splicing easy - just snap the molds around the splice bundle, seal the ends and pour in the compound.

Each kit contains two plastic molded body halves that snap together for easy inspection of compound during and after pouring, tape for sealing mold ends, jumper wire for shield continuity (except 72-N1) and Scotchcast 2104 compound poured from the Unipak container for clean and easy handling. No special tools are required.

The completed splice is designed for use in weather exposed, direct bury or submerged locations.

Ordering Information

Product UPC	Cable O.D Range Min - Max	Mold Body Length
72-N1 10623	.250" - .625" (6 - 16 mm)	7-1/8"
72-N2 10625	.500" - 1.00" (13 - 25 mm)	10-9/16"
72-N3 10627	.625" - 1.50" (16 - 38 mm)	15-7/16"
72-N4 10627	1.00" - 2.00" (25 - 51 mm)	15-5/8"
72-N5 10631	1.25" - 2.25" (35 - 57 mm)	20-5/16"
72-N6 10633	1.25" - 3.25" (32 - 83 mm)	25"
