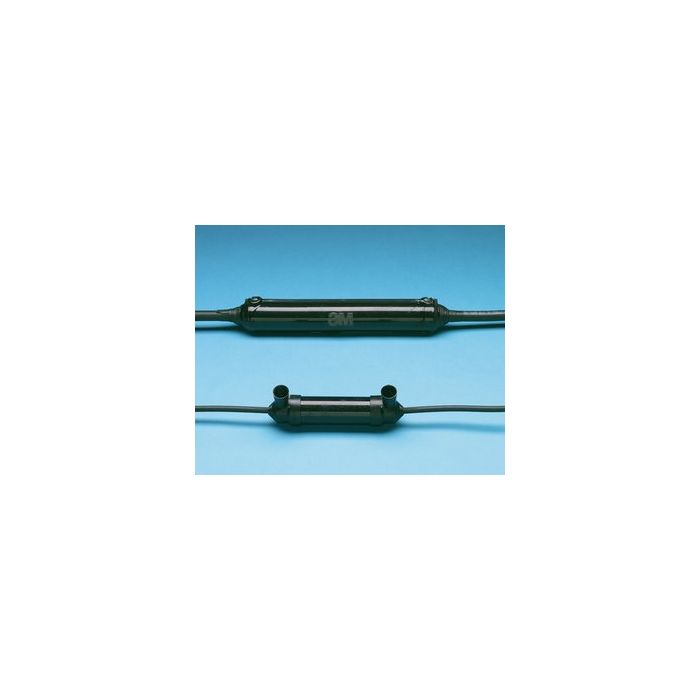

Scotchcast #82-A2N Cable Splice Kit by 3M
- SKU#: 12-20030
- Straight Splice for #2 to #3/0 AWG Cables. Use in Weather-Exposed or Direct-Burial Locations.
$117.42
-
Description
Use the Scotchcast kit 82-A series to insulate and seal single conductor, unshielded cable splices through 5 kV and multiple conductor cables through 1 kV. Designed for use in weather-exposed or direct-burial locations. For making inline (straight) splices on unshielded,synthetic insulated cables rated up to a maximum of 5kV and for multiple conductor cables rated up to a maximumof 1kV. UL Listed for direct burial and submerged applications up to 600 volts and 90°C. For use with UL Listed connectors only.
These kits will accommodate the following connectors and conductor sizes:Kit. No UPC Max. Cable O.D. Max Connector O.D. Conductor Size Inner Pack Case Qt. 82-A2 25032 1.000"
(25 mm)0.625"
(16 mm)2 - 30 AWG
(35 - 80 mm2)1/box 10
-
Specifications
China RoHS - Below MCV Yes Conductor Sizes for 5 kV 10 AWG, 2 AWG, 4 AWG, 8 AWG EU RoHS Compliant Yes Insulation O.D. Range 0.406 - 0.750 Inch Product Series 82-A Series Product Technology Resin Product Type Splice Shielding Type Multiple Conductor Portable Cable, Non-Shielded, Single Conductor Portable Cable Splice Type Inline Voltage 1 kV, 5 kV
