Slotted Vent Pipe For Deep-well Anodes by Farwest Corrosion

Used in Deep Anode Wells to Displace Chlorine Gas
  • Description

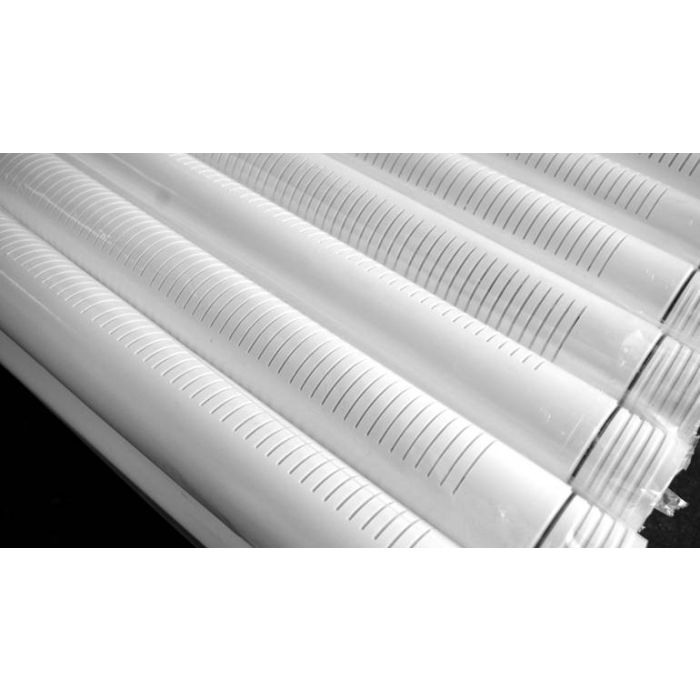

    Slotted PVC vent pipe, also known as well screen in the water industry, is a specialty product that can be used in cathodic protection deep anode wells to displace chlorine gas generated by the discharge of DC current from the impressed current anodes.  This pipe can also be used in other cathodic protection applications such as undertank reference electrode access or other specialty uses.


    Product Details

    • Pipe Sizes: 1" to 12" diameter
    • Pipe Length: Up to 20 ft. per section
    • Pipe Wall: SCH 40 or SCH 80
    • Pipe Ends: Plain, belled or threaded
    • If threaded, select 4 or 8 threads per inch



    Slot Details

    • Slot Width (in inches): .006, .008, .010, .020, .025, .030, .040, .050, .060, .080, .100, .125, .250, .375, .500
    • Slot Rows:  1 to 10
    • Slot Length: As specified and depends on number of rows
    • Slot Spacing: As specified



    Farwest customer service personnel can assist you with the selection of the appropriate vent pipe size and style to fit your needs.
