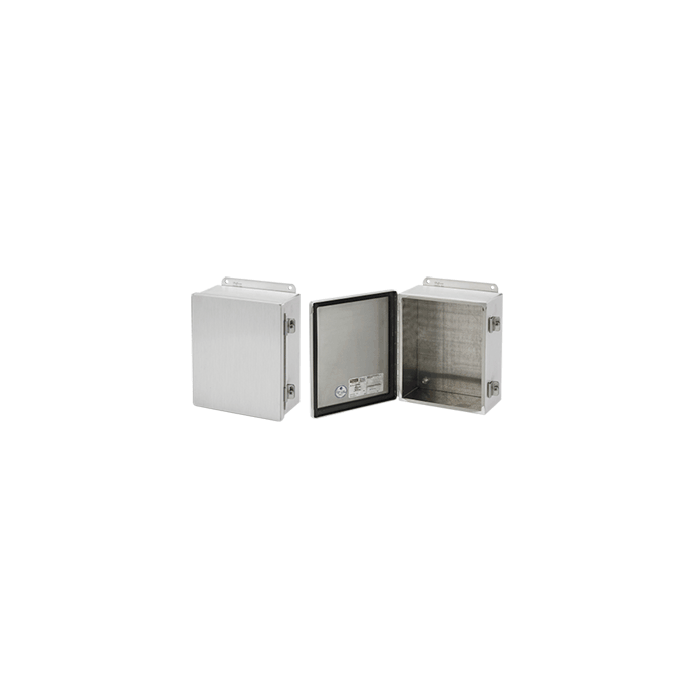

Lightweight Enclosures Protect Components for Indoor Use
Description
minus-circle
plus-circle
Lightweight aluminum enclosures protect components and controls in indoor applications.
Specifications
Type 5052 H-32 aluminum .080-in. (2-mm) thick Seams continuously welded and ground smooth Stainless steel screws and clamps secure cover Cover removed by pulling stainless steel continuous hinge pin Oil-resistant gasket Weldnuts furnished for mounting optional panels and terminal block kits
Finish Enclosures are unpainted. Cover and sides of body have smooth brushed finish. Accessories Industrial Corrosion Inhibitors
Fast-Operating Clamp-Cover Junction Box Clamp
Lock Kit for Clamp Cover Junction Boxes
Panels for Junction Boxes
Junction Box and Wall-Mount Enclosure Swing Out Panel Kit
Drawings
minus-circle
plus-circle
Drawings
Standard Product
Catalog Number AxBxC in./mm Aluminum Panel Steel Panel Conductive Panel Panel Size Mounting Overall LxW in./mm
A606CHAL 6.00 x 6.00 x 4.00 152 x 152 x 102 A6P6AL A6P6 A6P6G 4.88 x 4.88 124 x 124 6.75 x 4.00 171 x 102
7.50 x 6.94 191 x 176
A8064CHAL 8.00 x 6.00 x 4.00 203 x 152 x 102 A8P6AL A8P6 A8P6G 6.75 x 4.88 171 x 124 8.75 x 4.00 222 x 102 9.50 x 6.94 241 x 176
A1008CHAL 10.00 x 8.00 x 4.00 254 x 203 x 102 A10P8AL A10P8 A10P8G 8.75 x 6.88 222 x 175 10.75 x 6.00 273 x 152 11.50 x 8.94 292 x 227
A12106CHAL 12.00 x 10.00 x 6.00 305 x 254 x 152 A12P10AL A12P10 A12P10G 10.75 x 8.88 273 x 225 12.75 x 8.00 324 x 203 13.50 x 10.94 343 x 278
A1412CHAL 14.00 x 12.00 x 6.00 356 x 305 x 152 A14P12AL A14P12 A14P12G 12.75 x 10.88 324 x 276 14.75 x 10.00 375 x 254 15.50 x 12.94 394 x 329
A1614CHAL 16.00 x 14.00 x 6.00 406 x 356 x 152 A16P14AL A16P14 A16P14G 14.75 x 12.88 375 x 327 16.75 x 12.00 425 x 305 17.50 x 14.94 445 x 379
Catalog Number F in./mm J in./mm P in./mm T in./mm V in./mm Y in./mm
A606CHAL 3.50 89 3.56 90 2.38 60 5.00 127 0.31 8 0.56 14
A8064CHAL 3.50 89 3.56 90 3.38 86 5.00 127 0.25 6 0.62 16
A1008CHAL 3.50 89 3.56 90 1.50 38 7.00 178 0.25 6 0.62 16
A12106CHAL 5.50 140 5.56 141 2.00 51 9.00 229 0.25 6 0.62 16
A1412CHAL 5.50 140 5.56 141 3.00 76 11.00 279 0.25 6 0.62 16
A1614CHAL 5.50 140 5.56 141 1.50 38 13.00 330 0.25 6 0.62 16
Purchase panels separately Purchase perforated panels separately
Lightweight aluminum enclosures protect components and controls in indoor applications.
Specifications
Type 5052 H-32 aluminum .080-in. (2-mm) thick Seams continuously welded and ground smooth Stainless steel screws and clamps secure cover Cover removed by pulling stainless steel continuous hinge pin Oil-resistant gasket Weldnuts furnished for mounting optional panels and terminal block kits
Finish Enclosures are unpainted. Cover and sides of body have smooth brushed finish. Accessories Industrial Corrosion Inhibitors
Fast-Operating Clamp-Cover Junction Box Clamp
Lock Kit for Clamp Cover Junction Boxes
Panels for Junction Boxes
Junction Box and Wall-Mount Enclosure Swing Out Panel Kit
Drawings
Standard Product
Catalog Number AxBxC in./mm Aluminum Panel Steel Panel Conductive Panel Panel Size Mounting Overall LxW in./mm
A606CHAL 6.00 x 6.00 x 4.00 152 x 152 x 102 A6P6AL A6P6 A6P6G 4.88 x 4.88 124 x 124 6.75 x 4.00 171 x 102
7.50 x 6.94 191 x 176
A8064CHAL 8.00 x 6.00 x 4.00 203 x 152 x 102 A8P6AL A8P6 A8P6G 6.75 x 4.88 171 x 124 8.75 x 4.00 222 x 102 9.50 x 6.94 241 x 176
A1008CHAL 10.00 x 8.00 x 4.00 254 x 203 x 102 A10P8AL A10P8 A10P8G 8.75 x 6.88 222 x 175 10.75 x 6.00 273 x 152 11.50 x 8.94 292 x 227
A12106CHAL 12.00 x 10.00 x 6.00 305 x 254 x 152 A12P10AL A12P10 A12P10G 10.75 x 8.88 273 x 225 12.75 x 8.00 324 x 203 13.50 x 10.94 343 x 278
A1412CHAL 14.00 x 12.00 x 6.00 356 x 305 x 152 A14P12AL A14P12 A14P12G 12.75 x 10.88 324 x 276 14.75 x 10.00 375 x 254 15.50 x 12.94 394 x 329
A1614CHAL 16.00 x 14.00 x 6.00 406 x 356 x 152 A16P14AL A16P14 A16P14G 14.75 x 12.88 375 x 327 16.75 x 12.00 425 x 305 17.50 x 14.94 445 x 379
Catalog Number F in./mm J in./mm P in./mm T in./mm V in./mm Y in./mm
A606CHAL 3.50 89 3.56 90 2.38 60 5.00 127 0.31 8 0.56 14
A8064CHAL 3.50 89 3.56 90 3.38 86 5.00 127 0.25 6 0.62 16
A1008CHAL 3.50 89 3.56 90 1.50 38 7.00 178 0.25 6 0.62 16
A12106CHAL 5.50 140 5.56 141 2.00 51 9.00 229 0.25 6 0.62 16
A1412CHAL 5.50 140 5.56 141 3.00 76 11.00 279 0.25 6 0.62 16
A1614CHAL 5.50 140 5.56 141 1.50 38 13.00 330 0.25 6 0.62 16
Purchase panels separately Purchase perforated panels separately
