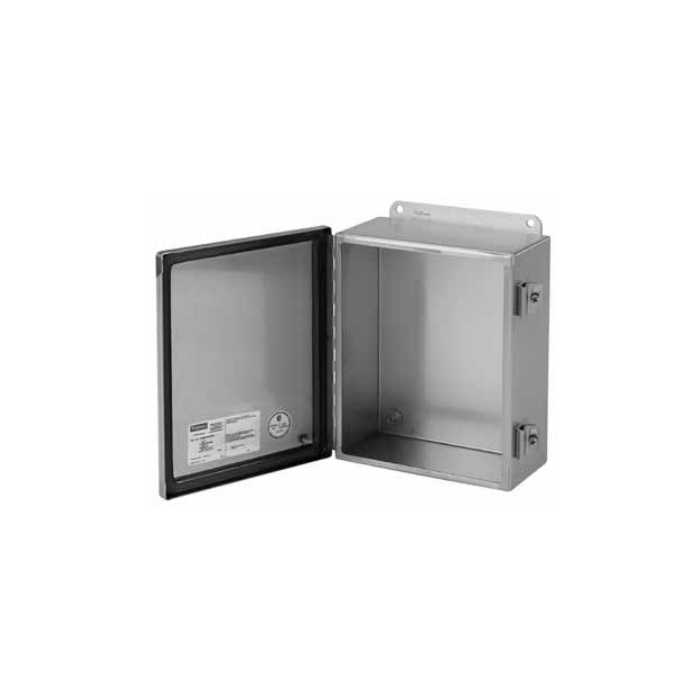

Stainless Steel Enclosures, Small, NEMA 4X, for Cathodic Protection by Farwest Corrosion
Rugged, Seamless Enclosure with Gasket for a Reliable Seal
Description
Application Used in either indoor or outdoor applications, these enclosures combine a rugged continuous hinge, seamless foam-in-place gasket and stainless steel screw-down clamps for a reliable seal that protects components from corrosive environments.
Specifications
16 and 14 gauge Type 304 or 316L stainless steel
Seams continuously welded and ground smooth
Seamless foam-in-place gasket
Stainless steel screws and clamps
Pull stainless steel continuous hinge pin to remove door
Weldnuts provided for mounting optional panels and terminal block kits
Bonding provision on door and body
Finish
Cover and sides of body have smooth #4 brushed finish.
Accessories
Fast-Operating Clamp-Cover Junction Box Clamp Lock Kit for Clamp Cover Junction Boxes Panels for Junction Boxes Terminal Block Kit Assembly for Junction Boxes Overview
Modification and Customization
Hoffman excels at modifying and customizing products to your specifications. Contact your local Hoffman sales office or distributor for complete information.
Drawings
Standard Product Solid Cover with Quick-Release Latches
Catalog Number
AxBxC in./mm
Stainless Steel Type
UL Listed
Body Gauge
Cover Gauge
Cond. Panel
Panel Size DxE in./mm
A6044CHNFSS
6.00 x 4.00 x 4.00 152 x 102 x 102
304
508A
16
16
A6P4G
4.88 x 2.88 124 x 73
A606CHNFSS
6.00 x 6.00 x 4.00 152 x 152 x 102
304
50, 50E
16
16
A6P6G
4.88 x 4.88 124 x 124
A8064CHNFSS
8.00 x 6.00 x 4.00 203 x 152 x 102
304
50, 50E
14
16
A8P6G
6.75 x 4.88 171 x 124
A1008CHNFSS
10.00 x 8.00 x 4.00 254 x 203 x 102
304
50, 50E
14
16
A10P8G
8.75 x 6.88 222 x 175
A12106CHNFSS
12.00 x 10.00 x 6.00 305 x 254 x 152
304
50, 50E
14
16
A12P10G
10.75 x 8.88 273 x 225
A1212CHNFSS
12.00 x 12.00 x 6.00 305 x 305 x 152
304
50, 50E
14
16
A12P12G
10.75 x 10.88 273 x 276
A1412CHNFSS
14.00 x 12.00 x 6.00 356 x 305 x 152
304
50, 50E
14
16
A14P12G
12.75 x 10.88 324 x 276
A1614CHNFSS
16.00 x 14.00 x 6.00 406 x 356 x 152
304
508A
14
16
A16P14G
14.75 x 12.88 375 x 327
A6044CHNFSS6
6.00 x 4.00 x 4.00 152 x 102 x 102
316L
50, 50E
16
16
A6P4G
4.88 x 2.88 124 x 73
A606CHNFSS6
6.00 x 6.00 x 4.00 152 x 152 x 102
316L
50, 50E
16
16
A6P6G
4.88 x 4.88 124 x 124
A8064CHNFSS6
8.00 x 6.00 x 4.00 203 x 152 x 102
316L
50, 50E
14
16
A6P4G
6.75 x 4.88 171 x 124
A1008CHNFSS6
10.00 x 8.00 x 4.00 254 x 203 x 102
316L
50, 50E
14
16
A10P8G
8.75 x 6.88 222 x 175
A12106CHNFSS6
12.00 x 10.00 x 6.00 305 x 254 x 152
316L
50, 50E
14
16
A12P10G
10.75 x 8.88 273 x 225
A1212CHNFSS6
12.00 x 12.00 x 6.00 305 x 305 x 152
316L
50, 50E
14
16
A12P12G
10.75 x 10.88 273 x 276
A1412CHNFSS6
14.00 x 12.00 x 6.00 356 x 305 x 152
316L
50, 50E
14
16
A14P12G
12.75 x 10.88 324 x 276
A1614CHNFSS6
16.00 x 14.00 x 6.00 406 x 356 x 152
316L
50, 50E
14
16
A16P14G
14.75 x 12.88 375 x 327
Catalog Number
Mounting GxH in./mm
Overall LxW in./mm
F in./mm
J in./mm
N in./mm
T in./mm
V in./mm
Y in./mm
A6044CHNFSS
6.75 x 2.00 171 x 51
7.50 x 4.94 191 x 125
3.50 89
3.62 92
2.38 60
3.00 76
0.31 8
0.56 14
A606CHNFSS
6.75 x 4.00 171 x 102
7.50 x 6.94 191 x 176
3.50 89
3.62 92
2.38 60
5.00 127
0.31 8
0.56 14
A8064CHNFSS
8.75 x 4.00 222 x 102
9.50 x 6.94 241 x 176
3.50 89
3.62 92
1.38 35
5.00 127
0.25 6
0.62 16
A1008CHNFSS
10.75 x 6.00 273 x 152
11.50 x 8.94 292 x 227
3.50 89
3.62 92
1.38 35
7.00 178
0.25 6
0.62 16
A12106CHNFSS
12.75 x 8.00 324 x 203
13.50 x 10.94 343 x 278
3.50 89
5.62 143
2.38 60
9.00 229
0.25 6
0.62 16
A1212CHNFSS
12.75 x 10.00 324 x 254
13.50 x 12.94 343 x 329
3.50 89
5.62 143
2.38 60
11.00 279
0.25 6
0.62 16
A1412CHNFSS
14.75 x 10.00 375 x 254
15.50 x 12.94 394 x 329
3.50 89
5.62 143
2.38 60
11.00 279
0.25 6
0.62 16
A1614CHNFSS
16.75 x 12.00 425 x 305
17.50 x 14.94 445 x 379
3.50 89
5.62 143
2.38 60
13.00 330
0.25 6
0.62 16
A6044CHNFSS6
6.75 x 2.00 171 x 51
7.50 x 4.94 191 x 125
3.50 89
3.62 92
2.38 60
3.00 76
0.31 8
0.56 14
A606CHNFSS6
6.75 x 4.00 171 x 102
7.50 x 6.94 191 x 176
3.50 89
3.62 92
2.38 60
5.00 127
0.31 8
0.56 14
A8064CHNFSS6
8.75 x 4.00 222 x 102
9.50 x 6.94 241 x 176
3.50 89
3.62 92
1.38 35
5.00 127
0.25 6
0.62 16
A1008CHNFSS6
10.75 x 6.00 273 x 152
11.50 x 8.94 292 x 227
3.50 89
3.62 92
1.38 35
7.00 178
0.25 6
0.62 16
A12106CHNFSS6
12.75 x 8.00 324 x 203
13.50 x 10.94 343 x 278
5.50 140
5.62 143
2.38 60
9.00 229
0.25 6
0.62 16
A1212CHNFSS6
12.75 x 10.00 324 x 254
13.50 x 12.94 343 x 329
5.50 140
5.62 143
2.38 60
11.00 279
0.25 6
0.62 16
A1412CHNFSS6
14.75 x 10.00 375 x 254
15.50 x 12.94 394 x 329
5.50 140
5.62 143
2.38 60
11.00 279
0.25 6
0.62 16
A1614CHNFSS6
16.75 x 12.00 425 x 305
17.50 x 14.94 445 x 379
5.50 140
5.62 143
2.38 60
13.00 330
0.25 6
0.62 16
A6044CHNFSS and A6044CHNFSS6 UL 508A Listed. The remaining catalog numbers are UL 50 Listed. Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.
Description
Application Used in either indoor or outdoor applications, these enclosures combine a rugged continuous hinge, seamless foam-in-place gasket and stainless steel screw-down clamps for a reliable seal that protects components from corrosive environments.
Specifications
16 and 14 gauge Type 304 or 316L stainless steel
Seams continuously welded and ground smooth
Seamless foam-in-place gasket
Stainless steel screws and clamps
Pull stainless steel continuous hinge pin to remove door
Weldnuts provided for mounting optional panels and terminal block kits
Bonding provision on door and body
Finish
Cover and sides of body have smooth #4 brushed finish.
Accessories
Fast-Operating Clamp-Cover Junction Box Clamp Lock Kit for Clamp Cover Junction Boxes Panels for Junction Boxes Terminal Block Kit Assembly for Junction Boxes Overview
Modification and Customization
Hoffman excels at modifying and customizing products to your specifications. Contact your local Hoffman sales office or distributor for complete information.
Drawings
Standard Product Solid Cover with Quick-Release Latches
Catalog Number
AxBxC in./mm
Stainless Steel Type
UL Listed
Body Gauge
Cover Gauge
Cond. Panel
Panel Size DxE in./mm
A6044CHNFSS
6.00 x 4.00 x 4.00 152 x 102 x 102
304
508A
16
16
A6P4G
4.88 x 2.88 124 x 73
A606CHNFSS
6.00 x 6.00 x 4.00 152 x 152 x 102
304
50, 50E
16
16
A6P6G
4.88 x 4.88 124 x 124
A8064CHNFSS
8.00 x 6.00 x 4.00 203 x 152 x 102
304
50, 50E
14
16
A8P6G
6.75 x 4.88 171 x 124
A1008CHNFSS
10.00 x 8.00 x 4.00 254 x 203 x 102
304
50, 50E
14
16
A10P8G
8.75 x 6.88 222 x 175
A12106CHNFSS
12.00 x 10.00 x 6.00 305 x 254 x 152
304
50, 50E
14
16
A12P10G
10.75 x 8.88 273 x 225
A1212CHNFSS
12.00 x 12.00 x 6.00 305 x 305 x 152
304
50, 50E
14
16
A12P12G
10.75 x 10.88 273 x 276
A1412CHNFSS
14.00 x 12.00 x 6.00 356 x 305 x 152
304
50, 50E
14
16
A14P12G
12.75 x 10.88 324 x 276
A1614CHNFSS
16.00 x 14.00 x 6.00 406 x 356 x 152
304
508A
14
16
A16P14G
14.75 x 12.88 375 x 327
A6044CHNFSS6
6.00 x 4.00 x 4.00 152 x 102 x 102
316L
50, 50E
16
16
A6P4G
4.88 x 2.88 124 x 73
A606CHNFSS6
6.00 x 6.00 x 4.00 152 x 152 x 102
316L
50, 50E
16
16
A6P6G
4.88 x 4.88 124 x 124
A8064CHNFSS6
8.00 x 6.00 x 4.00 203 x 152 x 102
316L
50, 50E
14
16
A6P4G
6.75 x 4.88 171 x 124
A1008CHNFSS6
10.00 x 8.00 x 4.00 254 x 203 x 102
316L
50, 50E
14
16
A10P8G
8.75 x 6.88 222 x 175
A12106CHNFSS6
12.00 x 10.00 x 6.00 305 x 254 x 152
316L
50, 50E
14
16
A12P10G
10.75 x 8.88 273 x 225
A1212CHNFSS6
12.00 x 12.00 x 6.00 305 x 305 x 152
316L
50, 50E
14
16
A12P12G
10.75 x 10.88 273 x 276
A1412CHNFSS6
14.00 x 12.00 x 6.00 356 x 305 x 152
316L
50, 50E
14
16
A14P12G
12.75 x 10.88 324 x 276
A1614CHNFSS6
16.00 x 14.00 x 6.00 406 x 356 x 152
316L
50, 50E
14
16
A16P14G
14.75 x 12.88 375 x 327
Catalog Number
Mounting GxH in./mm
Overall LxW in./mm
F in./mm
J in./mm
N in./mm
T in./mm
V in./mm
Y in./mm
A6044CHNFSS
6.75 x 2.00 171 x 51
7.50 x 4.94 191 x 125
3.50 89
3.62 92
2.38 60
3.00 76
0.31 8
0.56 14
A606CHNFSS
6.75 x 4.00 171 x 102
7.50 x 6.94 191 x 176
3.50 89
3.62 92
2.38 60
5.00 127
0.31 8
0.56 14
A8064CHNFSS
8.75 x 4.00 222 x 102
9.50 x 6.94 241 x 176
3.50 89
3.62 92
1.38 35
5.00 127
0.25 6
0.62 16
A1008CHNFSS
10.75 x 6.00 273 x 152
11.50 x 8.94 292 x 227
3.50 89
3.62 92
1.38 35
7.00 178
0.25 6
0.62 16
A12106CHNFSS
12.75 x 8.00 324 x 203
13.50 x 10.94 343 x 278
3.50 89
5.62 143
2.38 60
9.00 229
0.25 6
0.62 16
A1212CHNFSS
12.75 x 10.00 324 x 254
13.50 x 12.94 343 x 329
3.50 89
5.62 143
2.38 60
11.00 279
0.25 6
0.62 16
A1412CHNFSS
14.75 x 10.00 375 x 254
15.50 x 12.94 394 x 329
3.50 89
5.62 143
2.38 60
11.00 279
0.25 6
0.62 16
A1614CHNFSS
16.75 x 12.00 425 x 305
17.50 x 14.94 445 x 379
3.50 89
5.62 143
2.38 60
13.00 330
0.25 6
0.62 16
A6044CHNFSS6
6.75 x 2.00 171 x 51
7.50 x 4.94 191 x 125
3.50 89
3.62 92
2.38 60
3.00 76
0.31 8
0.56 14
A606CHNFSS6
6.75 x 4.00 171 x 102
7.50 x 6.94 191 x 176
3.50 89
3.62 92
2.38 60
5.00 127
0.31 8
0.56 14
A8064CHNFSS6
8.75 x 4.00 222 x 102
9.50 x 6.94 241 x 176
3.50 89
3.62 92
1.38 35
5.00 127
0.25 6
0.62 16
A1008CHNFSS6
10.75 x 6.00 273 x 152
11.50 x 8.94 292 x 227
3.50 89
3.62 92
1.38 35
7.00 178
0.25 6
0.62 16
A12106CHNFSS6
12.75 x 8.00 324 x 203
13.50 x 10.94 343 x 278
5.50 140
5.62 143
2.38 60
9.00 229
0.25 6
0.62 16
A1212CHNFSS6
12.75 x 10.00 324 x 254
13.50 x 12.94 343 x 329
5.50 140
5.62 143
2.38 60
11.00 279
0.25 6
0.62 16
A1412CHNFSS6
14.75 x 10.00 375 x 254
15.50 x 12.94 394 x 329
5.50 140
5.62 143
2.38 60
11.00 279
0.25 6
0.62 16
A1614CHNFSS6
16.75 x 12.00 425 x 305
17.50 x 14.94 445 x 379
5.50 140
5.62 143
2.38 60
13.00 330
0.25 6
0.62 16
A6044CHNFSS and A6044CHNFSS6 UL 508A Listed. The remaining catalog numbers are UL 50 Listed. Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.
