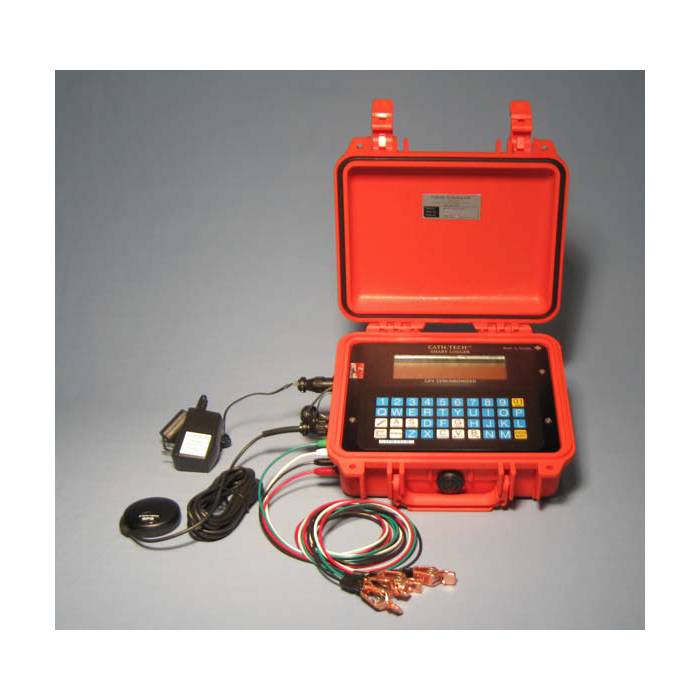

Smart Logger with GPS by Cath-Tech
Smart Logger with GPS by Cath-Tech
View larger image
chevron-left
chevron-right
search
SKU#: Cath-Tech-Smart-Logger
Records C.P. data Correlated to GPS Position
Description
minus-circle
plus-circle
Used for:
Stray Current Correction of CIPS and DCVG surveys. Telluric current correction of CIPS and DCVG surveys. GPS coordinate correction. Monitoring of pipe-to-soil potentials. Monitoring of rectifier interruption synchronization
Ideal for:
Correction of CIPS data for stray currents Correction of CIPS data for tellurics Monitor pipe to soil potentials
Included:
Smart Logger II Test Leads GPS magnet mount antenna AC charger; 120/240 V AC, 50/60 Hz input RS-232 converter Owners manual
Features
minus-circle
plus-circle
Features
Dual input: pipe to soil and shunt Portable and rugged GPS synchronization with other survey equipment Programmable waveform capture Every reading is time stamped ASCII comma delimited text file. No special software required Comprehensive 1 year warranty
Specifications
minus-circle
plus-circle
Technical Specifications
Range - Channel 1: +/- 5 V DC or +/- 25 V DC
Range - Channel 2: +/- 50 mV
A/D Converter: 14 bit
AC Rejection: 100 dB
Memory Capacity: 1 Mb, expandable to 2Mb
Input Impedance: 10 M ohm or 250 M ohm
Case: Plastic with o-ring seal, IP67 rated
Dimensions: 27cm x 25cm x 13cm (10.5" x 10" x 5")
Weight: 3.2 kg (7 lb)
Battery: 7.2 V 4.5 amp hour NiMH
User interface: 240 x 64 graphic LCD with 40 key QWERTY membrane keypad
Communications: RS-232
GPS synchronized with external antenna
Option to log GPS co-ordinates with every reading
Specifications subject to change without notice
