Staperm Underground Reference Electrodes by GMC

SKU#: GMC STAPERM Underground Reference Electrodes
Permanent Prepackaged Underground Reference Electrodes.

Grouped Product items

Staperm Model AG-4-UG Permanent Prepackaged Reference Electrode by GMC

$184.00

Staperm Model ZN-4-UG Permanent Prepackaged Reference Electrode by GMC

$150.00

Staperm Model CU-1-UG Permanent Prepackaged Reference Electrode by GMC

$150.00

Description

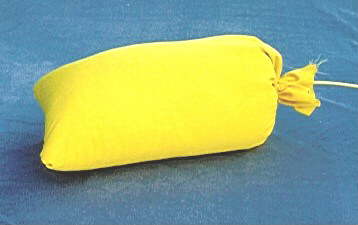

STAPERM^™ Model CU-1-UG
Copper-Copper Sulfate (Cu-CuSO₄)


Size: 2" dia. x 7" long high impact ABS plastic tube.
Packaging: Special non-polarizing backfilled in yellow cotton bag.
Overall size: Approx. 6" dia. x 14" long.
Weight: Approx. 15 lbs.
Special sizes: Upon request.
Reinforcing Rods: 1/4" x 3" PVC at electrode end.
Lead Wire: Standard 50' of #14 RHH-RHW.
Design Life: 20 years.
Stability: +/- 5 millivolts with 3.0 microamp load.
Temperature Range: 32°F to 132°F

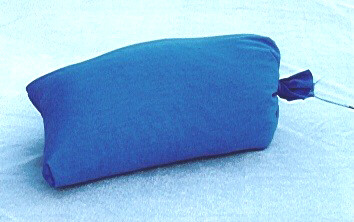

STAPERM^™ Model AG-4-UG
Silver-Silver Chloride (Ag-AgCl)


Size: 2" dia. x 7" long high impact ABS plastic tube.
Packaging: Special non-polarizing backfilled in blue cotton bag.
Overall size: Approx. 6" dia. x 14" long.
Weight: Approx. 15 lbs.
Special sizes: Upon request.
Reinforcing Rods: 1/4" x 3" PVC at electrode end.
Lead Wire: Standard 50' of #14 RHH-RHW.
Design Life: 20 years.
Stability: +/- 5 millivolts with 3.0 microamp load.
Temperature Range: 32°F to 150°F

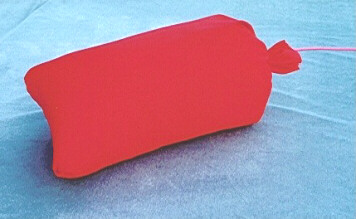

STAPERM^™ Model Zn-4-UG
Zinc-Zinc Sulfate (Zn-ZnSO₄)


Size: 2" dia. x 7" long high impact ABS plastic tube.
Packaging: Special non-polarizing backfilled in red cotton bag.
Overall size: Approx. 6" dia. x 14" long.
Weight: Approx. 15 lbs.
Special sizes: Upon request.
Reinforcing Rods: 1/4" x 3" PVC at electrode end.
Lead Wire: Standard 50' of #14 RHH-RHW.
Design Life: 20 years.
Stability: +/- 5 millivolts with 3.0 microamp load.
Temperature Range: 32°F to 132°F

Description

STAPERM^™ Model CU-1-UG
Copper-Copper Sulfate (Cu-CuSO₄)


Size: 2" dia. x 7" long high impact ABS plastic tube.
Packaging: Special non-polarizing backfilled in yellow cotton bag.
Overall size: Approx. 6" dia. x 14" long.
Weight: Approx. 15 lbs.
Special sizes: Upon request.
Reinforcing Rods: 1/4" x 3" PVC at electrode end.
Lead Wire: Standard 50' of #14 RHH-RHW.
Design Life: 20 years.
Stability: +/- 5 millivolts with 3.0 microamp load.
Temperature Range: 32°F to 132°F

STAPERM^™ Model AG-4-UG
Silver-Silver Chloride (Ag-AgCl)


Size: 2" dia. x 7" long high impact ABS plastic tube.
Packaging: Special non-polarizing backfilled in blue cotton bag.
Overall size: Approx. 6" dia. x 14" long.
Weight: Approx. 15 lbs.
Special sizes: Upon request.
Reinforcing Rods: 1/4" x 3" PVC at electrode end.
Lead Wire: Standard 50' of #14 RHH-RHW.
Design Life: 20 years.
Stability: +/- 5 millivolts with 3.0 microamp load.
Temperature Range: 32°F to 150°F

STAPERM^™ Model Zn-4-UG
Zinc-Zinc Sulfate (Zn-ZnSO₄)


Size: 2" dia. x 7" long high impact ABS plastic tube.
Packaging: Special non-polarizing backfilled in red cotton bag.
Overall size: Approx. 6" dia. x 14" long.
Weight: Approx. 15 lbs.
Special sizes: Upon request.
Reinforcing Rods: 1/4" x 3" PVC at electrode end.
Lead Wire: Standard 50' of #14 RHH-RHW.
Design Life: 20 years.
Stability: +/- 5 millivolts with 3.0 microamp load.
Temperature Range: 32°F to 132°F
