Staperm Underground Reference Electrodes by GMC
Staperm Underground Reference Electrodes by GMC
View larger image
chevron-left
chevron-right
search
SKU#: GMC STAPERM Underground Reference Electrodes

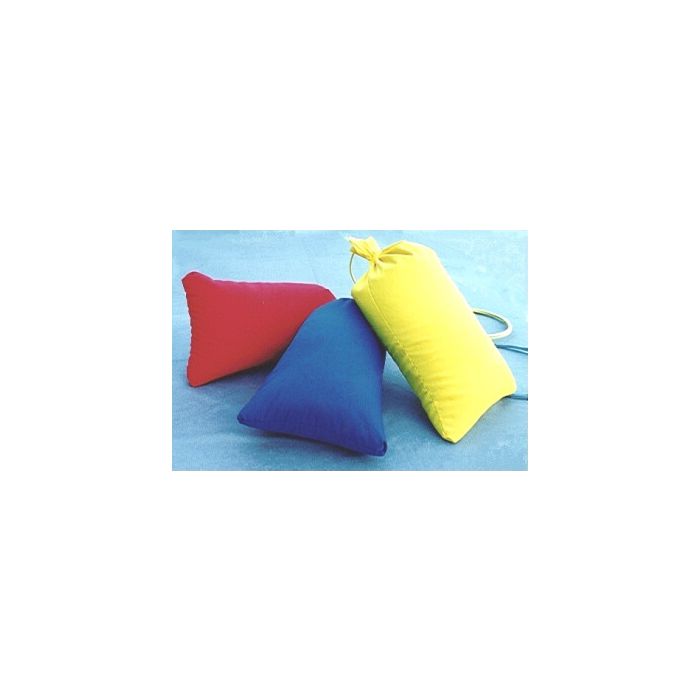

Permanent Prepackaged Underground Reference Electrodes.
Description
minus-circle
plus-circle
Description

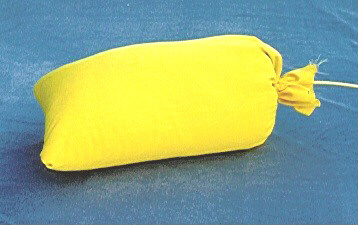

STAPERM ™ Model CU-1-UG Copper-Copper Sulfate (Cu-CuSO4 )
Size: 2" dia. x 7" long high impact ABS plastic tube.Packaging: Special non-polarizing backfilled in yellow cotton bag.Overall size: Approx. 6" dia. x 14" long. Weight: Approx. 15 lbs.Special sizes: Upon request.Reinforcing Rods: 1/4" x 3" PVC at electrode end.Lead Wire: Standard 50' of #14 RHH-RHW.Design Life: 20 years.Stability: +/- 5 millivolts with 3.0 microamp load.Temperature Range: 32°F to 132°F

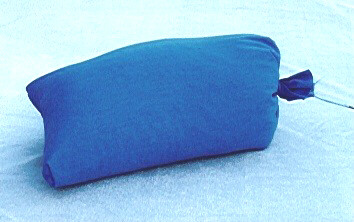

STAPERM ™ Model AG-4-UG Silver-Silver Chloride (Ag-AgCl)
Size: 2" dia. x 7" long high impact ABS plastic tube.Packaging: Special non-polarizing backfilled in blue cotton bag.Overall size: Approx. 6" dia. x 14" long. Weight: Approx. 15 lbs.Special sizes: Upon request.Reinforcing Rods: 1/4" x 3" PVC at electrode end.Lead Wire: Standard 50' of #14 RHH-RHW.Design Life: 20 years.Stability: +/- 5 millivolts with 3.0 microamp load.Temperature Range: 32°F to 150°F

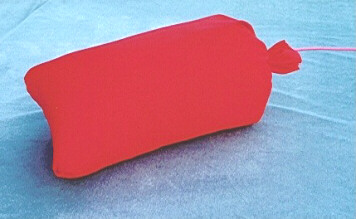

STAPERM ™ Model Zn-4-UG Zinc-Zinc Sulfate (Zn-ZnSO4 )
Size: 2" dia. x 7" long high impact ABS plastic tube.Packaging: Special non-polarizing backfilled in red cotton bag.Overall size: Approx. 6" dia. x 14" long. Weight: Approx. 15 lbs.Special sizes: Upon request.Reinforcing Rods: 1/4" x 3" PVC at electrode end.Lead Wire: Standard 50' of #14 RHH-RHW.Design Life: 20 years.Stability: +/- 5 millivolts with 3.0 microamp load.Temperature Range: 32°F to 132°F
Description
STAPERM ™ Model CU-1-UG Copper-Copper Sulfate (Cu-CuSO4 )
Size: 2" dia. x 7" long high impact ABS plastic tube.Packaging: Special non-polarizing backfilled in yellow cotton bag.Overall size: Approx. 6" dia. x 14" long. Weight: Approx. 15 lbs.Special sizes: Upon request.Reinforcing Rods: 1/4" x 3" PVC at electrode end.Lead Wire: Standard 50' of #14 RHH-RHW.Design Life: 20 years.Stability: +/- 5 millivolts with 3.0 microamp load.Temperature Range: 32°F to 132°F
STAPERM ™ Model AG-4-UG Silver-Silver Chloride (Ag-AgCl)
Size: 2" dia. x 7" long high impact ABS plastic tube.Packaging: Special non-polarizing backfilled in blue cotton bag.Overall size: Approx. 6" dia. x 14" long. Weight: Approx. 15 lbs.Special sizes: Upon request.Reinforcing Rods: 1/4" x 3" PVC at electrode end.Lead Wire: Standard 50' of #14 RHH-RHW.Design Life: 20 years.Stability: +/- 5 millivolts with 3.0 microamp load.Temperature Range: 32°F to 150°F
STAPERM ™ Model Zn-4-UG Zinc-Zinc Sulfate (Zn-ZnSO4 )
Size: 2" dia. x 7" long high impact ABS plastic tube.Packaging: Special non-polarizing backfilled in red cotton bag.Overall size: Approx. 6" dia. x 14" long. Weight: Approx. 15 lbs.Special sizes: Upon request.Reinforcing Rods: 1/4" x 3" PVC at electrode end.Lead Wire: Standard 50' of #14 RHH-RHW.Design Life: 20 years.Stability: +/- 5 millivolts with 3.0 microamp load.Temperature Range: 32°F to 132°F
