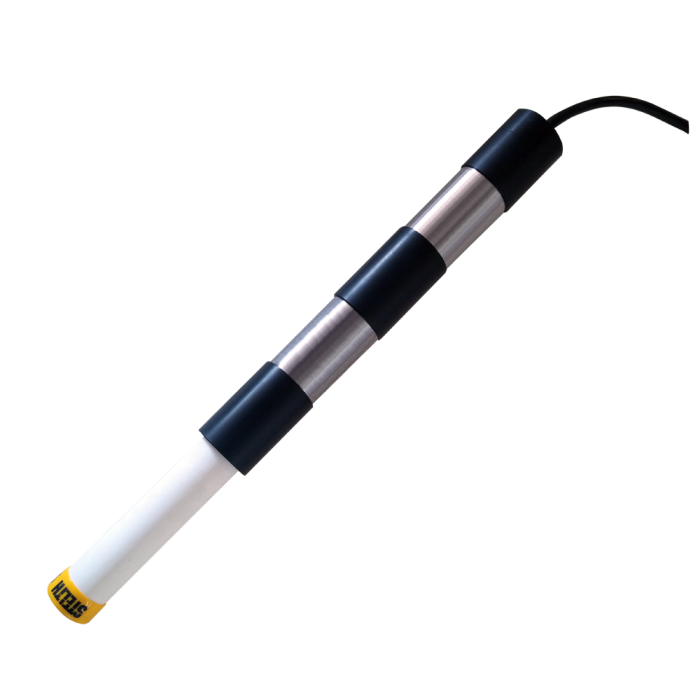

Stelth 7 Reference Electrode and Coupon Combination for AC Readings by Borin Mfg.
For Use in Monitoring AC Mitigation Readings
Description
The STELTH 7 Reference Electrode for AC Mitigation Readingscan help you answer these questions with an all-in-one solution.
The STELTH 7 for AC Mitigation Readings has all the features you love that enable our STELTH reference electrode technology to produce stable readings, plus:
Integrated 1 cm2 coupon, specifically sized to measure AC potential and AC current density as outlined in NACE standard SP0177-2014.
All of your CP readings with one device: because the STELTH 7includes 1 cm2, 10 cm2 and 100 cm2 DC coupons, it is able to give you readings for:It’s equipped with our Bullet Box Interrupter to enable you to take AC current readings; they are color coded to make installation super easy
Structure Potential
AC Potential
AC Current Density
ON Potential
IR-Free OFF Potential
Native Potential
DC Current Density
Easily automate readings by connecting to a remote monitoring unit, which becomes crucial when trying to log AC potential and AC current density readings over a period of time at different times of day – as AC load can vary greatly depending on local power demands.
Just a few reasons BORIN STELTH solid-state reference electrodes are unique:
Never need recharging or recalibrating
Impregnated with membrane that keeps electrolytes from drying out or getting contaminated
Trap hydrogen sulfide or excess chloride ions before they cause damage
Let you know when you have dangerous levels of AC to deal with
Can thrive in ALL environments, even those chemically detrimental to other reference electrodes
Remain accurate for their lifetime
Won’t die every winter
BORIN stands behind every STELTH reference electrode you buy:
We test EVERY SINGLE reference electrode we make
You can track/trace any STELTH
Every STELTH is calibrated for the life of the cell
The STELTH reference electrodes will work for years and remain stable after you retire
Features
Uses
AC Mitigation Readings, AC Mitigation Monitoring, AC Monitoring, AC Readings, Depolarization Potential, ON-OFF Potential, DC & AC Current Density, Native Potential, 100 mV Shift
Size
Varies depending on model
Standard Lead wire
Any length of RHH-RHW black #16-5 tray cable wire available
Material
High Impact ABS, ceramic with Moisture Retention Membrane (MRM™)
AC Mitigation Monitoring Depolarization Potential On-Off Potential DC & AC Current Density Native Potential
30 years
2" (51 mm) width x 21.25" (540 mm) length.
Any length of RHH-RHW black #16-5 tray cable wire available.
Ordering
BORIN®STELTH® 7 Solid-State Reference Electrode for AC Mitigation Readings
Standard Lead Wire:
20′ of RHH-RHW black #16-5 tray cable wire (any length of wire available)
