Testox Metallic Test Stations by Gerome

Testox Metallic Test Stations by Gerome

Gerome's design recognizes that working room and good access to terminals are important to the corrosion engineer when he is inside his test station.

Testox Cathodic
Protection Test Stations
by Gerome

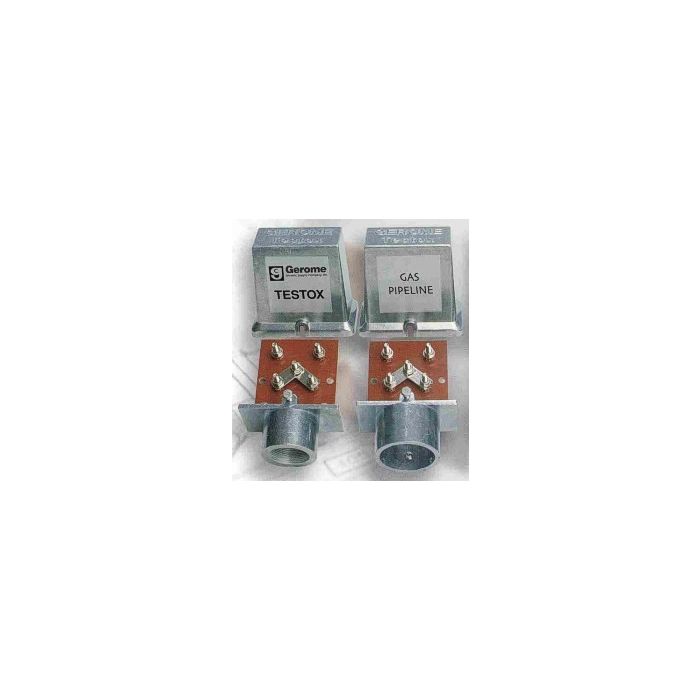

Series 100 Pipe-Mounted Test Station 5 terminals standard 7 terminals available 6" high, 3-3/4" wide, 2-1/2" deep Slip fit: 3/4" - 3" Threaded: 3/4", 1", 1-1/4", 1-1/2", 2", 3" Shipping weight: 2-1/2 lbs Pre-wired or unwired Plastic or aluminum conduit
Series 300 Mini-Series Test Station 2 or 4 terminals standard 5" high, 1-1/2" wide , 2-3/4" deep Slip fit: 3/4" Threaded: 3/4" Available with conduit Shipping weight: 1 lb
Series 400 Pipe Mounted Test Station 5 terminals standard, up to 10 terminals available. 6-3/4" high, 5" wide, 3" deep. Optional back and sides. Watertight. Slip-fits: 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" Threaded: 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" Shipping weight: 2-1/2 lbs.

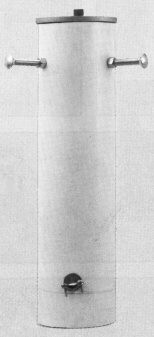

Series 500 500 For Urban Paved Locations 500A For Burial in Sand or Dirt 5 terminals standard Corrosion resistant cast aluminum top Durable plastic pipe body 15-1/2" high, 4-1/2" diameter (500) 18-1/2" high, 4-1/2" or 6-1/2" diameter (500A) Anchoring bolts Ship. weight: 3 lbs (500), 4 lbs (500A)
Readily accessible terminal is mounted directly beneath cover.

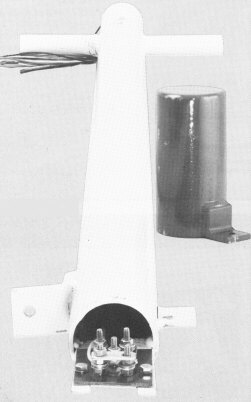

Series 600 Right-of-Way Test Station 5 terminals standard 7 terminals available Pre-wired or unwired Solid steel construction 6 feet long with an I.D. of 3" for rugged use. Also features an arrangement for locking cap to the test station (lock not included) Shipping weight: 70 lbs
Series 700 Pipe Mounted Test Station 5 terminals standard Up to 10 terminals available 8" high, 4-1/2" wide, 2-1/2"deep Slip fits: 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" Shipping weight: 3-1/2 lbs
Gerome's design recognizes that working room and good access to terminals are important to the corrosion engineer when he is inside his test station. Uncovered, the terminal board of the Series 700 is wide open and available from every side. Covered, it is a neat appearing aluminum casting of rugged quality.
Series 800 Pipe Mounted Test Station 5 terminals standard Up to 7 terminals available Screw-on cover Body and cover of cast aluminum Watertight with O-ring seal Thread sizes: 3/4", 1" 1-1/4" 4-1/2" diameter Shipping weight: 2-1/2 lbs
Series 900 Front and Back Access 5 terminals standard Up to 7 terminals available Cast aluminum cover Waterproof Slip fit: 3" Threaded: 3" 11" high, 4-1/2" diameter Shipping weight: 4-1/2 lbs
Series 1000 Pipe Mounted Test Station 8 terminals standard Other sizes available 32 square inches of terminal board Double hub Dual conduit entry Easily takes 2/0 cable in and out 8" high, 8-3/8" wide, 2-1/2" deep Sip fit: 1", 1-1/4" Thread sizes: 1", 1-1/4" Shipping weight: 5 lbs
Series 2000 Pipe Mounted Test Station 8 terminals standard Other sizes available 32 square inches of terminal board Single hub Single conduit entry up to 3 inches. Easily takes 2/0 cable in and out 9" high, 8-3/8" wide, 2-1/2" deep Slip fit: 1-1/2", 2", 3", 4" Thread sizes: 1-1/2", 2", 3" Shipping weight: 5-1/2 lbs
Series 3000 Marker Plate Cast aluminum markers Logo available on one or both sides 6-1/4" high, 7-1/4" wide Slip fit: 2" Shipping weight: 1-1/2 lbs
Series 4000 Vent Cast aluminum vent Top slot to hold marker (pictured on right side of grouping) 3-3/8" high, 7-1/4" diameter Shipping weight: 3 lbs
Series 5000 Vent with Marker Plate Cast aluminum vent with marker Logo available on one or both sides 4-7/8" high, 7-1/4" wide Slip fit: 2", 2-1/2", 3", 4" Shipping weight: 4 lbs
Series 9007 Combination Vent & Test Station Cast aluminum Nickel plated brass terminals Stainless steel cover bolts with stainless steel helicoils Slip fit: 3" Standard 5 terminals, available vent only -- no board, and cast name plate 4-7/8" length, 7-1/4" deep Shipping weight: 4-1/2 lbs.
