4" x 4" Protective Cover for Welded Cable Connections. Pre-primed with Adhesive.

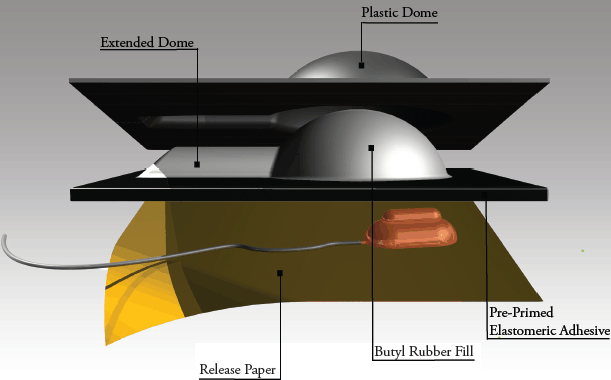

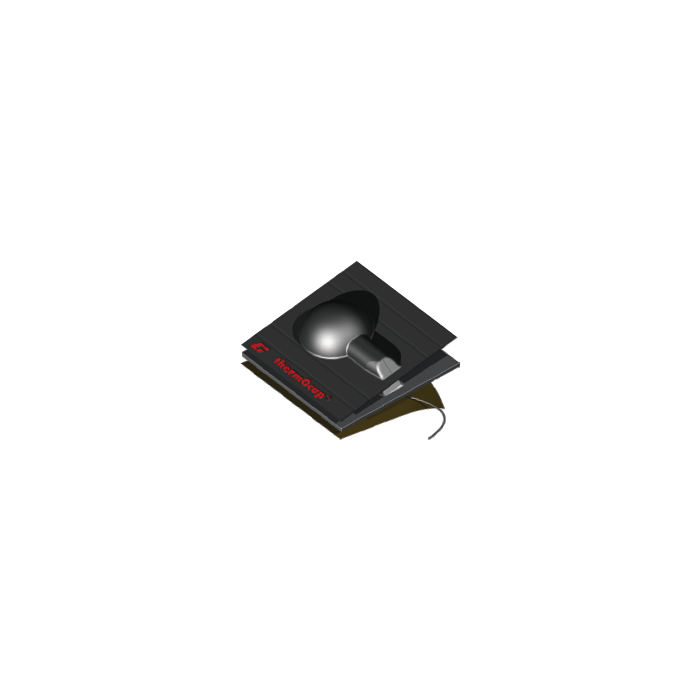

thermOwelds® NEW thermOcap® PC is a 4" x 4" prefabricated assembly designed as a protective cover for exothermically welded leads to pipes and tanks. When pressed by hand into position over the anode lead wire weld, it forms a thick, highly resistant electrical insulation seal over the weld, the end of the lead wire and the surrounding area of the pipe or tank.
As opposed to the thermOcap, the thermoOcap PC is pre-primed with an elastomeric adhesive and does not require a spray primer.
Pre-primed for 1-step application.
Elongated wire inlet allows the cap to conform easier to the pipe
Outer shell designed to prevent crushing
Butyl rubber filled dome
Easier field application
Contractor friendly
Thick outer shell prevents crushing during application.
Conveniently packaged in boxes of 20 for immediate delivery.
Properties
Construction
Molded plastic dome filled with corrosion resistant compound on a base of thick elastomeric tape.
Dimensions
Overall:
4" x 4"
Plastic sheet:
21 mils
Plastic dome:
1-5/8" x 5/8"
Wire way:
3/8" x 1-3/8"
Weight
2-3/4 oz
Adhesive Thickness
1/8"
Application Temperature
40°F to 100°F
Service Temperature
40°F to 122°F
thermOwelds® NEW thermOcap® PC is a 4" x 4" prefabricated assembly designed as a protective cover for exothermically welded leads to pipes and tanks. When pressed by hand into position over the anode lead wire weld, it forms a thick, highly resistant electrical insulation seal over the weld, the end of the lead wire and the surrounding area of the pipe or tank.
As opposed to the thermOcap, the thermoOcap PC is pre-primed with an elastomeric adhesive and does not require a spray primer.
Pre-primed for 1-step application.
Elongated wire inlet allows the cap to conform easier to the pipe
Outer shell designed to prevent crushing
Butyl rubber filled dome
Easier field application
Contractor friendly
Thick outer shell prevents crushing during application.
Conveniently packaged in boxes of 20 for immediate delivery.
Properties
Construction
Molded plastic dome filled with corrosion resistant compound on a base of thick elastomeric tape.
Dimensions
Overall:
4" x 4"
Plastic sheet:
21 mils
Plastic dome:
1-5/8" x 5/8"
Wire way:
3/8" x 1-3/8"
Weight
2-3/4 oz
Adhesive Thickness
1/8"
Application Temperature
40°F to 100°F
Service Temperature
40°F to 122°F
