Trace-Safe RT Series Tracer Wire - 19 gauge conductor
Water blocking reinforced tracer wire used for direct burial locating purposes in the telecommunications, gas, sewer or water utilities. Color-coded for all utility needs. Trace-Safe RT Series Tracer Wire - 19 gauge conductor
Description
Water blocking reinforced tracer wire used for direct burial locating purposes in the telecommunications, gas, sewer or water utilities. Insulated metallic conductor enables location of all-dielectric cables, gas lines, sewer lines or water pipes.
Features & Benefits
Durably printed with sequential footage or meter markings*
Conductor additionally protected by product construction
Market specific coloring for easy identification
Water blocking yarns
Polyethylene jacket
Low elongation for enhanced worker safety
Lightweight and easy to handle and install

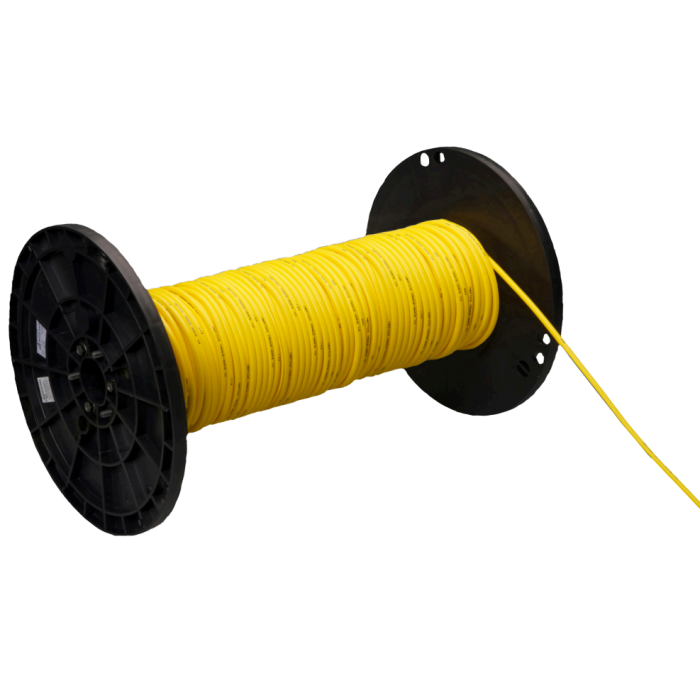

Packaged on sturdy recyclable plastic reels
Corrosion-resistant conductor functions at a wide range of frequencies and is compatible with any standard transmitting / receiving equipment
Fungus resistant
NEPTCO TRACE-SAFE identification tags included with every reel
Conductor Data
AWG
19 Tin Coated Solid Copper
Diameter
.0358" Nominal
Resistivity
16.85 OHMS per MFT
Tensile Strenght
38,500 psi Nominal
Break Strenght
38.95 lbs. Nominal
Elongation
30%
Conductor Insulation Data
Type
Polyethylene - Black Color
Thickness
.066" Nominal
Overall Thickness
.048" Nominal
Maximun Voltage
388 W Insulated
Dielectric Constant
2.29 @ 1 MHZ
Core Material
Type
Woven polyester and water blocking polyester yarns
Outlet Jacket
Type
High Density Polyethylene
Ordering Information
TRACE-SAFE® WATER BLOCKING TRACER WIRE PRODUCT ORDERING INFORMATION
Product
Color Code
Market
lbs.
(kg)
Nominal Dimater
RT1800W
Orange
Telecommunications
1800
(818)
.235"
RT1801W
Yellow
Gas
1800
(818)
2.35"
RT1802W
Blue
Water
1800
(818)
2.35"
RT1803W
Green
Sewer
1800
(818)
2.35"
RT1804W
Purple
Reclamation
1800
(818)
2.35"
* Also available unprinted
