Watchdog VIP-XT Remote Rectifier Monitory by Elecsys

Remote Monitoring for Extreme Environments. No Interruption Capabilities.

Description

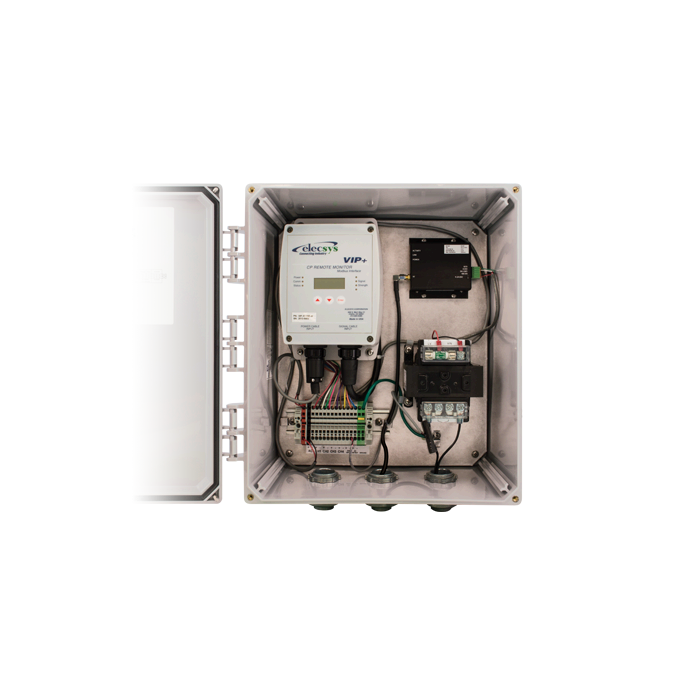

The Elecsys VIP-XT is the answer to the corrosion professional’s need for a simple, reliable and low-cost CP transformer/rectifier remote monitor.

The unit comes from the factory configured to measure transformer/ rectifier output volts, amps, pipe-to-soil potential, and AC mains detection. The unit is highly flexible, with four configurable analog inputs, one digital input, and the AC detection probe, allowing it to handle a wide variety of remote monitoring needs for pipelines, plants and refineries, oil and gas well sites, and distribution utilities.

Using field-proven lightning surge-resistant circuitry, the VIPxt system is the best choice for cost-effective transformer/rectifier monitoring on oil, gas and water pipelines, offshore platforms, well casings and piers.
Applications
- Measure and report transformer/rectifier volts and amps in harsh desert and offshore conditions
- Additional inputs for:
  - Pipe-to-soil potential
  - Multiple negative shunts
  - Intrusions alarm
  - Rectifier mains power failure
Features
- Automatic transformer/rectifier and CP test point readings
- Alarm and return-to-normal notifications via e-mail and SMS
- Lightning surge-resistant circuitry
- Inputs- 4 analog, 1 digital and 1 AC mains digital input
- Multiple communication options
- Modbus enabled, integrates with SCADA network
- Simple user interference via internet or customer server
- Local LCD display for on-site information
- AC mains on/off detection

Specifications

Part Number	Modbus: VIPXT-MB-W Satellite telemetry: WDF-VIP-SAT-XT GSM cellular telemetry: WDF-VIP-GSM-XT Satellite telemetry: WDF-VIP-SAT-XT
Size	13.4” (340 mm) X 14.9” (380 mm) X 7.5” (190 mm)
Operating Environment	Temperature: -40°C to +85°C Humidity: 0-95% non-condensing Enclosure: NEMA 4X polycarbonate mounted in and IP68 enclosure- unit is dust and water tight
Power Options	110/240/480 VAC single phase external power input. Internal high-energy lithium batteries function as backup batteries or 10-35 VDC, 3.5W nominal
Input Connections	Channel 1-Rectifier voltage +/- 200 VDC (+/-1%) Channel 2-Rectifier current (amps) +/- 100mVDC (+/-1%) Channel 3-Pipe to soil potential +/- 10 VDC (>10 MΩ input impedance, +/-1%) AC probe-Detects rectifier AC mains input voltage electric field Dry-contact digital input for alarm or status reporting (intrusion alarm, valve position, etc.)
Telemetry	Satellite telemetry: Inmarsat IsatM2M or Thuraya IP

Description

The Elecsys VIP-XT is the answer to the corrosion professional’s need for a simple, reliable and low-cost CP transformer/rectifier remote monitor.

The unit comes from the factory configured to measure transformer/ rectifier output volts, amps, pipe-to-soil potential, and AC mains detection. The unit is highly flexible, with four configurable analog inputs, one digital input, and the AC detection probe, allowing it to handle a wide variety of remote monitoring needs for pipelines, plants and refineries, oil and gas well sites, and distribution utilities.

Using field-proven lightning surge-resistant circuitry, the VIPxt system is the best choice for cost-effective transformer/rectifier monitoring on oil, gas and water pipelines, offshore platforms, well casings and piers.

Applications

Measure and report transformer/rectifier volts and amps in harsh desert and offshore conditions
Additional inputs for:
- Pipe-to-soil potential
- Multiple negative shunts
- Intrusions alarm
- Rectifier mains power failure

Features

Automatic transformer/rectifier and CP test point readings
Alarm and return-to-normal notifications via e-mail and SMS
Lightning surge-resistant circuitry
Inputs- 4 analog, 1 digital and 1 AC mains digital input
Multiple communication options
Modbus enabled, integrates with SCADA network
Simple user interference via internet or customer server
Local LCD display for on-site information
AC mains on/off detection

Specifications

Part Number	Modbus: VIPXT-MB-W Satellite telemetry: WDF-VIP-SAT-XT GSM cellular telemetry: WDF-VIP-GSM-XT Satellite telemetry: WDF-VIP-SAT-XT
Size	13.4” (340 mm) X 14.9” (380 mm) X 7.5” (190 mm)
Operating Environment	Temperature: -40°C to +85°C Humidity: 0-95% non-condensing Enclosure: NEMA 4X polycarbonate mounted in and IP68 enclosure- unit is dust and water tight
Power Options	110/240/480 VAC single phase external power input. Internal high-energy lithium batteries function as backup batteries or 10-35 VDC, 3.5W nominal
Input Connections	Channel 1-Rectifier voltage +/- 200 VDC (+/-1%) Channel 2-Rectifier current (amps) +/- 100mVDC (+/-1%) Channel 3-Pipe to soil potential +/- 10 VDC (>10 MΩ input impedance, +/-1%) AC probe-Detects rectifier AC mains input voltage electric field Dry-contact digital input for alarm or status reporting (intrusion alarm, valve position, etc.)
Telemetry	Satellite telemetry: Inmarsat IsatM2M or Thuraya IP
