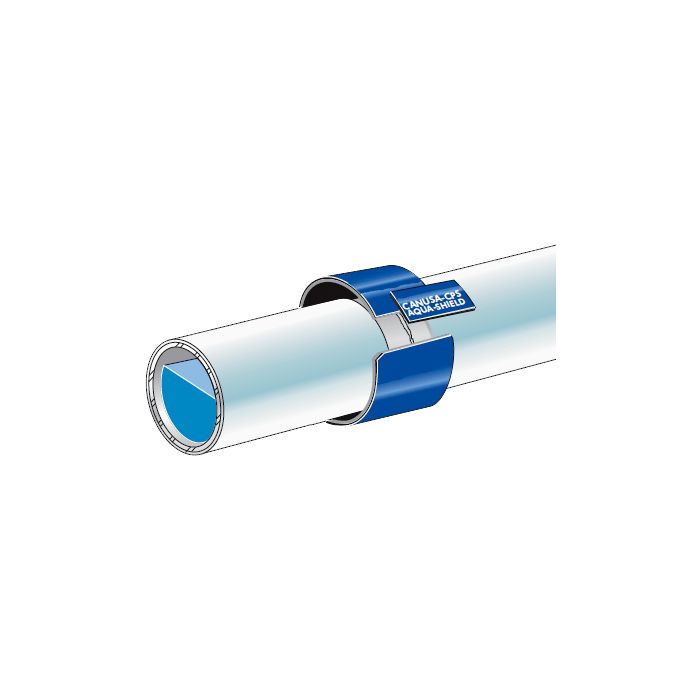

Aqua-Shield Corrosion Protection Sleeves by Canusa-CPS
Heat shrinkable corrosion protection sleeves for water pipelines
Description
Corrosion protection sleeves for water pipelines
Aqua-Shield™ is a family of heat shrinkable sleeve products that have been specifi cally designed for the corrosion protection of large diameter water pipelines. Various product confi gurations are available that utilize a crosslinked polyolefi n backing, coated with a protective, heat-activated adhesive which effectively bonds to metallic substrates and common pipeline coatings.
Long Term Protection
Once installed, Aqua-Shield™ provides durable protection against abrasion and chemical attack. The high performance crosslinked backing provides the superior abrasion resistance and mechanical strength required for water transmission and distribution lines. Aqua-Shield™ effectively covers and protects the pipe surface to prevent corrosion. Since no special primers are required, less time is required for installation.
Flexible & Reliable Installation
The Aqua-Shield™ family of products are available in various configurations for flexibility of installation.
Aqua-Shield™ AQW-HS: Specially constructed and provided in custom cut lengths for field joints on large diameter water pipelines including “O”-ring and field welded configurations, as well as coating factory fittings and mitered elbows.
Aqua-Shield™ AQW-FPK: A high expansion/high recovery system, designed for corrosion protection and sealing of flanges and other high profile joints. The system includes skirting sleeves to protect flange bolt areas.
Aqua-Shield™ AQW-WAB: Designed specifically for “Weld-After-Backfill” applications.
Assured Performance
The AQW-HS and AQW-WAB products meet and exceed the requirements of AWWA standard C216-07.
Corrosion Protection sleeves for water pipelines
Sleves Operating Characteristics
AWWAC216
AQW-HS
AQW-WAB
Minimum Installation Temp
-
50°C (122°F)
50°C (122°F)
Adhesive Properties
Test Method
Softening Point
ASTM E28
-
77°C (170°F)
102°C (215°F)
Lap Shear
ASTM D1002
12 psi
35 psi
30 psi
Backing Properties
Tensile Strength
ASTM D638
2200 psi
2900 psi
3000 psi
Elongation
ASTM D638
400%
700%
700%
Hardness
ASTM D2240
-
46 Shore D
52 Shore D
Volume Resistivity
ASTM D257
10^14 Ohm-cm
10^17 Ohm-cm
10^17 Ohm-cm
Dielectric Strength
ASTM D149
400 V/mil
700 V/mil
700 V/mil
Water-vapour Transmission
ASTM E 96
0.05 g/h/m^2
<0.01 g/h/m^2
<0.01 g/h/m^2
Heat Shock
AWWA C216
Pass
Pass
Pass
Sleeve Properties
Impact
ASTM G14
25 in.-lbs
50 in.-lbs
50 in.-lbs
Adhesion to Steel
ASTM D1000
15pli
25pli
46pli
Low Temp. Flexibility
ASTM D2671
-
-20°C (4°F)
-14°C (7°F)
Width Deviation
-
±10
±5
±5
Thickness
Backing (nominal thickness as supplied)
0.8 mm (0.031")
0.6 mm (0.025")
Adhesive (nominal thickness as supplied)
1.1 mm (0.045")
1.1 mm (0.045")
Description
Corrosion protection sleeves for water pipelines
Aqua-Shield™ is a family of heat shrinkable sleeve products that have been specifi cally designed for the corrosion protection of large diameter water pipelines. Various product confi gurations are available that utilize a crosslinked polyolefi n backing, coated with a protective, heat-activated adhesive which effectively bonds to metallic substrates and common pipeline coatings.
Long Term Protection
Once installed, Aqua-Shield™ provides durable protection against abrasion and chemical attack. The high performance crosslinked backing provides the superior abrasion resistance and mechanical strength required for water transmission and distribution lines. Aqua-Shield™ effectively covers and protects the pipe surface to prevent corrosion. Since no special primers are required, less time is required for installation.
Flexible & Reliable Installation
The Aqua-Shield™ family of products are available in various configurations for flexibility of installation.
Aqua-Shield™ AQW-HS: Specially constructed and provided in custom cut lengths for field joints on large diameter water pipelines including “O”-ring and field welded configurations, as well as coating factory fittings and mitered elbows.
Aqua-Shield™ AQW-FPK: A high expansion/high recovery system, designed for corrosion protection and sealing of flanges and other high profile joints. The system includes skirting sleeves to protect flange bolt areas.
Aqua-Shield™ AQW-WAB: Designed specifically for “Weld-After-Backfill” applications.
Assured Performance
The AQW-HS and AQW-WAB products meet and exceed the requirements of AWWA standard C216-07.
Corrosion Protection sleeves for water pipelines
Sleves Operating Characteristics
AWWAC216
AQW-HS
AQW-WAB
Minimum Installation Temp
-
50°C (122°F)
50°C (122°F)
Adhesive Properties
Test Method
Softening Point
ASTM E28
-
77°C (170°F)
102°C (215°F)
Lap Shear
ASTM D1002
12 psi
35 psi
30 psi
Backing Properties
Tensile Strength
ASTM D638
2200 psi
2900 psi
3000 psi
Elongation
ASTM D638
400%
700%
700%
Hardness
ASTM D2240
-
46 Shore D
52 Shore D
Volume Resistivity
ASTM D257
10^14 Ohm-cm
10^17 Ohm-cm
10^17 Ohm-cm
Dielectric Strength
ASTM D149
400 V/mil
700 V/mil
700 V/mil
Water-vapour Transmission
ASTM E 96
0.05 g/h/m^2
<0.01 g/h/m^2
<0.01 g/h/m^2
Heat Shock
AWWA C216
Pass
Pass
Pass
Sleeve Properties
Impact
ASTM G14
25 in.-lbs
50 in.-lbs
50 in.-lbs
Adhesion to Steel
ASTM D1000
15pli
25pli
46pli
Low Temp. Flexibility
ASTM D2671
-
-20°C (4°F)
-14°C (7°F)
Width Deviation
-
±10
±5
±5
Thickness
Backing (nominal thickness as supplied)
0.8 mm (0.031")
0.6 mm (0.025")
Adhesive (nominal thickness as supplied)
1.1 mm (0.045")
1.1 mm (0.045")
