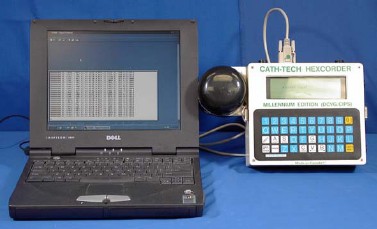

Hexcorder DCVG/CIPS/GPS Survey Tool by Cath-Tech
- SKU#: Cath-Tech Hexcorder Millenium DCVG/CIPS/GPS
- Performs both CIPS and DCVG Cathodic Protection Surveys
-
Description
The Cath-Tech™ Hexcorder Millennium GPS is the ultimate survey tool, capable of performing close interval surveys (CIPS) as well as direct current voltage gradient (DCVG) surveys.
- CIPS for Potential Surveys
- DCVG for Coating Condition Surveys
Like all Cath-Tech™ survey equipment, the Hexcorder Millennium is equipped with a 12-satellite GPS engine for interruption synchronization as well as coordinate display and logging. It can store GPS time and pipeline chainage. It comes with 1 Mbyte of non-volatile CMOS RAM, factory upgradeable to 2 Mbytes. It comes with a large graphic LCD display for text and graphs, and 40-key QWERTY keyboard for data entry. It is shipped ready to use and includes new CuCuSO4 half cells and a spool of wire.
CIPS + DCVG + GPS
The Hexcorder Millennium with GPS is a fully integrated close-interval potential survey and direct current voltage gradient survey instrument with a proven track record. It is a purpose-built instrument designed by corrosion engineers for use by corrosion professionals.
The unit can simultaneously measure and record structure-to-electrolyte potentials as well as the voltage gradient between two half-cells. It can measure and store the rectifier ON and Instant OFF structure-to-electrolyte potentials, voltage gradients, chainage, GPS coordinates, and UTC time. It has a built-in active filter to minimize the effect of induced AC voltages on the measured structure-to-electrolyte potentials. The active AC filter combined with software rejection results in over 80 dB of AC rejection.
The unit is equipped with exclusive Cath-Tech™ Waveform Software to capture and display electrical interference on the structure-to-electrolyte potential. No special software is required for analysis. The output of the Hexcorder Millennium is comma-delimited ASCII text, which can be imported directly into any spreadsheet or database software.
-
Features
- Close Interval Survey (CIPS) capable.
- Direct Current Voltage Gradient (DCVG) capable.
- Data Logger.
- 12-satellite GPS engine.
- 7.2 amper-hour NiMH battery.
- 240 x 64 pixel graphic LCD display.
- 40-key QWERTY keyboard for data entry.
- 1 MB of CMOS RAM standard, 2 MB optional.
- Waveform software included.
- Measures and records distance.
- GPS interruption synchronization.
- Stores GPS time and coordinates.
- CMOS circuitry for low power consumption
- 3.6 AH NMH battery

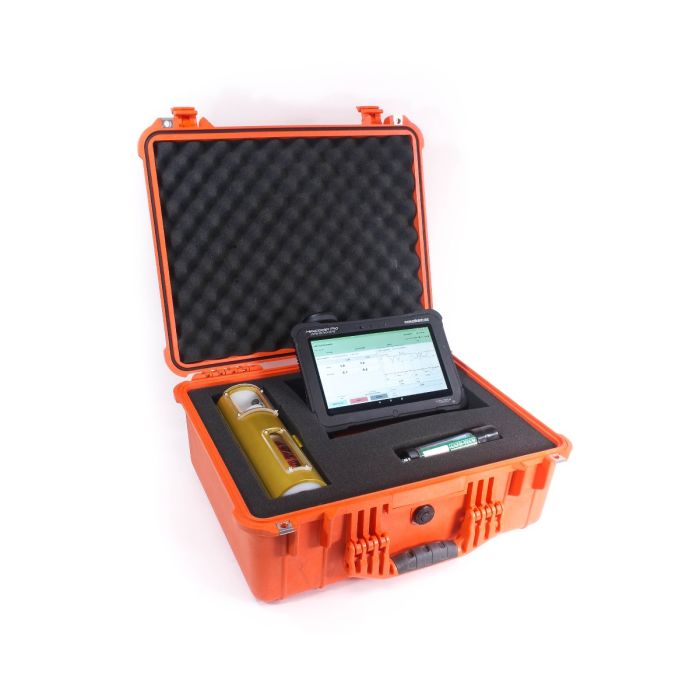

Kit Includes: - Hexcorder Millennium with WAAS enabled GPS engine and antenna.
- Rugged carrying case
- Battery charger
- Two CuCuSO4 half-cells
- Two half-cell extension poles
- Two Hexcorder to half-cell cables
- Wire dispenser and one spool of wire
- Hip or backpack wire dispenser
- RS-232 cable
- Operator manual
-
Technical Specifications Capabilities
Case
Coating
Dimensions
Weight
Display
Keyboard
Circuitry
Memory
A/D conversion
Read rate
Battery
Com Port
AC Rejection
GPS Engine
PortsCIPS, DCVG, distance measurement, GPS interruption synchronization
Machined aluminum
Fusion-bonded polyester
210 X 185 X 65 mm
2.5 kg
64 X 240 graphic LCD display
40-key QWERTY waterproof, tactile membrane
CMOS for low power consumption
1 MByte non-volatile CMOS expandable to 2 MBytes
12-bit, 15,000 readings per Second
> 1 per second
7.2 AH Nickel Metal Hydride (NiMH)
9-pin male D
> 80 dB
12-satellite, WAAS enabled
- 2 independent ± 5000 mV structure-to-electrolyte inputs.
- 1 X 15-pin D 5-channel ±5000 mV data logger input.
- Battery chargerconnector
- RS-232 port
- Wire counter input
