DryConn King 6 Waterproof Connectors by King Innovations
- SKU#: 12-25100
- Sold 10/bag. Rated for all Underground Applications such as Gas Tracer Cables.
$33.34
-
King 6 Product Specifications - Max. Voltage: 600V (1,000V in fixtures and signs)
- Size: 13/16" x 2"
- Wire Combinations: Copper/Copper
- Wire Range: Min. #22 / Max. #8
- Temperature Rating: 75°C (167°F)
- Silicone Sealant: -45°F to 400°F
- Performance Testing:
For direct burial according to UL 486D test standard.
Application
For use in low voltage wiring, including cathodic protection systems, test leads, tracer wire, landscape irrigation, landscape lighting, and golf.
Dimensions
A 2.00" B 0.540" C 0.813" D 0.547"
Installation
Important: Turn off power before installing or removing connector. Product to be used in accordance with local and national codes. - Strip wires 1/2".
- Align frayed strands or conductors.
- NO pre-twisting needed. Hold wires together with ends even. Note: Twist and lead stranded wires slightly.
- Push wires firmly into connector when starting.
- Twist connector onto wires pushing firmly until tight. Do not over-torque.
- DO NOT REUSE.
-

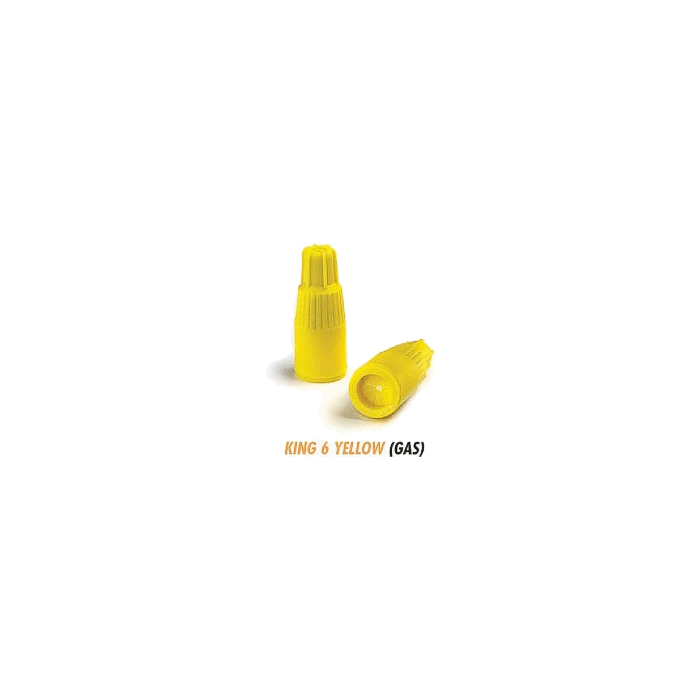

King 6 Yellow (Gas) Wire Combinations
3-6 # 22
2-6 # 18 or 20
1-6 # 14 or 16
1-3 # 10 or 12
4 # 12 solid
I # 22 w/ 2-5 # 20
1 # 22 w/ 1-5 # 16 or 18
2 # 22 w/ 1-4 # 16, 18 or 20
3 # 22 w/ 1-3 # 16, 18 or 20
4 # 22 w/ 1-2 # 16, 18 or 20
1 # 20 w/ 1-4 # 14, 16 or 18
2 # 20 w/ 1-3 # 14, 16 or 18
3 # 20 w/ 1-2 # 14, 16 or 18
4 # 20 w/ 1-2 #14, 16 or 18
1 # 18 w/ 1-4 #12 or 14
1-2 # 18 w/ 1-2 # 10
2 # 18 w/ 1-4 # 12, 14 or 16
3 # 18 w/ 1-3 # 12, 14 or 163 # 18 w/ 1-2 #10
4 # 18 w/ 1-2 # 12, 14 or 16
4 # 18 w/ 1 # 10
5 # 18 w/ 1 # 14 or 16
1 # 16 w/ 1-4 # 12 or 14
1 # 16 w/ 1-2 # 10
2 # 16 w/ 1-4 # 14
2 # 16 w/ 1-3 # 12
2 # 16 w/ 1-2 # 10
3 # 16 w/ 1-3 # 14
3 # 16 w/ 1-2 # 10 or 12
4 # 16 w/ 1-2 # 12 or 14
4 # 16 w/ 1 # 10
5 # 16 w/ 1 #14
5 # 16 solid w/ 1 # 10 solid
1# 14 solid w/ 1-3 # 12
1 # 14 w/ 1-2 # 10
2 #14 w/ 1-2 # 122 # 14 w/ 1 # 8 or 10
3 # 14 w/ 1 #10 or 12
3 # 14 w/ 2 # 12
4 # 14 w/ 1 # 12
1 # 12 w/ 1 # 8 or 10
2 # 12 w/ 1 # 10
1 # 22 w/ 1 # 16 & 18
1 # 22 w/ 1-2 # 16 & I # 20
1 # 16 w/ 1 # 10 or 12 & 1-2 # 14
1-2 # 16 w/ 1# 10 & 12
2 # 16 w/ 1-2 #12 & 1 # 14
2 # 16 w/ 1 # 12 & 2 # 14
3 # 16 w/ 1 # 10 or 12 & 1 #14
4 # 16 w/ 1 # 10 & 12
2 # 14 w/ 1 # 10 & 1-2 # 12
2 # 14 w/ 1 # 10 & 12 -
- Sold in packages of 10 units
- UL Listed 600V for dry, wet or above/below grade applications when used in an enclosure.
- For use in Direct Bury applications when operating at 30V or less
- Temperature Rating: 105°C (221°F)
- Silicone Sealant: -45°F to 400°F
- Designed to spliced low voltage tracer or cathodic protection wires
