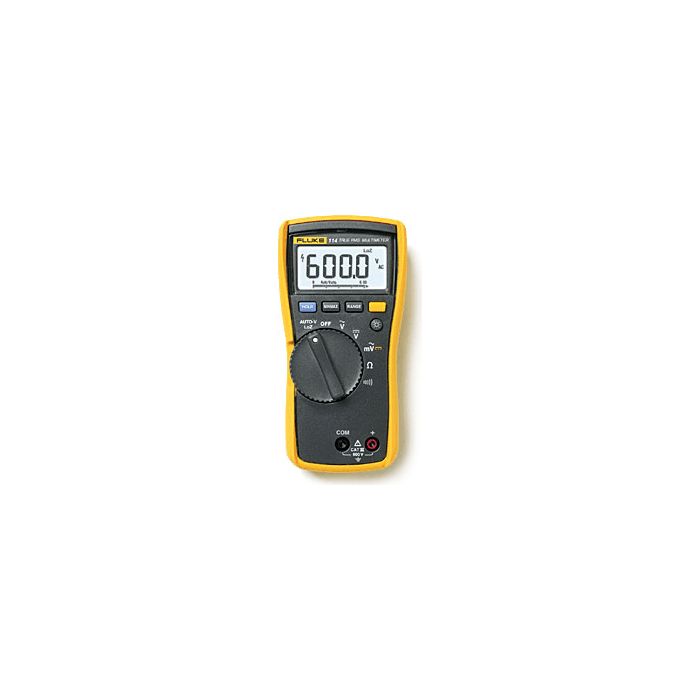

The Fluke 114 Electrical Multimeter, designed by electricians and engineered by Fluke, is a compact True-RMS meter for
electrical troubleshooting. The Fluke 114 is the troubleshooting tool for “go/no-go” testing. It includes a feature to prevent false readings caused by ghost voltage.
Also check out the slightly more expensive Fluke 115 Digital Multimeter, which adds:
Diode test
Capacitance measurement
Lo-Z capacitance measurement
AC True RMS amps to 10A (45 Hz to 500 Hz)
DC amps to 10A
Frequency measurement
Features
AutoVolt: automatic AC/DC voltage selection
Large white LED backlight to work in poorly lit areas
Resistance and continuity
Min / Max / Average to record signal fluctuations
CAT III 600V safety rated
All inputs protected to CE, IEN61010-1 CAT III 600V. UL, CSA, TÜV listed and VDE.
Specifications
Maximum voltage
600V between any terminal and earth ground
Surge protection
6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2
Display
Digital:
6,000 counts, updates 4 per second
Bar graph
33 segments, updates 32 per second
Operating Temperature
-10 °C to + 50 °C
Storage Temperature
-40 °C to + 60 °C
Battery type
9V alkaline, NEDA 1604A/ IEC 6LR61
Battery Life
400 hours typical without backlight
DC millivolts
Range:
600.0 mV
Resolution:
0.1 mV
Accuracy:
± ([% of reading] + [counts]): 0.5% + 2
DC volts
Range/Resolution:
6.000V / 0.001V
Range/Resolution:
60.00V / 0.01V
Range/Resolution:
600.00V / 0.1V
Accuracy:
± ([% of reading] + [counts]): 0.5% + 2
Auto volts
Range:
600.0 V
Resolution:
0.1 V
Accuracy:
2.0 % + 3 (dc, 45 Hz to 500 Hz)4.0 % + 3 (500 Hz to 1 kHz)
AC millivolts true-rms
Range:
600.0 mV
Resolution:
0.1 mV
Accuracy:
1.0 % + 3 (dc, 45 Hz to 500 Hz)2.0 % + 3 (500 Hz to 1 kHz)
AC volts true-rms
Range/Resolution:
6.000 V / 0.001 V
Range/Resolution:
60.00 V / 0.01 V
Range/Resolution:
600.0 V / 0.1 V
Accuracy:
1.0 % + 3 (dc, 45 Hz to 500 Hz)2.0 % + 3 (500 Hz to 1 kHz)
Continuity
Range:
600 Ω
Resolution:
1 Ω
Accuracy:
Beeper on < 20 Ω, off > 250 Ω Detects opens or shorts of 500 μs or longer.
Ohms
Range/Resolution:
600.0 Ω / 0.1 Ω
Range/Resolution:
6.000 kΩ / 0.001 kΩ
Range/Resolution:
60.00 kΩ / 0.01 kΩ
Range/Resolution:
600.0 kΩ / 0.1 kΩ
Range/Resolution:
6.000 MΩ / 0.001 MΩ
Accuracy:
0.9 % + 1
Range/Resolution:
40.00 MΩ / 0.01 MΩ
Accuracy:
5 % + 2
Size
167 x 84 x 46 mm (6.57" x 3.31" x 1.82")
Weight
550 g
Warranty
3 years
Models & Accessories
Fluke 114
Electrical Multimeter. Includes:
Holster
Installed 9V battery
TL75 test leads
User manual
