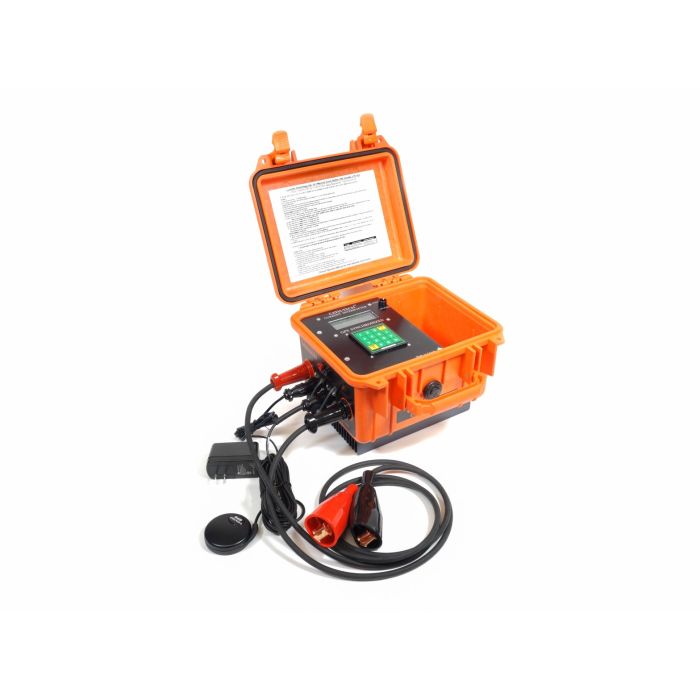

Model CI-50TS Touch Screen Current Interrupter with GPS by Cath-Tech

Features

Portable current interrupter
- GPS continuously synchronized
- Touch screen user interface
- Not polarity or orientation sensitive
- Programmable local time GPS offset
- Battery conserving sleep mode
- Start with OFF or ON
- 5 programmable time schedules
  - Interruption cycle
  - Start and stop times
  - Start and stop dates
- Holds CP power ON or OFF when not interrupting
- SuperCon® output terminals
- Storage compartment for cables and accessories
- Comprehensive 2 year warranty
Included
- CI-50TS Current Interrupter
- AC power adapter; 120/240V AC, 50/60Hz input
- Interruption cables with copper alligator clamps and rubber boots
- Magnet mount GPS antenna
- Operation manual
Technical Specifications
- Capacity : Up to 50A, 150VDC, 100VAC RMS
- Switching: Bidirectional electronic relays
- Case: IP67 / NEMA 4X plastic case with O-ring seal and locking hasp
- Dimensions: 27cm wide, 20cm high, 25cm deep (11” x 8” x 10”) • Weight: 4.6 kg (10 lb)
- Battery: 11.1V 6 Ahr Lithium Ion
- User Interface: 4.3” color LCD capacitive touch screen
- External Power: Accepts 12-30V AC/DC external power to supplement battery life •
- GPS synchronized, with magnet mount antenna for easy placement with view of the sky
  - Cycle time 1 second to 360 seconds
  - Off time: 0- to 9999mSec (synchronized to the beginning of the minute, 0 seconds)
- Non GPS synchronized operation also possible
