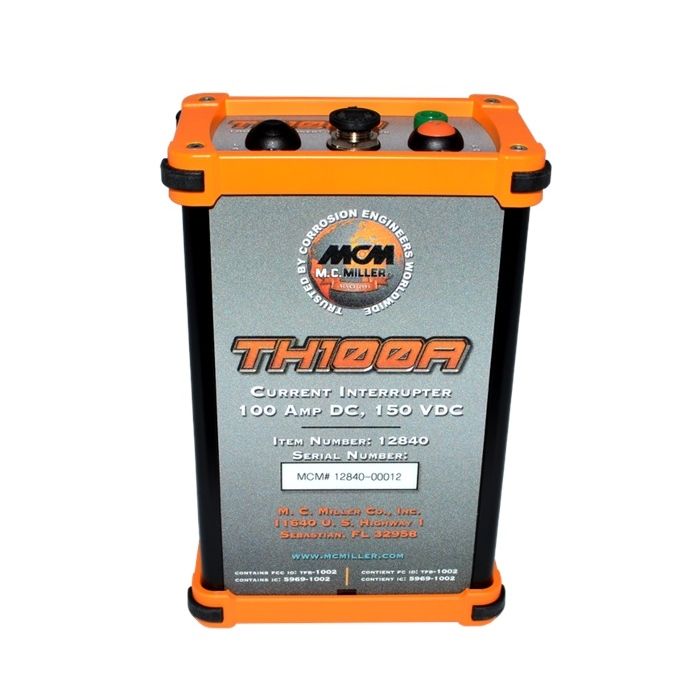

Model TH100A 100 Amp Current Interrupter by M.C. Miller

SKU#: 05-15426
•Compact. Lightweight. Sturdy Construction. Wireless Connectivity Enabled

Attachments

TH100A Current Interrupter 100 Amp User Manual

Description

The TH100A is a modern current interrupter using the latest technology in current control and digital communication.

Capabilities:
- Interrupts 100 A at 150 VDC
- Cool to the touch - even at full rated current
- Can be synced to Cronos, JR-1, or JR-2 units - works with your existing interrupters
- Can provide immediate or scheduled interruption operations
Features:
- Compact, lightweight, sturdy construction
- Wireless Connectivity enabled - can be programmed via simple Android™ application (Lollipop ver 5.1.1 or higher)
- High accuracy Real Time Clock, on/off cycles from 1 millisecond to 6 months
- Powered by 4 user-replaceable AA batteries
Includes:
- New TH100A 100Amp Current Interrupter
- Green 6 Foot Straight Lead with 27-C (40 Amp) Clip (#33910)
- Dual 100 amp Power Cable (#SUB577)
- Sync Cable Assy, TH100A (#12845)
This unit has all the functionality of a 100 Amp interrupter plus the convenience of Wireless Connectivity programmability, as well as M.C.Miller's high quality components and manufacturing standards at a price that will make the office budget happy.
Specifications
On/Off cycles’ accuracy to 1 millisecond, continuing operation shifts less than 1/2 second a day

Relay: Solid State

Battery: (4) Standard AA batteries

Estimated Battery Life: 300hrs @ 4s On/Off Cycle

Temperature Range: Based on alkaline batteries @ -18°C to 55° C

Interrupting Capacity: 100 amps @ 150 V DC

Dimensions: 6.75"L x 4.375"W x 3.75"H

Weight: 2.2 Lb (1 kg)

Auto Turn-On: Main power is manually switched ON/OFF, operation schedule can be pre-set while power is on. Auto Start/Stop based on the pre-set schedule (Start/Stop dates, Start/Stop time)

Synchronize Compatibility: JR-1, JR-2, Cronos

Management Interface: Android™ Application
