Protects the corrosion coating on pipelines from rocky backfill.
Description

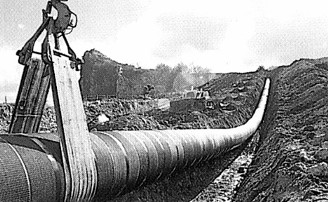

PIPE-GUARD Rock Shield III is a flexible padding designed especially for the protection of the corrosion coating on pipelines when rocky backfill is encountered.
Advantages
PIPE-GUARD Rock Shield III provides the padding required for pipe coatings without the concern of blocking out cathodic protection.
PIPE-GUARD Rock Shield III has a flat interior surface that will not mar soft coatings.
PIPE-GUARD Rock Shield III saves money at every step of the operation through its convenience and ease of application.
PIPE-GUARD Rock Shield III’s flexibility, even at colder temperatures, allows for quick and easy application lengthwise or cigarette wrap using tape or strapping products.
PIPE-GUARD Rock Shield III helps protect the coating from the abrasive movement of the pipe in the ground over long periods.
Availability
PIPE-GUARD Rock Shield III is readily available. It is supplied in a standard roll size of 5’ wide x 100’ roll long weighing 77 lbs.
Benefits
Absorbs impact of uneven backfill
Protects pipe coating from jagged rocks in trench.
Helps prevent abrasions from pipe movement underground.
Protects pipe from future excavations.
Material is lightweight and easy to handle.
Product Data
Parameter
English
Metric
Test Method
Thickness, minimum Nominal
0.145" 0.160"
3.68 mm 4.0 mm
ASTM D4801
Weight, minimum Nominal
0.144 lbs/sq ft 0.155 lbs/sq ft
800 kg/m2 750 kg/m2
Tensile Strength, minimum
2757 lbs/sq in
19.0 N/mm2
ASTM D1682 modified
Toughness (weak strand) Breakload x elongation, min
7
7
Compressive Strength, nominal
200 lbs/sq in
140,000 kg/m2
ASTM D1621 modified
Impact Resistance, limestone drop
Pass
Pass
ASTM G13
Impact Resistance
Rockshield protected
ASTM G14(1)
Type of Coating - no holiday at:
No holiday at:
No holiday at:
Fusion Bonded Epoxy
22.9"
58.2 cm
Polyethylene Tape
21.9"
55.6 cm
Coal Tar Enamel
42.0" (2)
106 cm
Specific Gravity, minimum Maximum
35 lbs/cu ft 43 lbs/cu ft
0.56 g/cm3 0.69 g/cm3
Strand Angle, minimum Maximum
80º 90º
80º 90º
Strand Count, minimum Maximum
3.1/inch 3.7/inch
1.22/cm 1.45/cm
Resin Density, minimum
58.6 lbs/cu ft
0.94 g/cm3
ASTM D1505
Resin Melt Index, minimum
0.22 lbs/ 10 minutes
1.00 g/ 10 minutes
ASTM 1238A
(1) Using at 4 lb weight (2) Maximum height of test apparatus
Description
PIPE-GUARD Rock Shield III is a flexible padding designed especially for the protection of the corrosion coating on pipelines when rocky backfill is encountered.
Advantages
PIPE-GUARD Rock Shield III provides the padding required for pipe coatings without the concern of blocking out cathodic protection.
PIPE-GUARD Rock Shield III has a flat interior surface that will not mar soft coatings.
PIPE-GUARD Rock Shield III saves money at every step of the operation through its convenience and ease of application.
PIPE-GUARD Rock Shield III’s flexibility, even at colder temperatures, allows for quick and easy application lengthwise or cigarette wrap using tape or strapping products.
PIPE-GUARD Rock Shield III helps protect the coating from the abrasive movement of the pipe in the ground over long periods.
Availability
PIPE-GUARD Rock Shield III is readily available. It is supplied in a standard roll size of 5’ wide x 100’ roll long weighing 77 lbs.
Benefits
Absorbs impact of uneven backfill
Protects pipe coating from jagged rocks in trench.
Helps prevent abrasions from pipe movement underground.
Protects pipe from future excavations.
Material is lightweight and easy to handle.
Product Data
Parameter
English
Metric
Test Method
Thickness, minimum Nominal
0.145" 0.160"
3.68 mm 4.0 mm
ASTM D4801
Weight, minimum Nominal
0.144 lbs/sq ft 0.155 lbs/sq ft
800 kg/m2 750 kg/m2
Tensile Strength, minimum
2757 lbs/sq in
19.0 N/mm2
ASTM D1682 modified
Toughness (weak strand) Breakload x elongation, min
7
7
Compressive Strength, nominal
200 lbs/sq in
140,000 kg/m2
ASTM D1621 modified
Impact Resistance, limestone drop
Pass
Pass
ASTM G13
Impact Resistance
Rockshield protected
ASTM G14(1)
Type of Coating - no holiday at:
No holiday at:
No holiday at:
Fusion Bonded Epoxy
22.9"
58.2 cm
Polyethylene Tape
21.9"
55.6 cm
Coal Tar Enamel
42.0" (2)
106 cm
Specific Gravity, minimum Maximum
35 lbs/cu ft 43 lbs/cu ft
0.56 g/cm3 0.69 g/cm3
Strand Angle, minimum Maximum
80º 90º
80º 90º
Strand Count, minimum Maximum
3.1/inch 3.7/inch
1.22/cm 1.45/cm
Resin Density, minimum
58.6 lbs/cu ft
0.94 g/cm3
ASTM D1505
Resin Melt Index, minimum
0.22 lbs/ 10 minutes
1.00 g/ 10 minutes
ASTM 1238A
(1) Using at 4 lb weight (2) Maximum height of test apparatus
